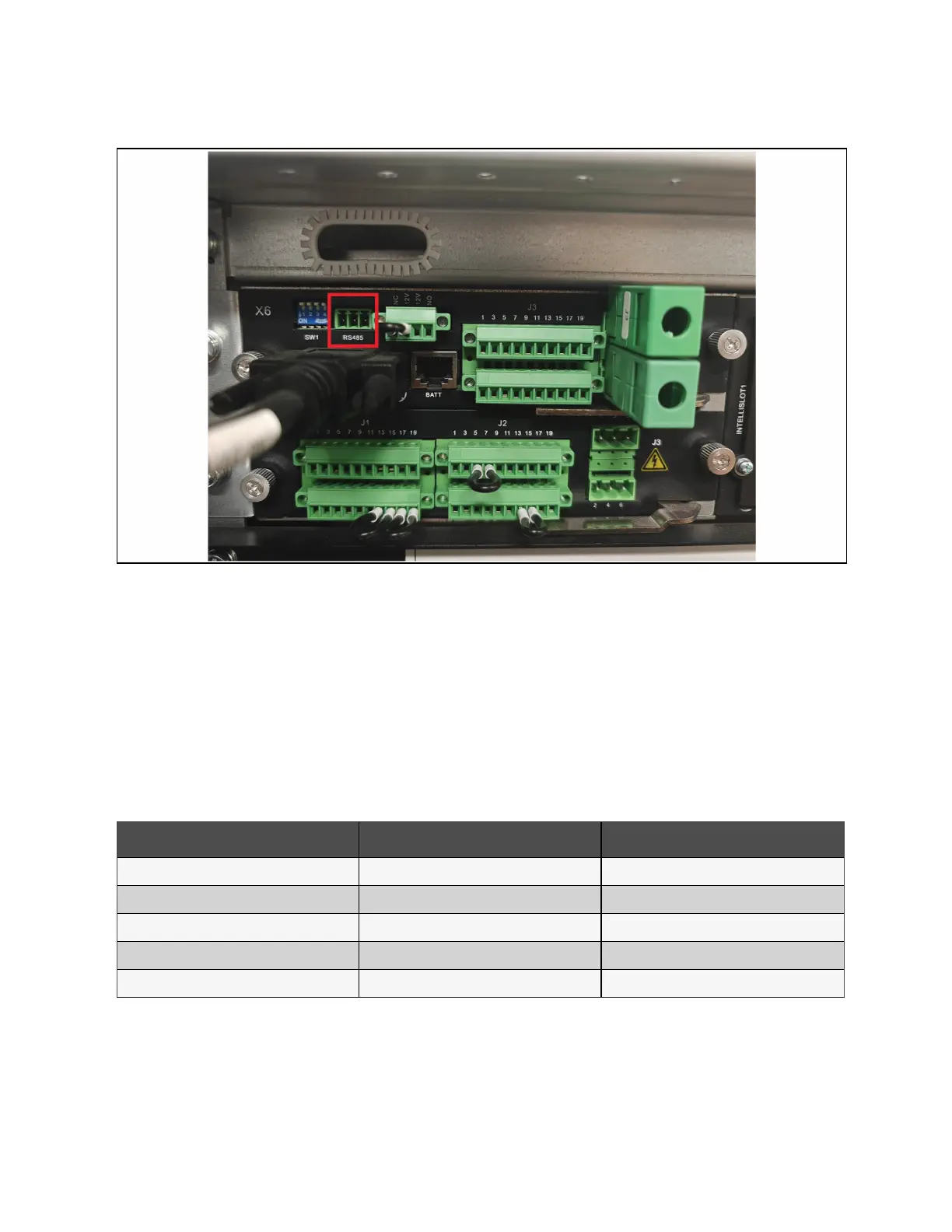

Figure 4.12 RS-485 Communication Port of X6 Board
4.2.9 Parallel and LBS communication ports
See Figure 4.5 on page42 for the positions of the parallel and LBS communication port.
4.2.10 Vertiv™ Liebert® IntelliSlot™ port
The Liebert® APM2 UPS consist of two Liebert® IntelliSlot™ ports which allows field installation of the optional communication
cards, including IS-UNITY-DP card, IS-Relay card, SIC card, and RS-485 card. Table 4.11 below describes the models and
installation positions of the optional cards. For the detailed installation of the optional cards, refer to the respective contents in
the Vertiv™ Liebert® APM2 Option Configurations on page155.
Optional Card Model Installation Position
IS-UNITY-DP card IS-UNITY-DP Intellislot ports 1 to 2
SIC card UF-SNMP810 Intellislot ports 1 to 2
IS-Relay card IS-RELAY Intellislot ports 1 to 2
IS-UNITY-LIFE card IS-UNITY-LIFE Intellislot ports 1 to 2
UF-RS-485 card UF-RS-485 Intellislot port 1
Table 4.11 Models and Installation Positions of Optional Cards
