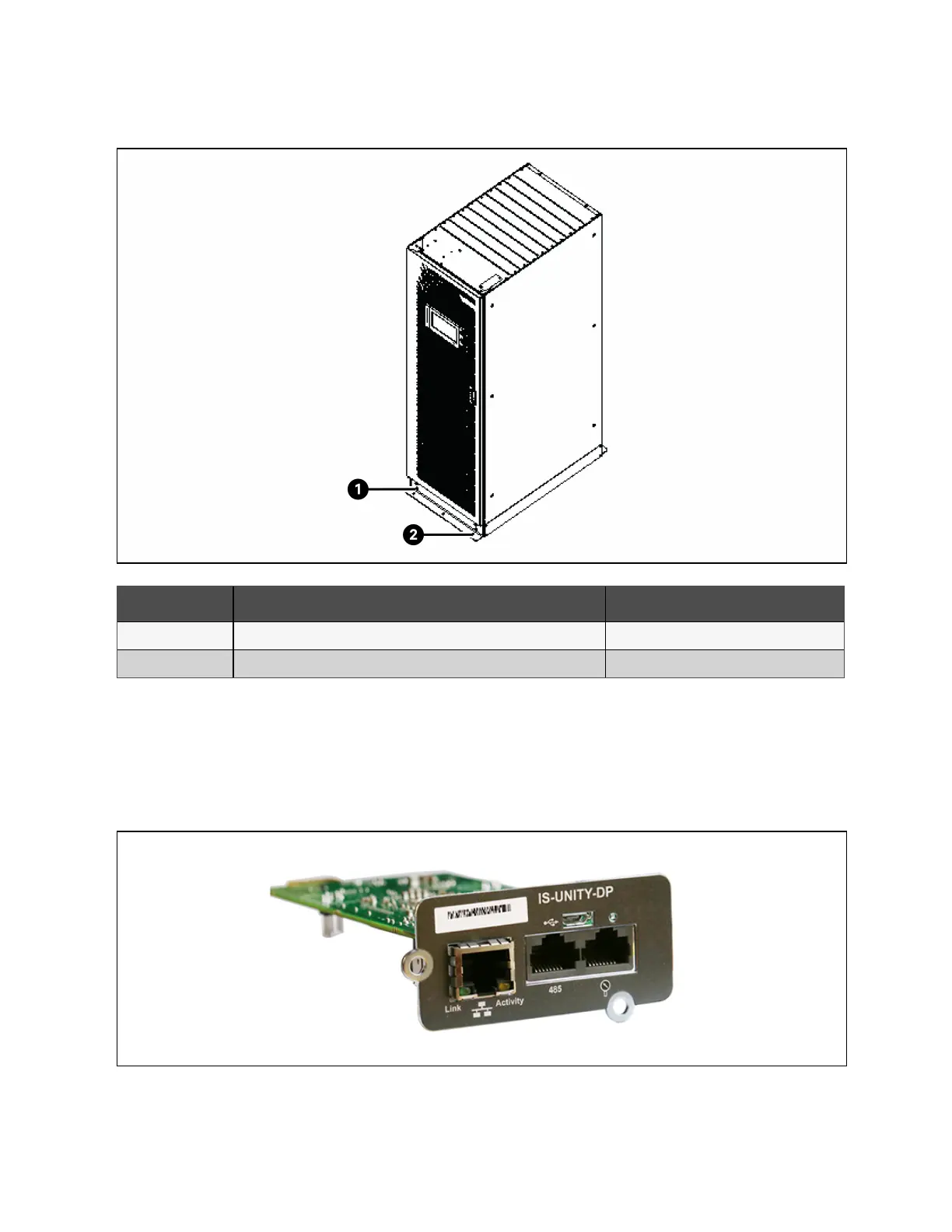

Figure 9.2 Installing Seismic Anchor (Front Installation)
Item Description Quantity
1 M8 x 25 tapping screws 4 PCS
2 M12 expansion bolts 3 PCS
9.2.4 IS-UNITY-DP card
IMPORTANT! It is recommended to use the shielded cables to enhance the Electromagnetic Compatibility (EMC).
The appearance of the IS-UNITY-DP card is shown in Figure 9.3 below.
Figure 9.3 IS-UNITY-DP Card
