3.8 Installation Drawings

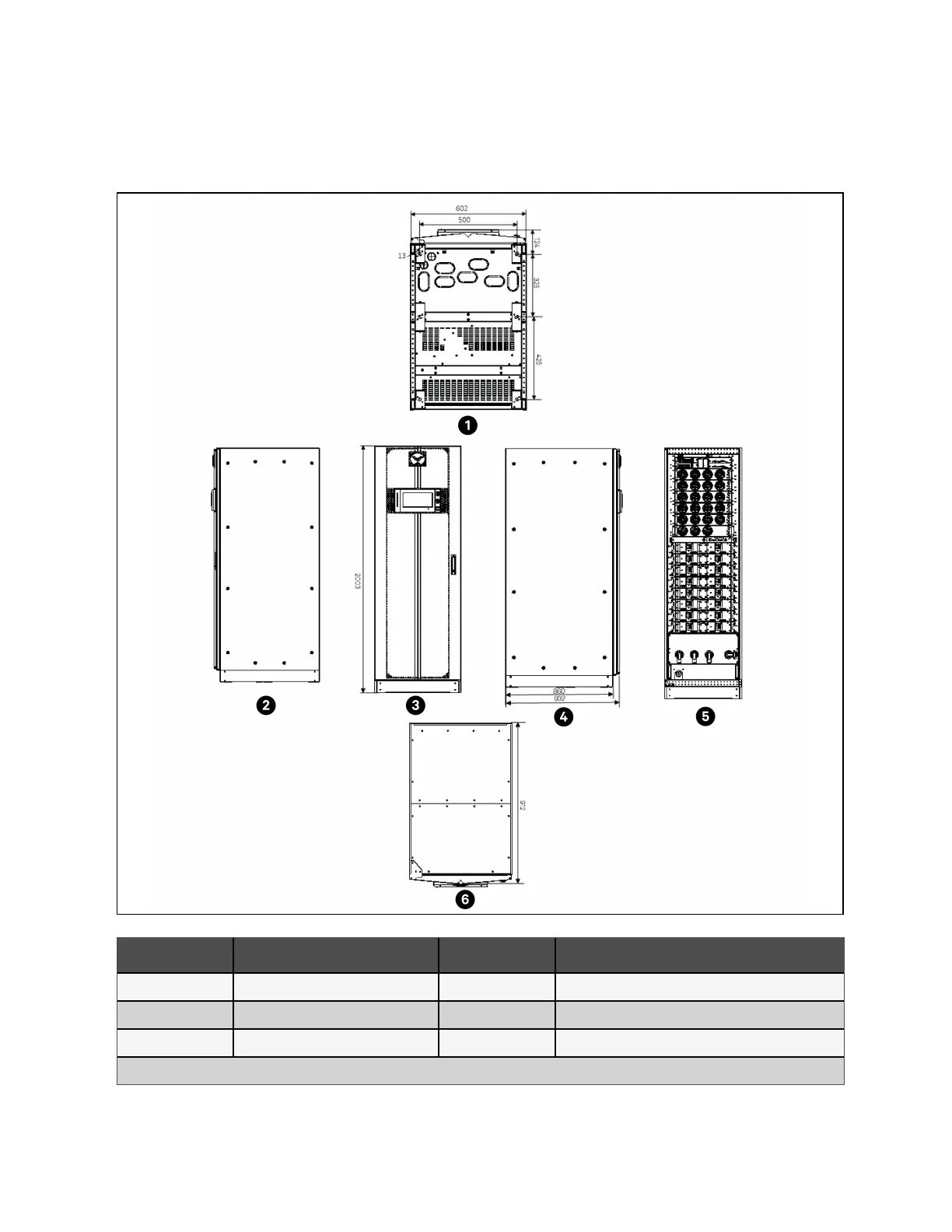

Figure 3.5 Schematic Diagram of Installing 120 kVA UPS
Item Description Item Description
1 Bottom view 4 Left side view
2 Right side view 5 Front view (door opened)
3 Front view 6 Top view
NOTE: All dimensions are in mm.
