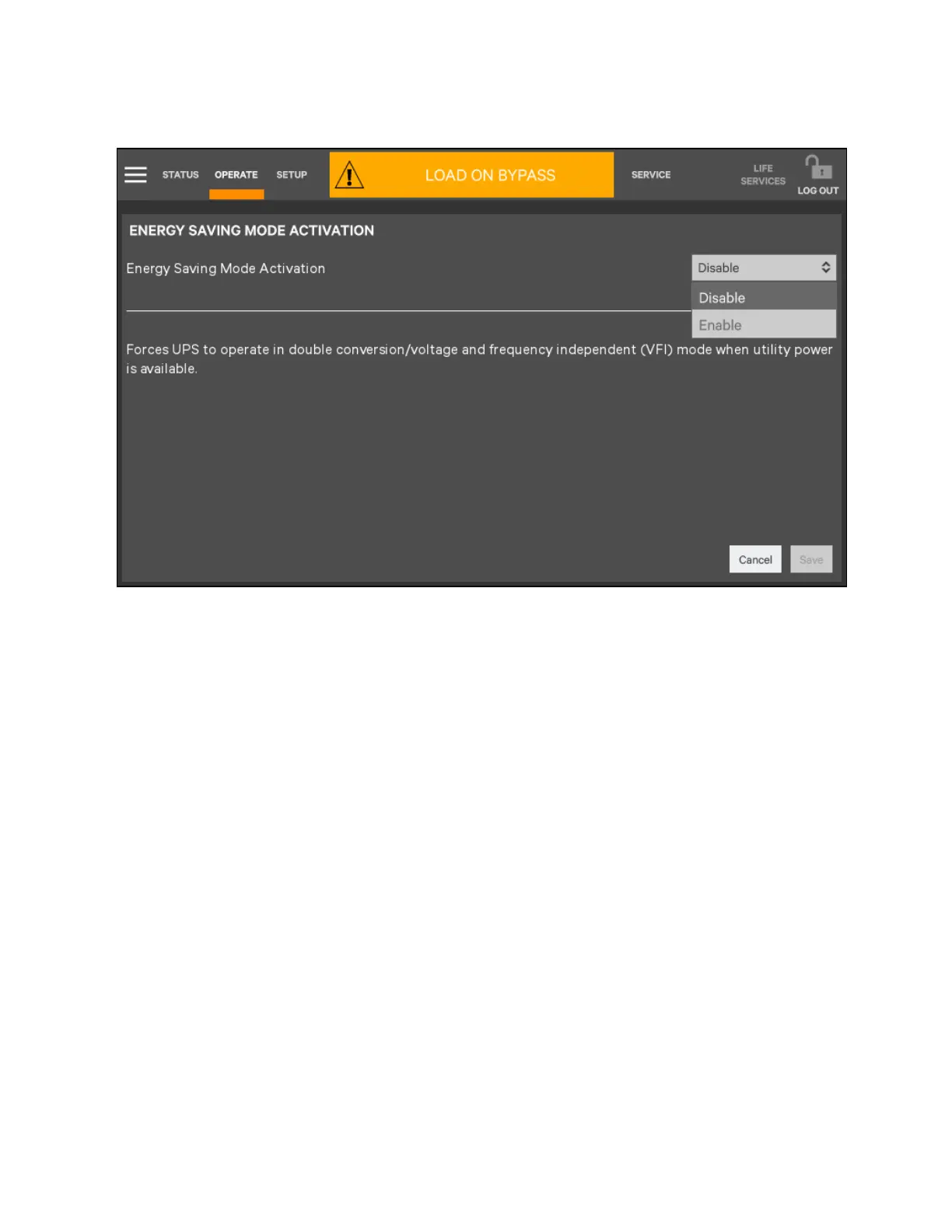

Figure 5.23 Energy Saving Mode Activation
5.4 Viewing UPS Status
The Vertiv™ Liebert® APM2 Touchscreen display reports UPS status in multiple ways. The graphic views and text views will
show the same readings.
Alarms and certain events will trigger audible alarms and the LED on the bezel, the light bar and the status header will change
color. (Audible alarms do not sound unless enabled.) The scrolling information bar at the top of the interface summarizes
information about the UPS status. The Status Gauge on the UNIT STATUS pane gives additional details about the UPS status.
5.4.1 Viewing UPS data with the status gauge
The Status Gauge offers a quick summary of the UPS status. The information shown depends on the type of UPS and its
configuration and upon the choices made in the gauge setup. The data can be chosen by someone with Administrator or
Service access.
The additional data will not replace the information shown in the center of the Status Gauge. Touching the center of the
Status Gauge multiple times on will cycle through the data.
5 Operator Control and Display
Panel
Proprietary and Confidential ©2023 Vertiv Group Corp. 75
Vertiv™ Liebert® APM2 30 to 120 kVA Modular UPS User Manual
