5.5 Viewing UPS Component Status
The graphic screen permits viewing details about the main components installed and configured in the UPS. The data list
opens on the opposite side of the screen and, for most parameters, expands to show all details for the component touched.
The same component information is obtained by selecting Status and then selecting the Components menu.

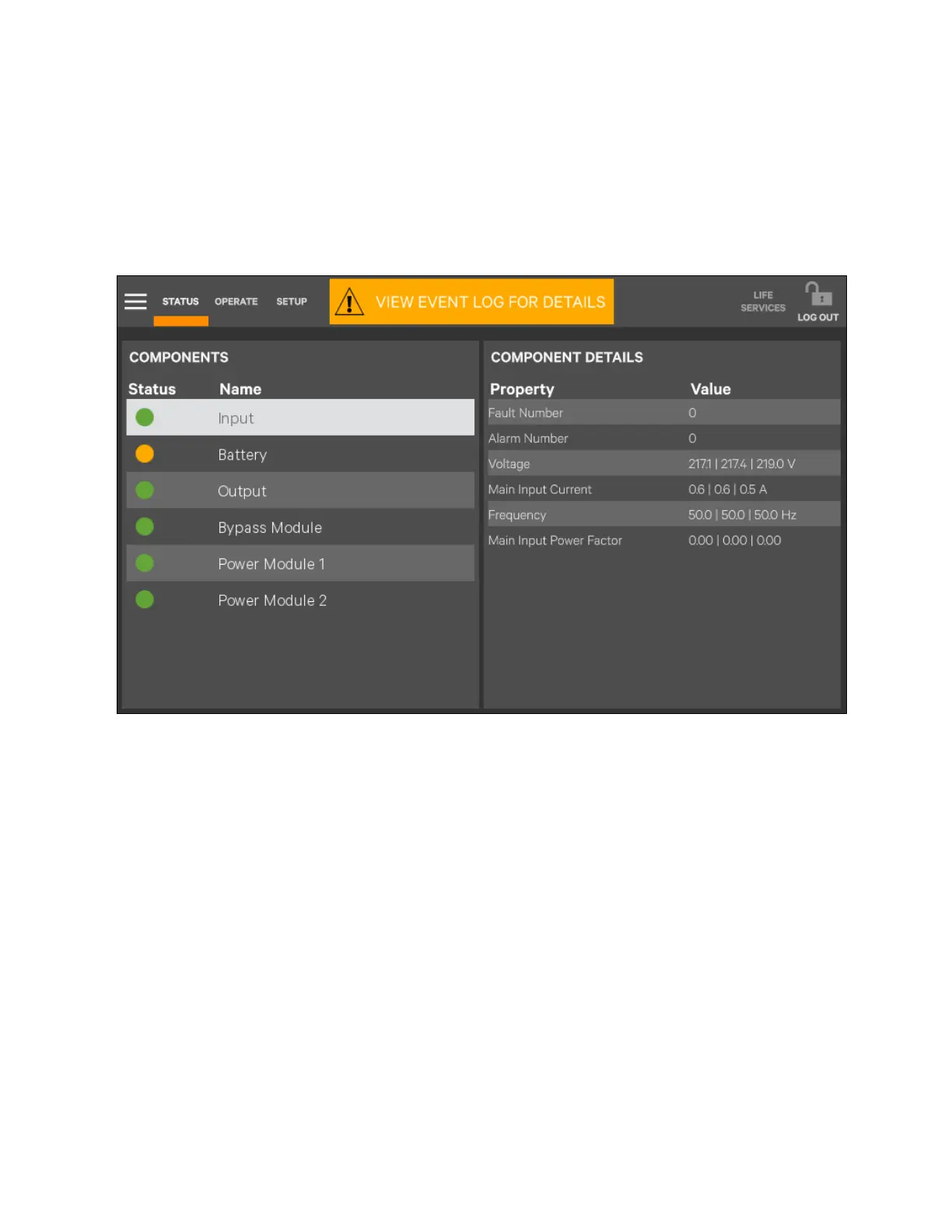

Figure 5.38 Unit Status—Input Details
