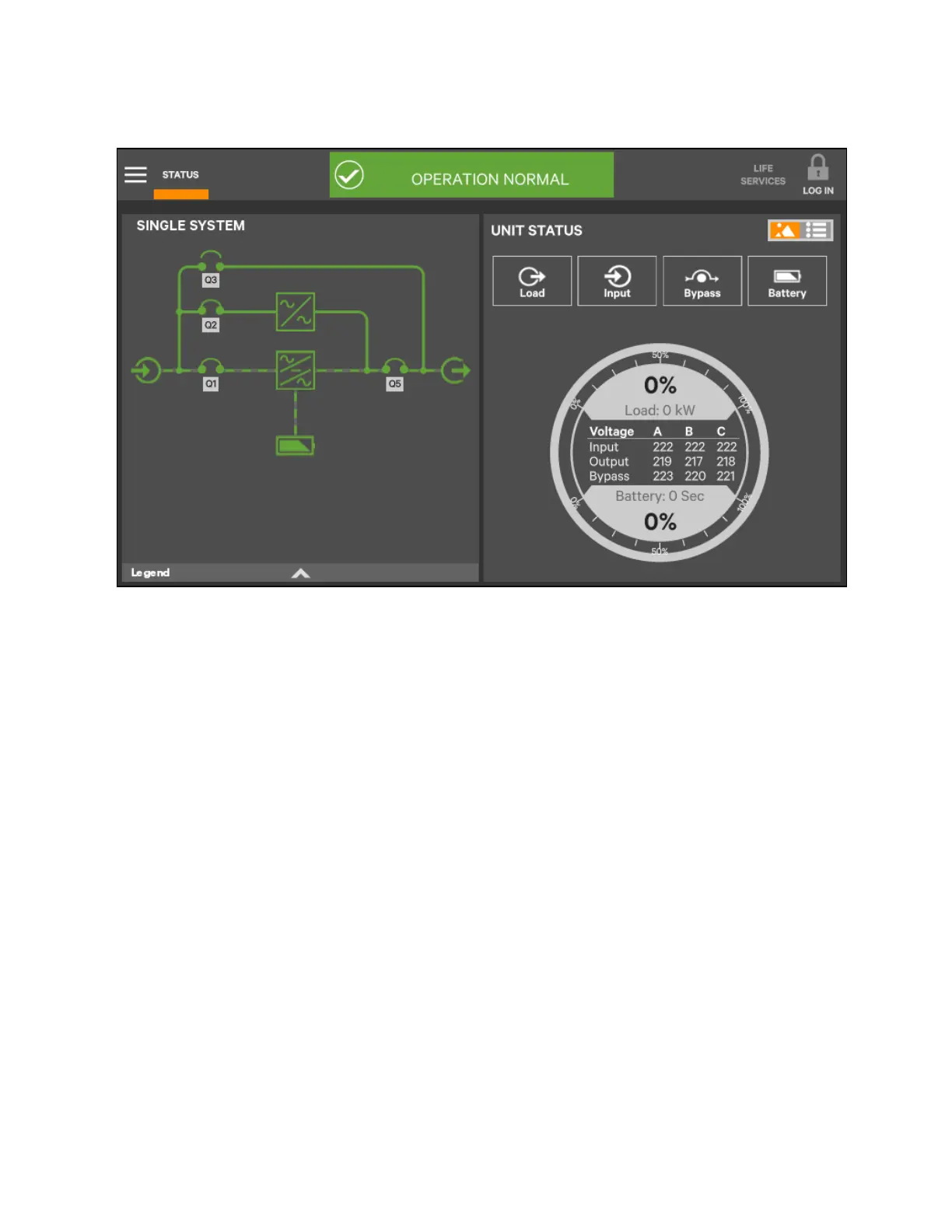

Figure 5.24 Default Status Gauge View
To change the values shown on the Status Gauge:
1. Log in with either Administrator or Service access.
2. Touch the SETUP menu icon.
3. Touch the Context menu icon.
4. Touch Configure Status Gauge. This opens the DIAL CONTROL SETUP pane, which holds settings for the
readings in the center of the gauge and for the upper and lower metering.
To change the data shown in the center of the gauge:
1. Expand the Center Readings menu by touching the arrow beside it.
2. Put a check mark in the check box beside each value to be displayed (see Figure 5.25 on the facing page and
Figure 5.26 on page78).
To change the data shown in the gauge’s upper or lower section:
1. Expand the Upper Meter or Lower Meter menu by touching the arrow beside it.
2. Use the drop down menu to choose whether the Upper Meter or Lower Meter shows data for the Battery or Load.
(Either the upper or lower part of the Status Gauge may be used to show Load or Battery readings.)
3. Use the sliders to change the Warning Threshold or Critical Threshold (see Figure 5.25 on the facing page and
Figure 5.26 on page78).
4. Touch the Save button to keep the changes or touch Cancel to exit without saving the changes.
