To configure your programmable relay boards for user defined settings:
1. Select PROG. RELAY BOARD # x from the Comm Options dialog box, where x is the corresponding board number.
The Prog. Relay Board dialog box is displayed.

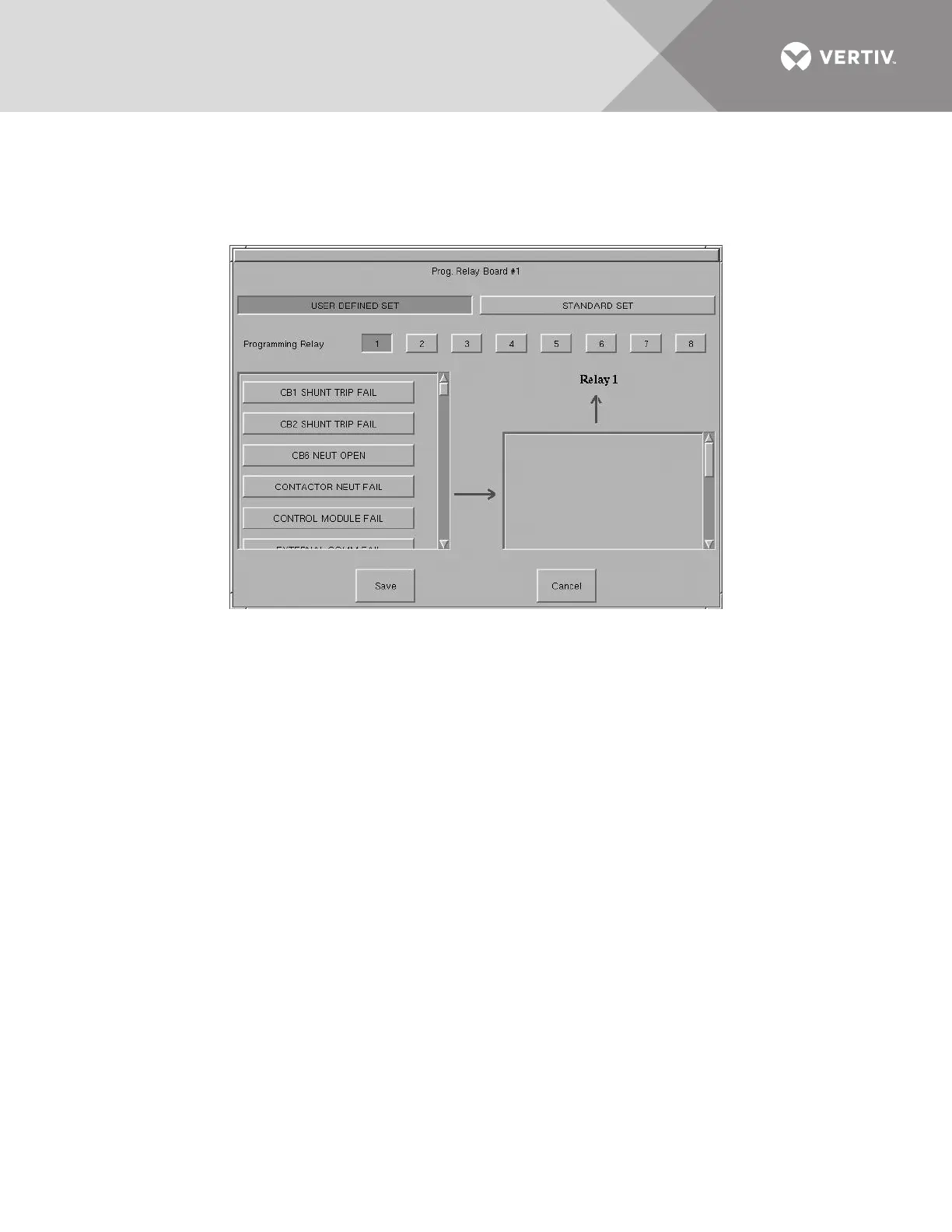

Figure 53 Programmable relay board dialog box
2. Select your configuration settings.
• Select STANDARD SET to use the settings configured at the factory. See Go to step 4.
• Select USER DEFINED SET to configure your own settings. Go to step 3.
If you enter a user-defined setting, record the setting in Programmable Relay Board Settings Record on page 132. If for
some reason the control board is replaced, it will be necessary to reprogram the Programmable Relay Board with this
information.
3. To define your relay board settings:
a. Select a Programming Relay.
b. Select an event you want associated with the relay. That fault is placed in the Relay column.
You can associate up to 10 events with one relay. If you do so, you should group the events logically to simplify
troubleshooting when an event is triggered.
4. Select SAVE to keep the settings.
5. Select OK for the applicable Programmable Options Board option in the Comm Options dialog box to activate the settings.
13.8.3 Configuring the Liebert IntelliSlot
™
SNMP/Web/Modbus 485 Card
An optional Liebert IntelliSlot SNMP/Web/Modbus 485 card can be installed in the Liebert STS2 to provide
Ethernet connectivity via an RJ-45 port.
Ethernet cabling is the responsibility of the customer. Category 5 cabling is required.
See 6.6 - Liebert IntelliSlot
™
SNMP/Web/Modbus 485 Card for more information on the Liebert IntelliSlot
SNMP/Web/Modbus 485 card. See the card’s user guide, SL-52615, for configuration instructions. The guide is
available at the Liebert Web site, www.vertivco.com
If the optional Liebert IntelliSlot SNMP/Web/Modbus 485 card is installed in the Liebert STS2:
• Select YES for the Liebert IntelliSlot SNMP/Web/Modbus 485 card option in the Comm Options dialog box to activate the
card.
