Vertiv Liebert STS2/PDU - Figure 39 Installation Drawing, Seismic Floor Stand 800-1000 A

Vertiv™ | Liebert
®
STS2
™
100-1000A, 50/60Hz User Manual | Rev. 12 | 11/2017 52

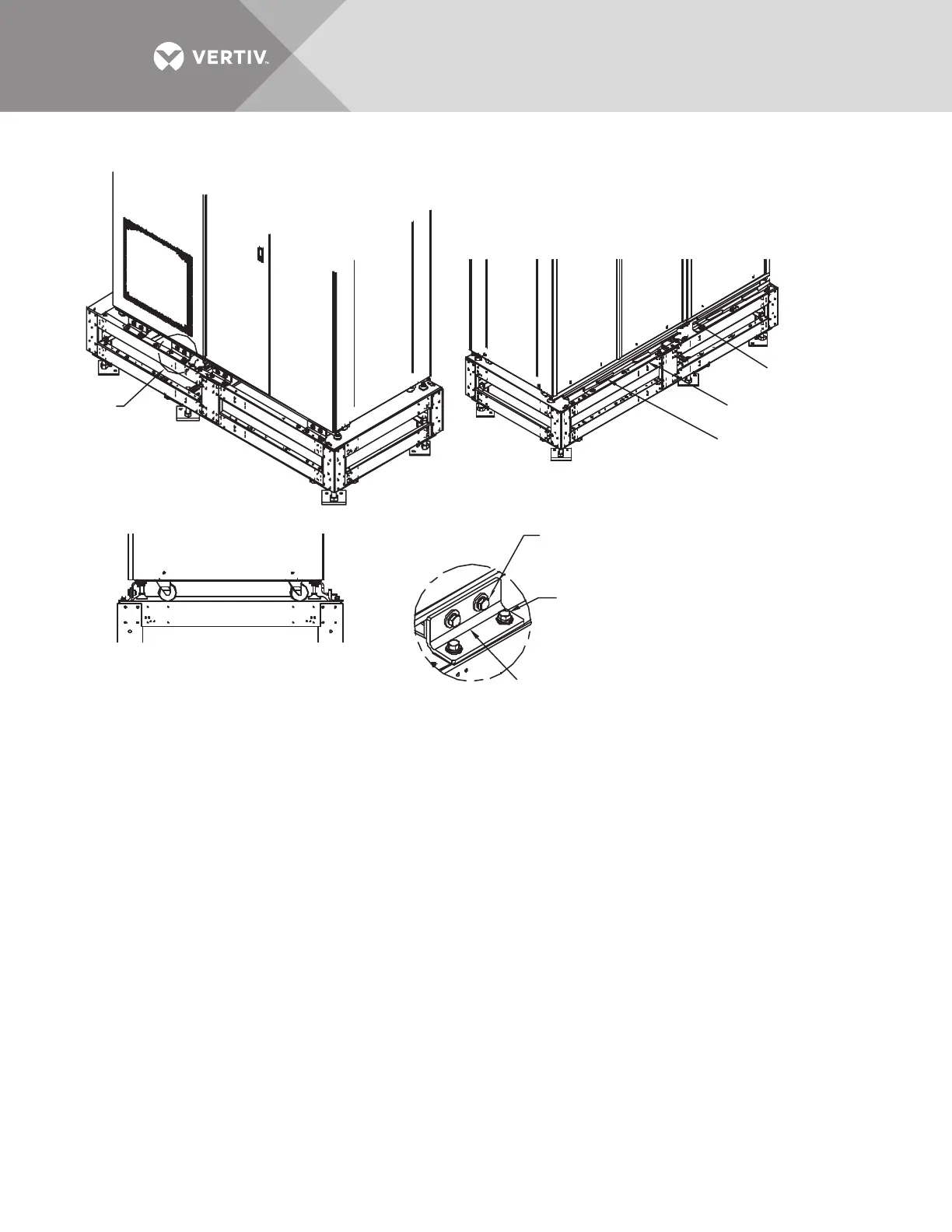

Figure 39 Installation drawing, seismic floor stand 800-1000A
Right Rear Upper
Liebert STS2 Bracket
Upper Rear Bracket Tabs
must slide into Lower Rear
Bracket Slots
Right Rear Lower
Liebert STS2 Bracket
2 Places
Cap Screw M10-1.5x30mm
M10 Split Lock Washer
M10 Flat Washer
2 Places
Cap Screw M10-1.5x30mm
M10 Split Lock Washer
M10 Flat Washer
Lower Front
Bracket
See Drawings PS217000, PS217001
and PS217003 for details.
FIGURE 1
Front Right Isometric View
FIGURE 2
Rear Right Isometric View
FIGURE 3
Right Side
See
Detail A
DETAIL A
4 Places
PS217002
Rev. 1
