Vertiv Liebert STS2/PDU - Figure 7 Outline Drawing: 100 - 250 Amp Liebert STS2 with a Key Lockout Switch Option

Vertiv™ | Liebert
®
STS2
™
100-1000A, 50/60Hz User Manual | Rev. 12 | 11/2017 20

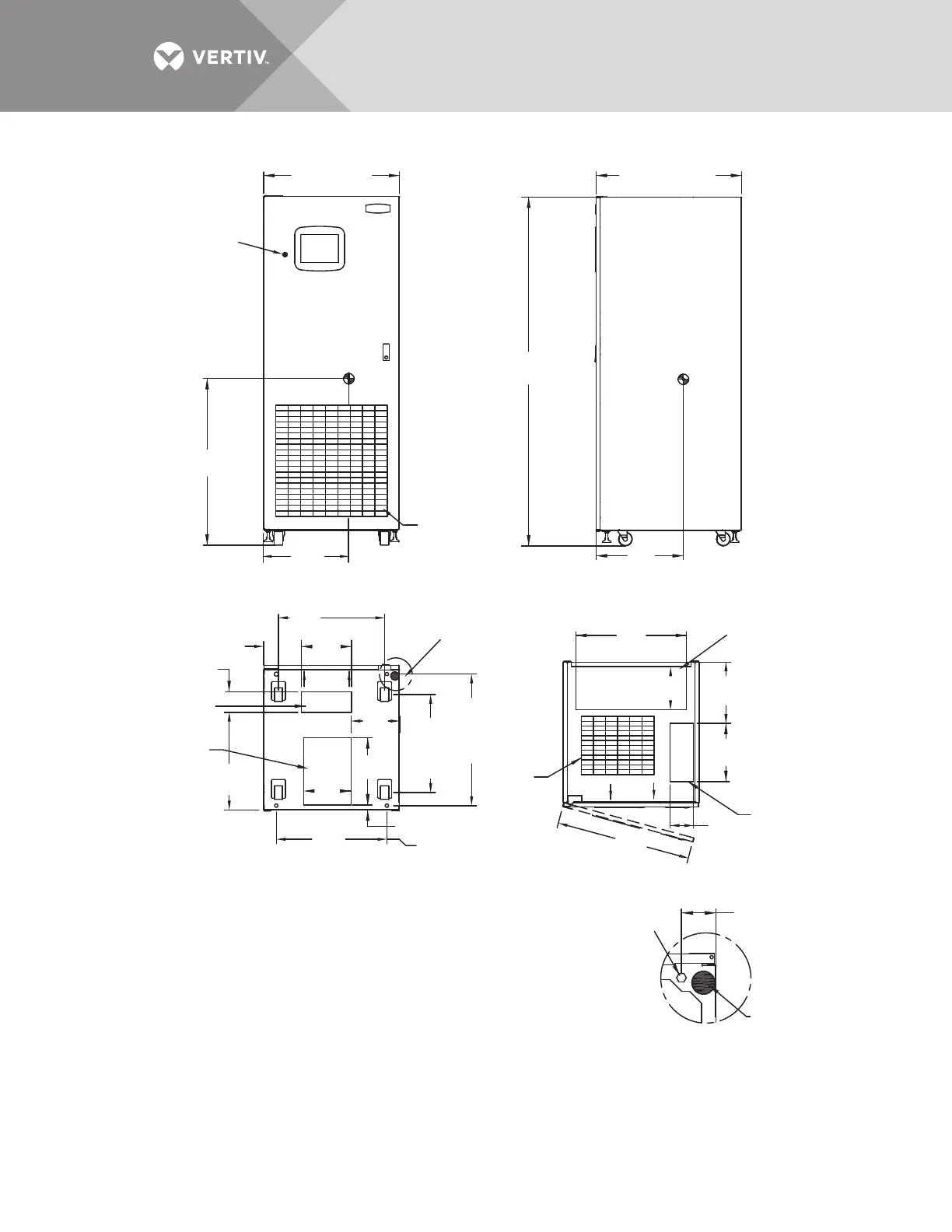

Figure 7 Outline drawing: 100 – 250amp Liebert STS2 with a key lockout switch option
PS211101
Rev. 5
30" (762mm)
Key
Lockout
Switch
36.7"
(932mm)
23.4" (594mm)
Caster Centers
12mm
Centers
29"
(736mm)
12mm Diameter
Mounting Hole
(4 Typically)
See Note 10
12mm
Centers
21.6"
(548mm)
Caster
Centers
12.8"
(326mm)
2.75"
(69.8mm)
Typical
13.5"
(343mm)
29.8"
(756mm)
NOTES
1. 18" (457mm) clearance above unit is required for air exhaust.
2. Clearance of 36" (914mm) is required in the front only for
installation and service access.
3. Heat output: 2710 BTU/Hr (0.80kW) maximum for 100A switch.
4680 BTU/Hr (1.37kW) maximum for 250A switch.
4. Weight: 780 lb. (354kg)
5. Unit bottom is structurally adequate for forklift handling.
6. Keep cabinet within 15 degrees of vertical.
7. Color: Black gray matte
9. Open door to replace air filter, disposable type 1"x25"x25"
(25.4 x 635 x 635mm).
10. Threaded mounting holes (see Detail A) are provided for seismic
anchoring or floor stand. Mounting bolts must be threaded into
the unit from underneath the unit base. If a floor stand is used,
the casters must rest on the floor stand to support the unit's weight.
32.1" (815mm)
77"
(1956mm)
18.8"
(477mm)
11.1"
(280mm)
1.1"
(28mm)
5.1"
(130mm)
10.4"
(265mm)
14.8"
(376mm)
10.7"
(272mm)
24.4"
(619mm)
9.4" (238mm)
21.5"
(546mm)
19.2"
(488mm)
24.4"
(620mm)
Center
of
Gravity
Center
of
Gravity
Air Intake Area
Do Not Block
Air Filter
FRONT
FRONT
FRONT
SIDE
TOP
BOTTOM
DETAIL A
Front of Unit Shown
Without Side Panel
See
Detail A
Power Cable
Bottom Entry Area
Control Cable
Bottom Entry Area
Power Cable
Top Entry Area
Control Cable
Top Entry Area
Maximum Door
Swing 180º
Air
Exhaust
Leveler
8.4" (23.4mm)
4.6" (116mm)
