Vertiv Liebert STS2/PDU - Figure 34 Installation Drawing, Seismic Floor Stand 400-600 A

Vertiv™ | Liebert
®
STS2
™
100-1000A, 50/60Hz User Manual | Rev. 12 | 11/2017 47

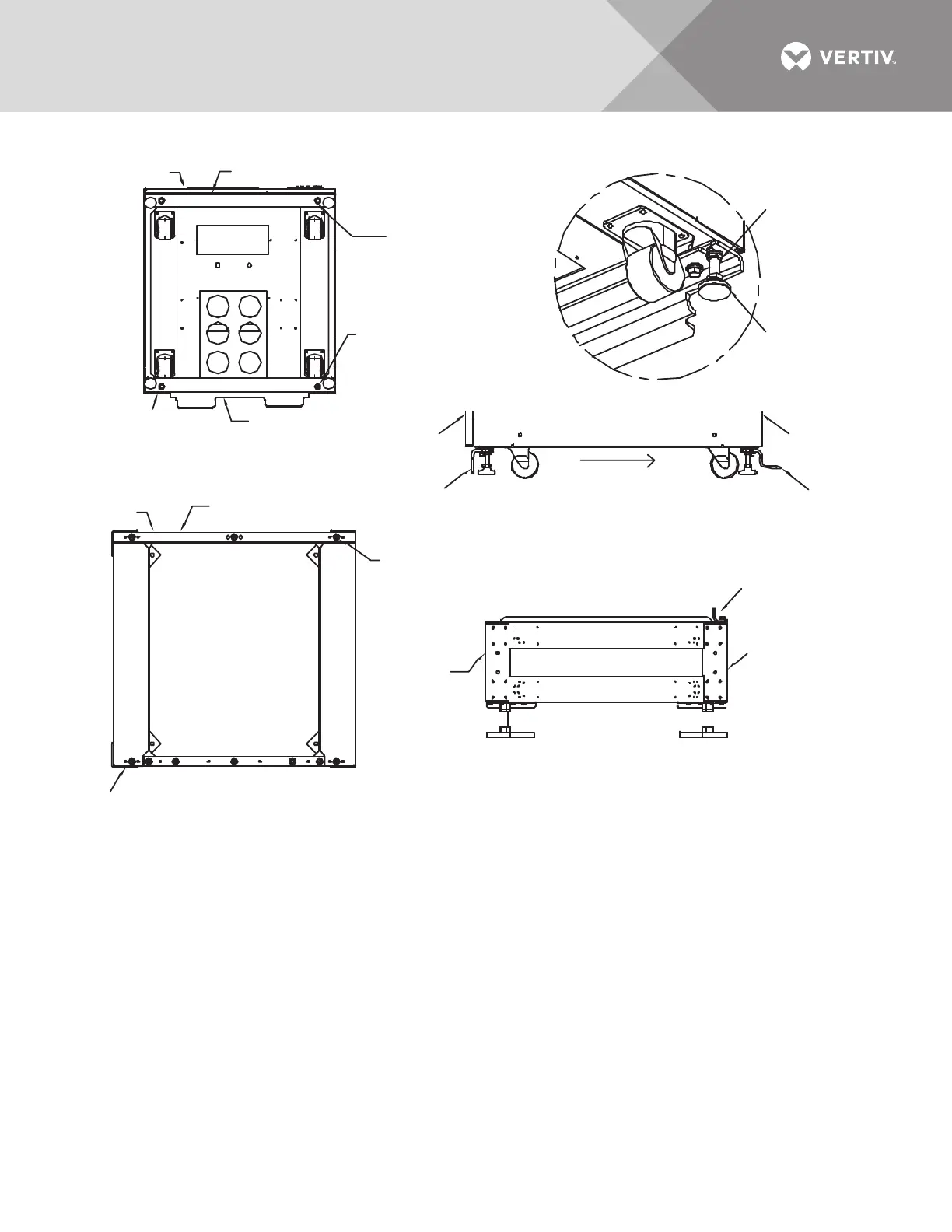

Figure 34 Installation drawing, seismic floor stand 400-600A
PS216001
Rev. 1
Front
Rear
Rear
Front
Front Upper
Liebert STS2
Bracket
DETAIL C
Front
Front
Front Upper
Liebert STS2 Bracket
Rear Lower
Liebert STS2 Bracket
Rear Upper
Liebert STS2
Bracket
FIGURE 1
Bottom of Liebert STS2
with Upper Brackets
FIGURE 4
Top of Floor Stand
with Lower Rear Mounting Bracket
FIGURE 2
Right Side of Liebert STS2 with Upper Brackets
FIGURE 3
Right Side of Floor Stand
with Lower Rear Mounting Bracket
Rear
Side
2 Places
Cap Screw M12-1.75x40mm
M12 Split Lock Washer
M12 Flat Washer
See Detail C
2 Places
Cap Screw M12-1.75x40mm
M12 Split Lock Washer
M12 Flat Washer
3 Places
Cap Screw M12-1.75x40mm
M12 Split Lock Washer
M12 Flat Washer
Rear Lower
Bracket
Leveling
Foot
Nut
Leveling
Foot
See Drawings PS216000, PS216002 and PS216003
for details.
Rear Upper Liebert STS2 Bracket
Rear
