13.0 LIEBERT STS2 TOUCHSCREEN DISPLAY
The Liebert STS2 can be configured with a Color Graphical LCD touchscreen that allows you to quickly check
the status of the unit and identify problems.
A touchscreen LCD is available through the front of the Liebert STS2. This screen provides a graphical (Mimic)
display of the switch’s operation, plus system information including system parameters, alarms and faults.
The LCD provides a color, back-lit touchscreen as a user interface. In addition to the Mimic and the system
parameters, the screen provides a series of menus to allow you to configure the Liebert STS2, including the
control of the preferred source, auto/manual retransfer selection, alarm notification, and other system setpoints.
The touchscreen also provides buttons to reset alarms and turn Off audible alarms, such as a horn.
13.1 Display Overview
The Liebert STS2 Color Graphical Display provides three areas of information, plus buttons and a series of menu
choices.
The Color Graphical Display contains the following features:
• Mimic — a graphical diagram of the status of the unit.
• Event controls — allow you to reset alarms and turn Off audible alarms.
• Event Display — displays any active alarm or fault condition, in real-time.
• Menus — provide choices and configuration settings in dialog boxes or information in the display panel.
• Display panel — provides additional information, depending on the menu choice that was last selected. This information
includes event help text and startup and bypass procedures.

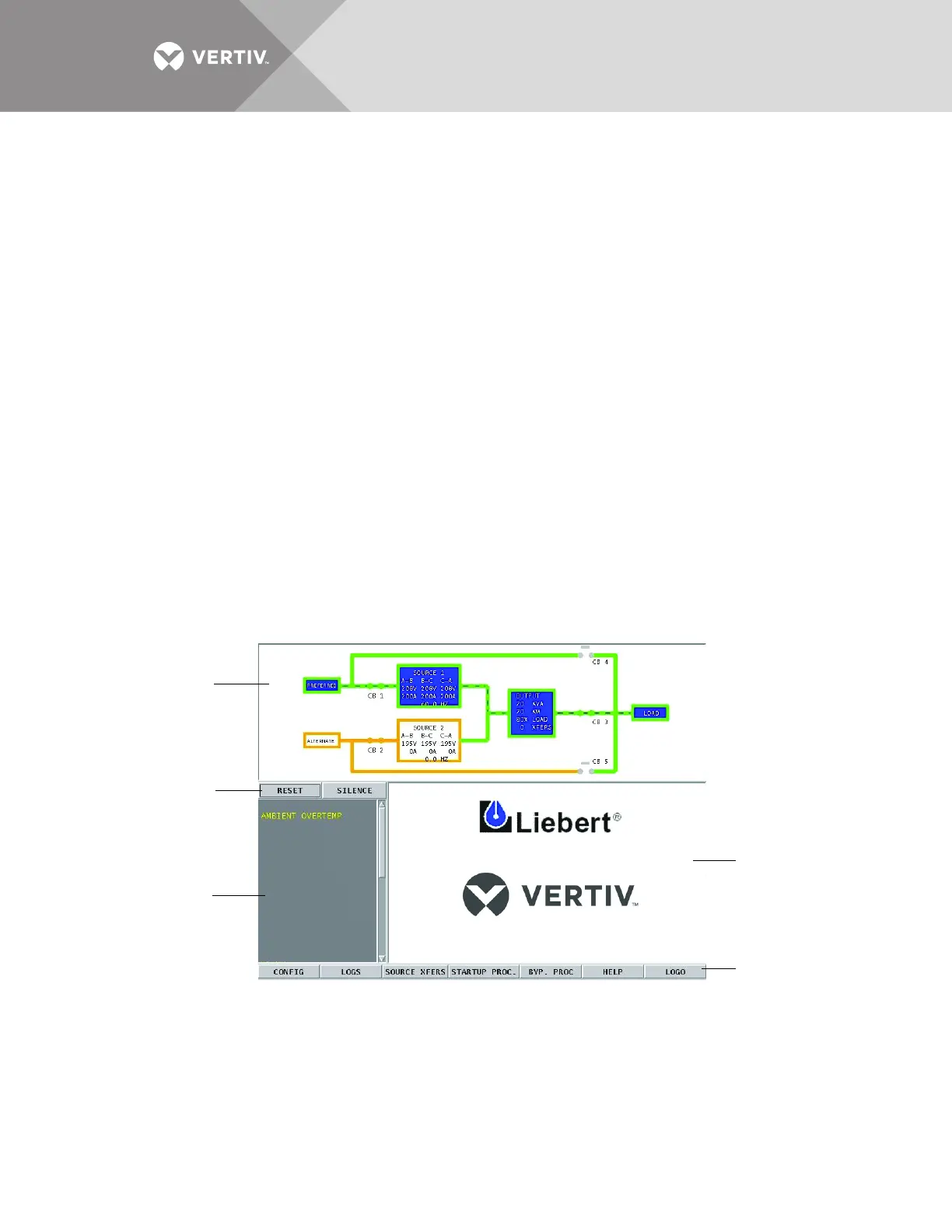

Figure 44 Liebert STS2 touchscreen display
Mimic
Event Display
Event Controls
Display Panel
Menu Options
