Vertiv Liebert STS2/PDU - Figure 40 Installation Drawing, Seismic Floor Stand 800-1000 A

Vertiv™ | Liebert
®
STS2
™
100-1000A, 50/60Hz User Manual | Rev. 12 | 11/2017 53

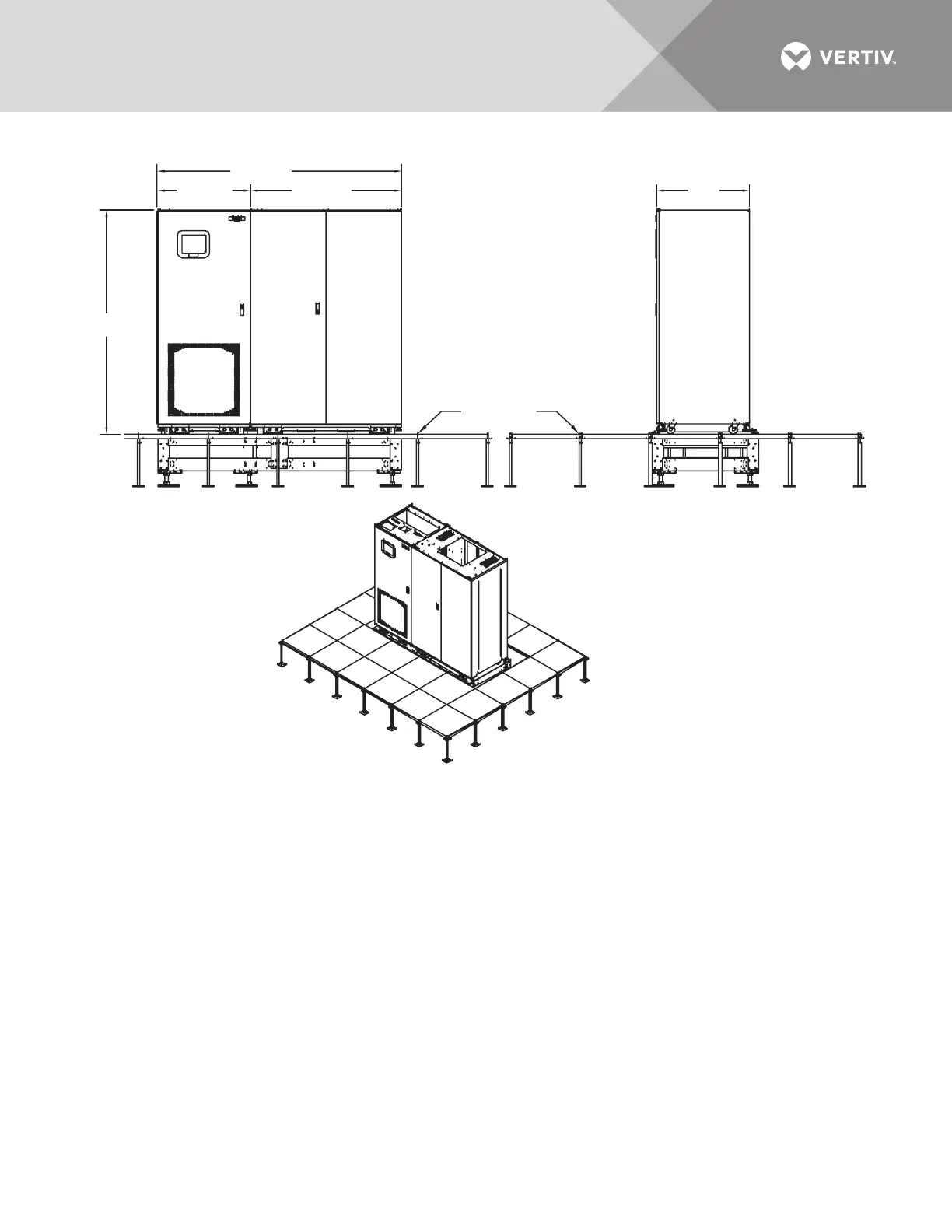

Figure 40 Installation drawing, seismic floor stand 800-1000A
84" (2134mm)
77"
(1956mm)
32.1"
(815mm)
Raised Floor
FRONT
RIGHT SIDE
ISOMETRIC VIEW
32" (813mm) 52" (1321mm)
PS217003
Rev. 1
See Drawings PS217000, PS217001 and PS217002 for details.
