1.75"
(44mm)
Typ.
1.75" (44mm)
Typ.
1/2" - 13
PEM Nut
1.75" (44mm)
Typ.
1.75"
(44mm)
Typ.
0.91"
(23mm)
Typ.
1.2" (30mm)
Typ.
Ground
Bus
Neutral
Bus
Source 1
Input ØA
Source 1 Input
ØA, ØB, ØC
Source 2 Input
ØA, ØB, ØC
Source Output
ØA, ØB, ØC
Source 1
Source 1
Input ØB
Source 1
Input ØC
Source 1
Input ØC
Source 2
System Output

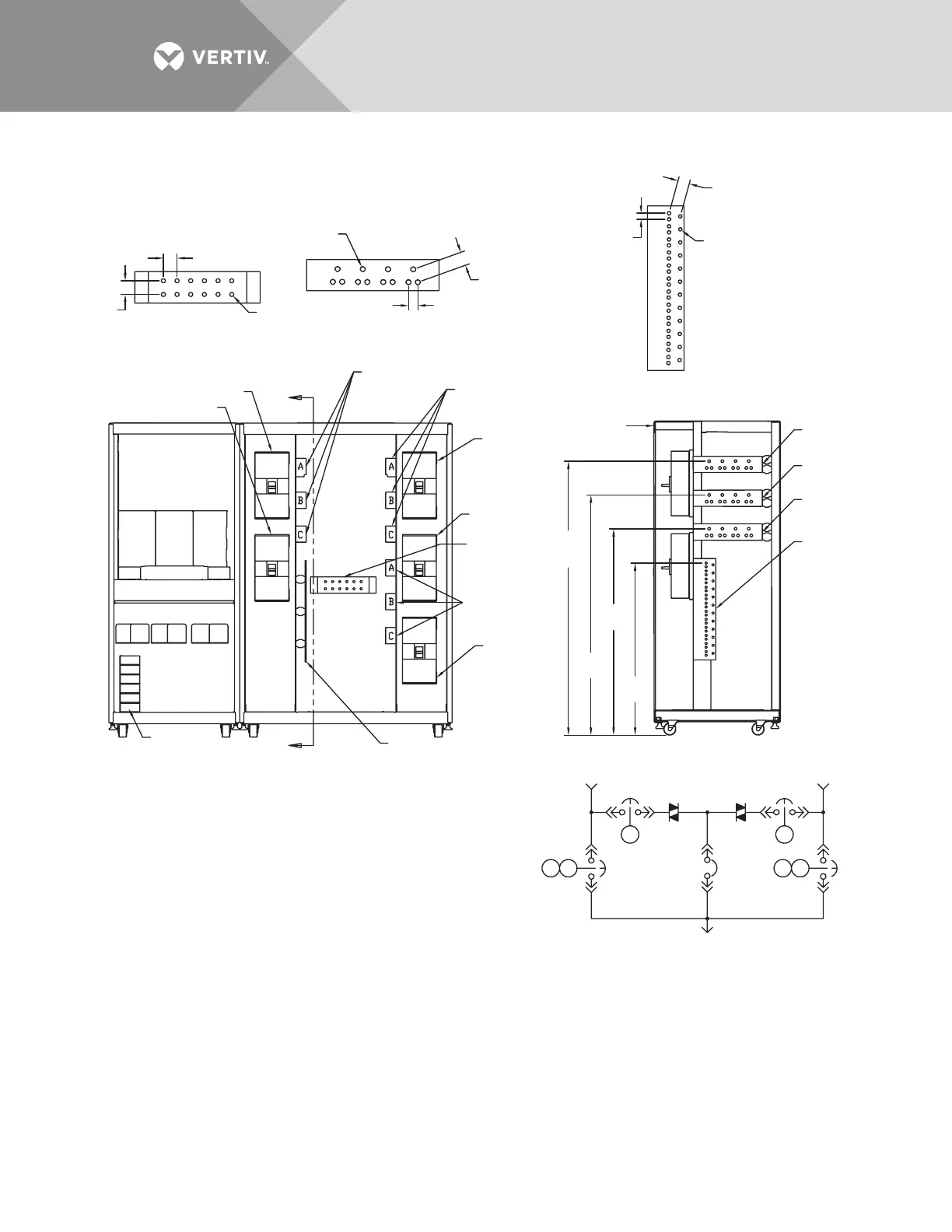

ONE-LINE DIAGRAM
INPUT/OUTPUT BUS
Right Side
GROUND BUS
Front
FRONT
(Panels Removed)
CB1
CB1
CB4
CB4
CB3
CB2
CB2
CB5
CB3
CB5
K1
K1
K2
K2
K3
K3
PS212800
Rev. 6
NOTES
1. Top and bottom cable entry available through removable access plates.
Remove, punch to suit conduit size and replace.
2. Control wiring and power wiring must be run in separate conduit.
Output cables should be run in a separate conduit from input cables.
3. Use copper or aluminum wire (Cu-Al, Al-Cu) or equivalent.
4. All wiring must be in accordance with national and local electrical codes.
5. Hardware kit is supplied for input, output, neutral and ground cable
connections. Kit includes 1/2" bolts, washers and nuts for connecting
cables to the busbars.
6. The torque requirement for 1/2" - 13 PEM nuts is 428 in./lb (48Nm).
A
Front
NEUTRAL BUS
Right Side
SECTION A-A
Side View
Ø 0.51"
(13mm)
Typ.
Ø 0.51"
(13mm)
Typ.
67.2"
(1707)
50.6"
(1285)
58.9"
(1488)
42.2"
(1072)
A
Option Box
Refer to
PS213800
