Notes:
1. Wire size and type: 10/100 base-T ethernet cable with RJ-45 plug connector.
The length is limited by internet standards.
2. Maximum cable length 1000 feet (300 meters) with twisted pair cable #22 AWG
minimum. Signal voltage 5VDC, current 10mA.
3. Refer to the Liebert IntelliSlot Web/485 Card’s user manual for configuration details.
4. All control wiring (by others) must be run separate from power wiring. Control wiring runs
should not be combined in the same conduit.
5. Refer to control connection location diagram of static transfer switch for location of Liebert
IntelliSlot Web/485 card option.
6. All wiring must be in accordance with national and local electrical codes.

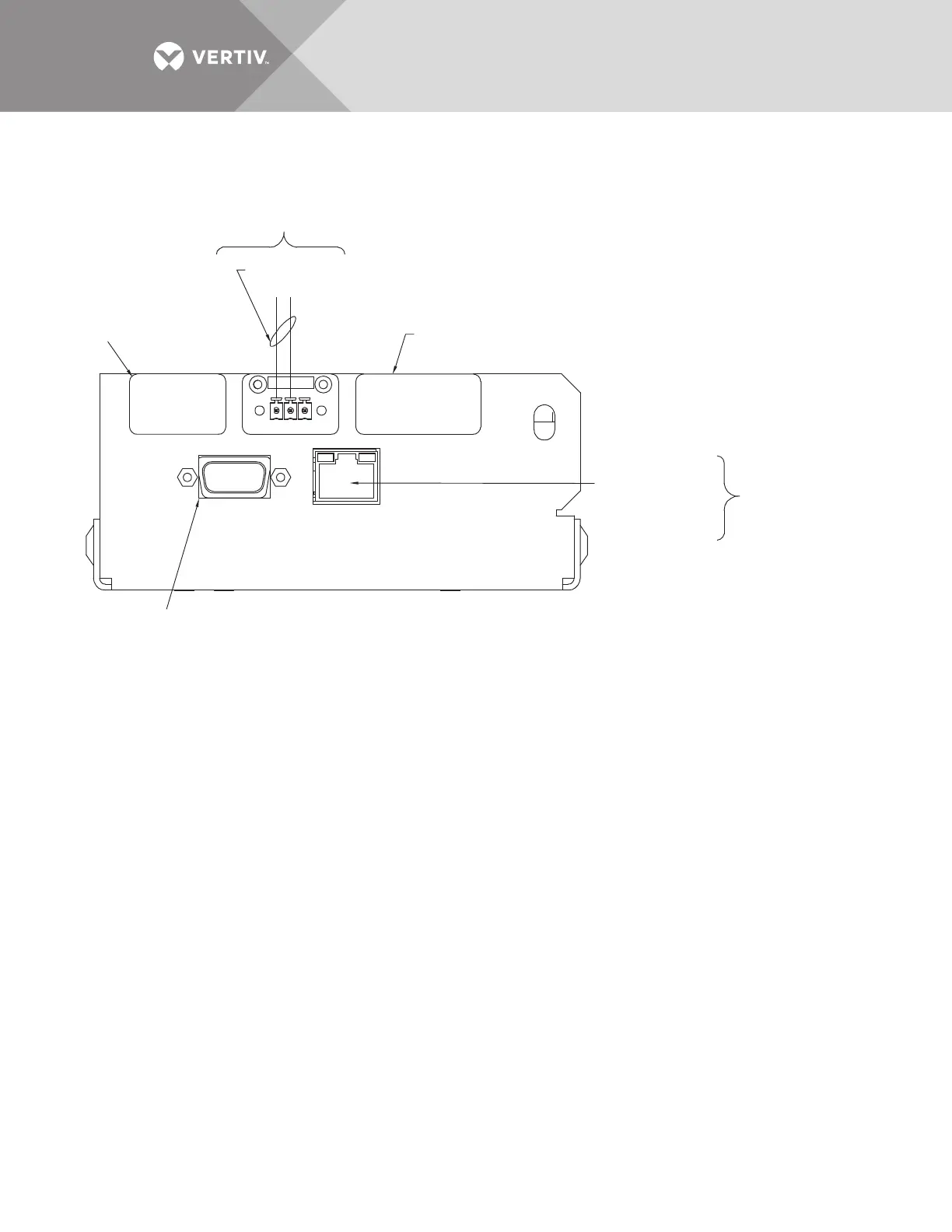

Customer-supplied
interconnection cable
to Modbus 485
See Note 2
No customer
connection
No customer
connection
RS-232 (DB-9 connector)
for setup only. Uses standard
computer serial port cable
Ethernet Network
RF-45 Connector
See Notes 1 and 2
Customer-Supplied
Interconnection
Cable:SNMP
(Web/HTTP)
TB3
TB2
TB1
DB-9
J3
PS213008
Rev. 3
