Vertiv Liebert STS2/PDU - User Settings

Vertiv™ | Liebert
®
STS2
™
100-1000A, 50/60Hz User Manual | Rev. 12 | 11/2017 86
To set the event masks:
1. Access the Event Mask dialog box:
a. Select CONFIG.
b. Select EVENT MASK from the pop-up menu.
The Event Mask dialog box is displayed. See Figure 48.
2. Select the mask settings for each fault and alarm.
a. Select YES to enable the setting,
– or –
b. Select NO to disable the setting.
3. Select SAVE to keep the settings.

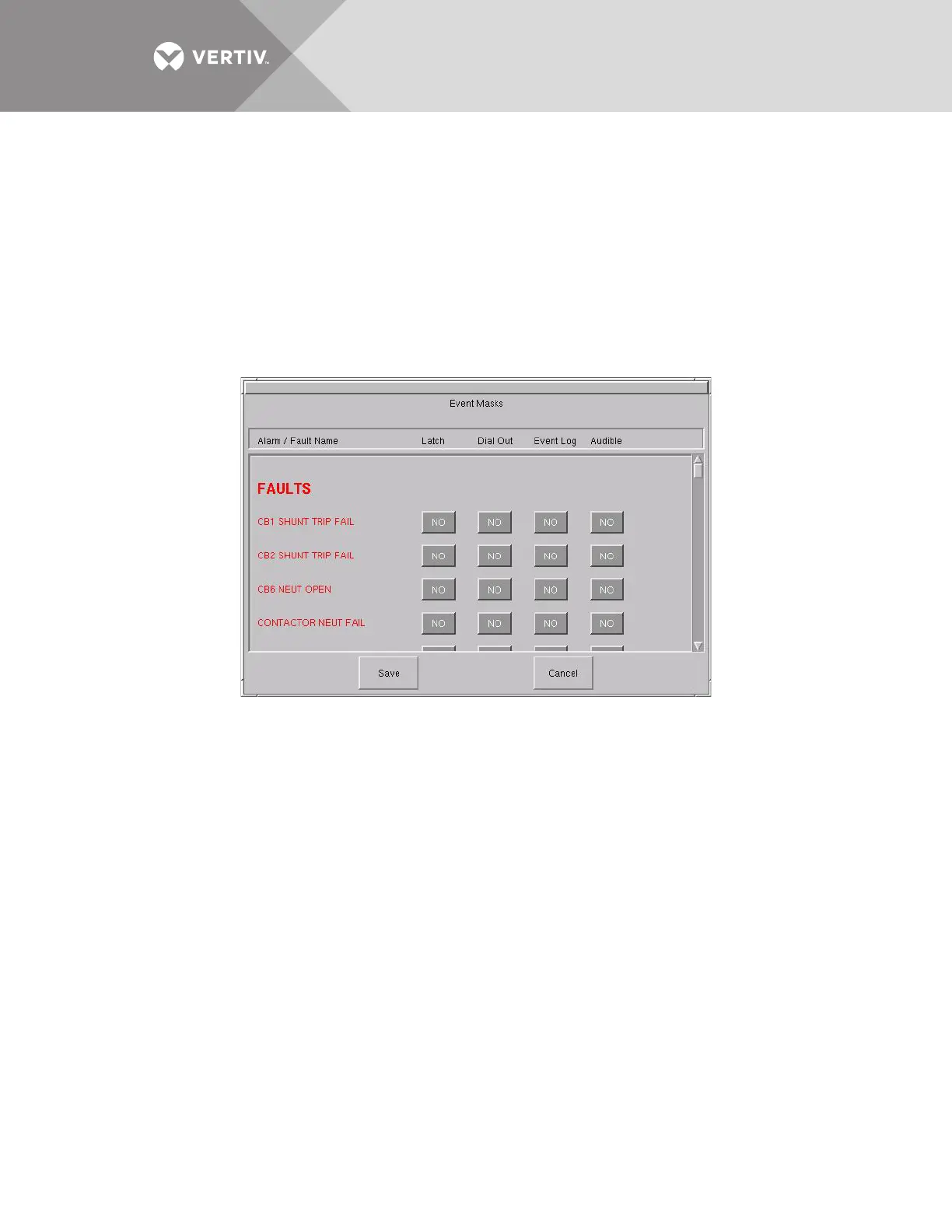

Figure 48 Event mask dialog box
13.7.3 User Settings
The User Settings choice allows you to adjust the user-accessible switch settings. Access is limited to qualified
personnel via system security.
To access the User Settings dialog box:
1. Select CONFIG.
2. Select USER SETTINGS from the pop-up menu.
The User Settings dialog box is displayed. See Figure 49. The top six buttons access a series of secondary
dialog boxes to configure the various settings.
