Vertiv Liebert STS2/PDU - Figure 35 Installation Drawing, Seismic Floor Stand 400-600 A

Vertiv™ | Liebert
®
STS2
™
100-1000A, 50/60Hz User Manual | Rev. 12 | 11/2017 48

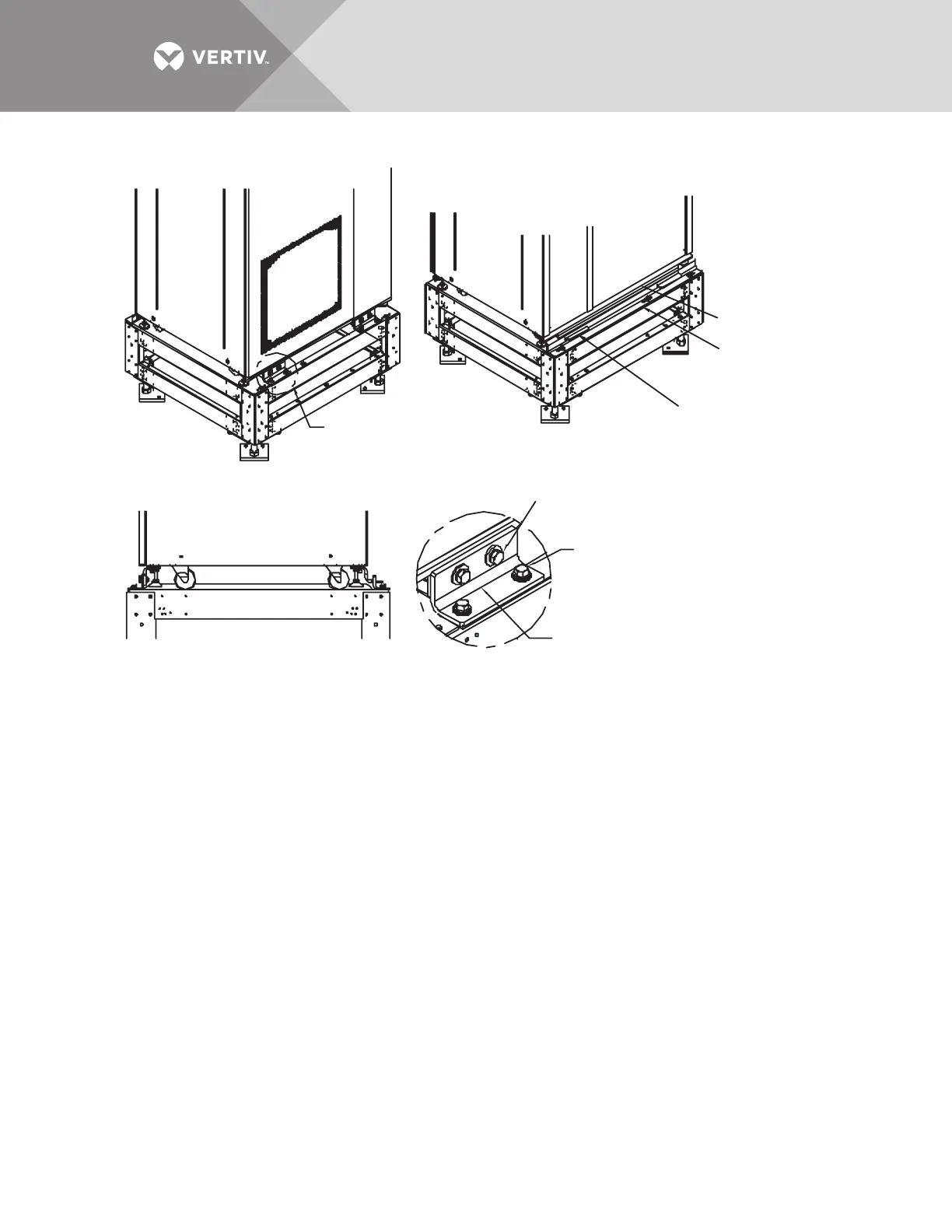

Figure 35 Installation drawing, seismic floor stand 400-600A
PS216002
Rev. 1
Rear Upper
Liebert STS2 Bracket
Upper Rear Bracket Tabs
must slide into Lower Rear
Bracket Slots
Rear Lower
Liebert STS2 Bracket
2 Places
Cap Screw M10-1.5x30mm
M10 Split Lock Washer
M10 Flat Washer
2 Places
Cap Screw M10-1.5x30mm
M10 Split Lock Washer
M10 Flat Washer
Lower Front
Bracket
See Drawings PS216000,
PS216001 and PS216003
for details.
FIGURE 1
Front Left Isometric View
FIGURE 2
Rear Right Isometric View
FIGURE 3
Right Side View
See Detail A
DETAIL A
2 Places
