Vertiv™ NetSure™ Control Unit (NCU) User Manual
The power system status area is User interactive. Clicking on the various icons will take you to that devices status Web page. For
example, clicking on the rectifier module icon opens the following Web page. This topic is further explained in the next section.

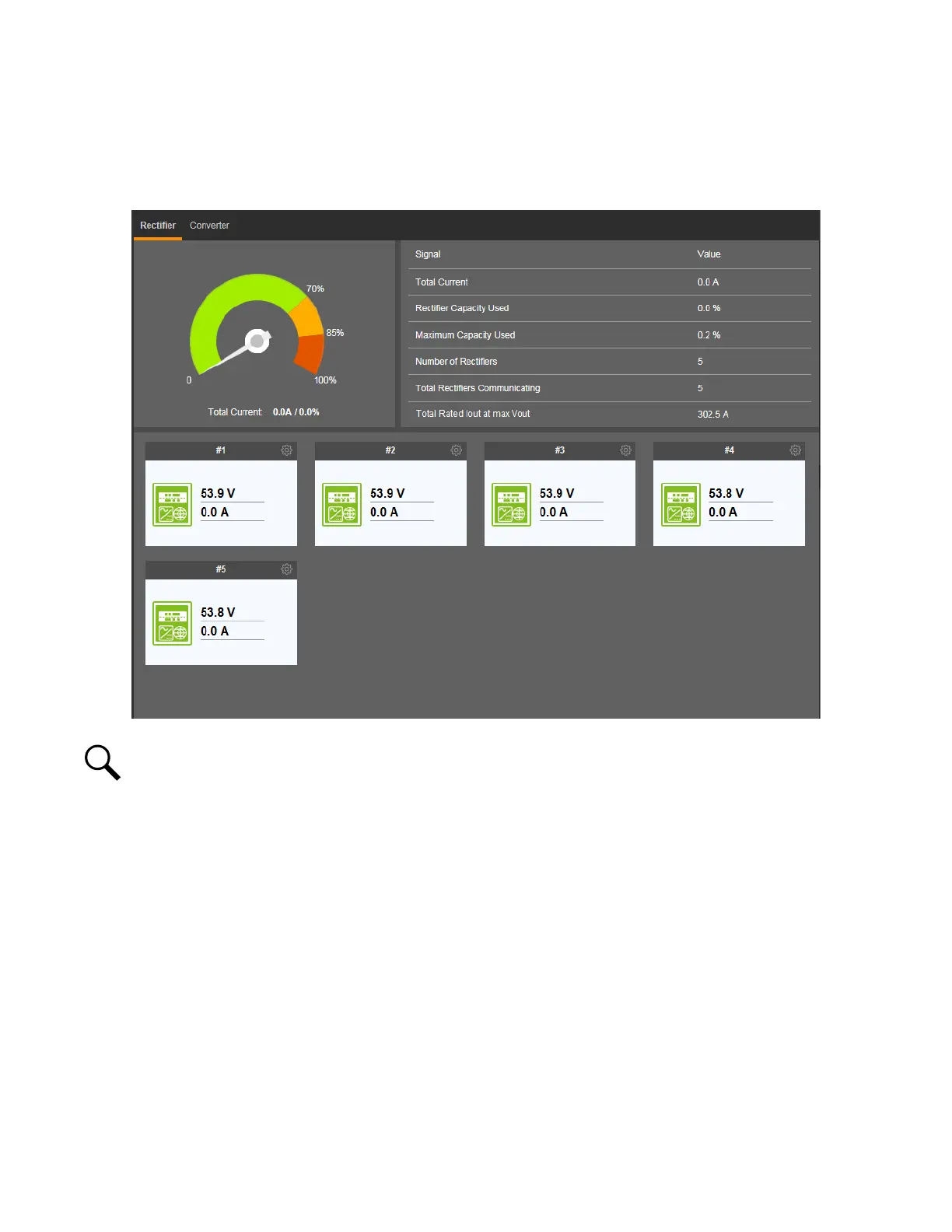

Figure 5.6 Rectifier Module Status Web Page
NOTE!
“Rectifier Capacity Used” and “Maximum Used Capacity” are based on 54 VDC.
