Vertiv™ NetSure™ Control Unit (NCU) User Manual
123

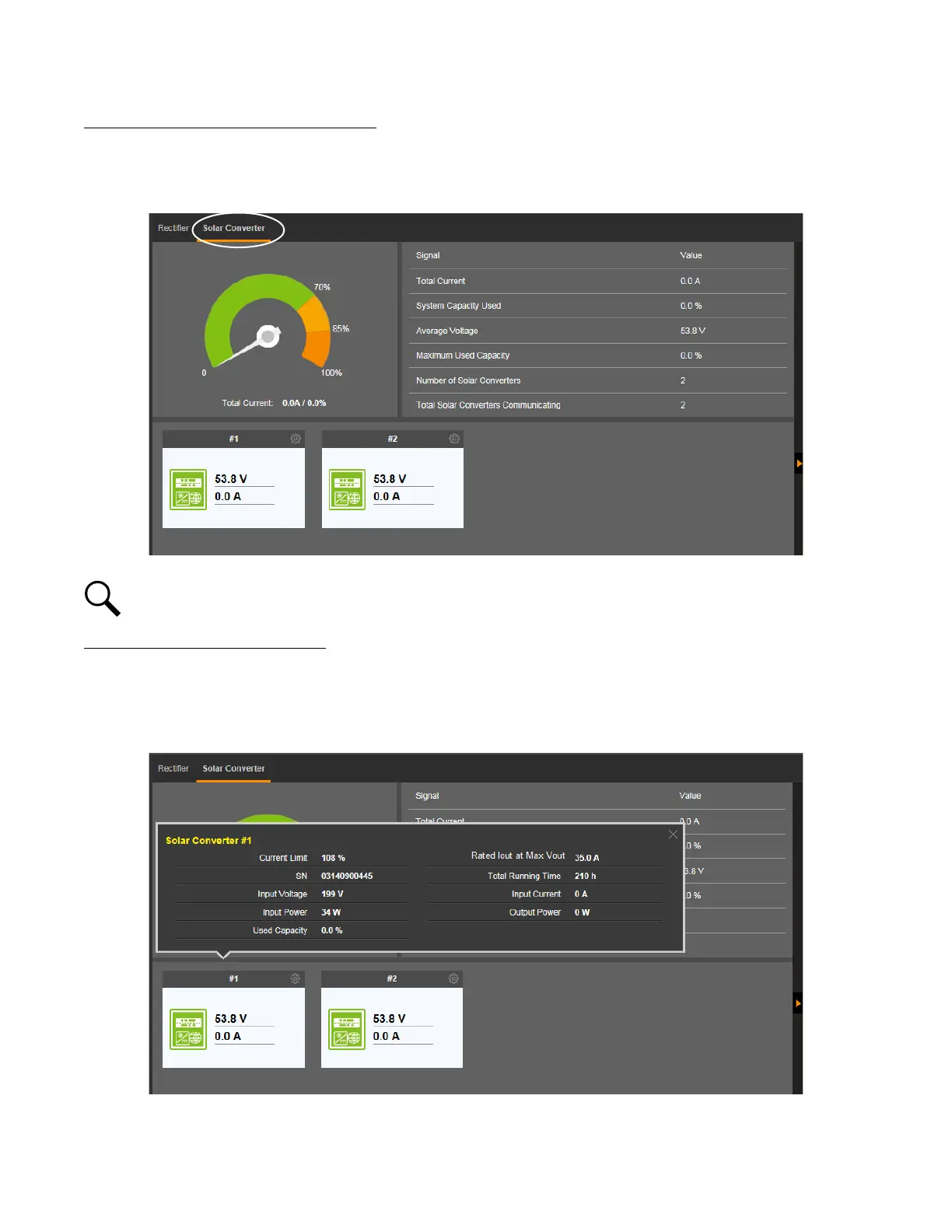

Solar Converter Device Group Status Page Tab
This tab displays status values such as “Total Current”, “Number of Solar Converters”, etc.
Figure 5.14 Solar Converter Device Group Status Page Tab
NOTE! “System Capacity Used” and “Maximum Used Capacity” are based on 54 VDC.
Individual Solar Converter Status Page
Displayed on the Solar Converter Device Group status page are the individual solar converters installed in the system. Click on an
individual solar converter icon to display its status such as "Input Current", "Output Power", etc.
Figure 5.15 Individual Solar Converter Status Page
