Vertiv™ NetSure™ Control Unit (NCU) User Manual
129
DC Device Group Status Page
Clicking on the DC icon on the power system status block diagram opens up the status page for the DC Device Group. The DC
Device Group status page contains multiple tabs (depending on the DC equipment installed in your power system). This includes DC,
SMDU, SMDUP, EIB, and SMDUE. The DC status page tab is shown next for an example.
DC Status Tab
This tab displays status values such as "DC Voltage" and “Total Load Current”.

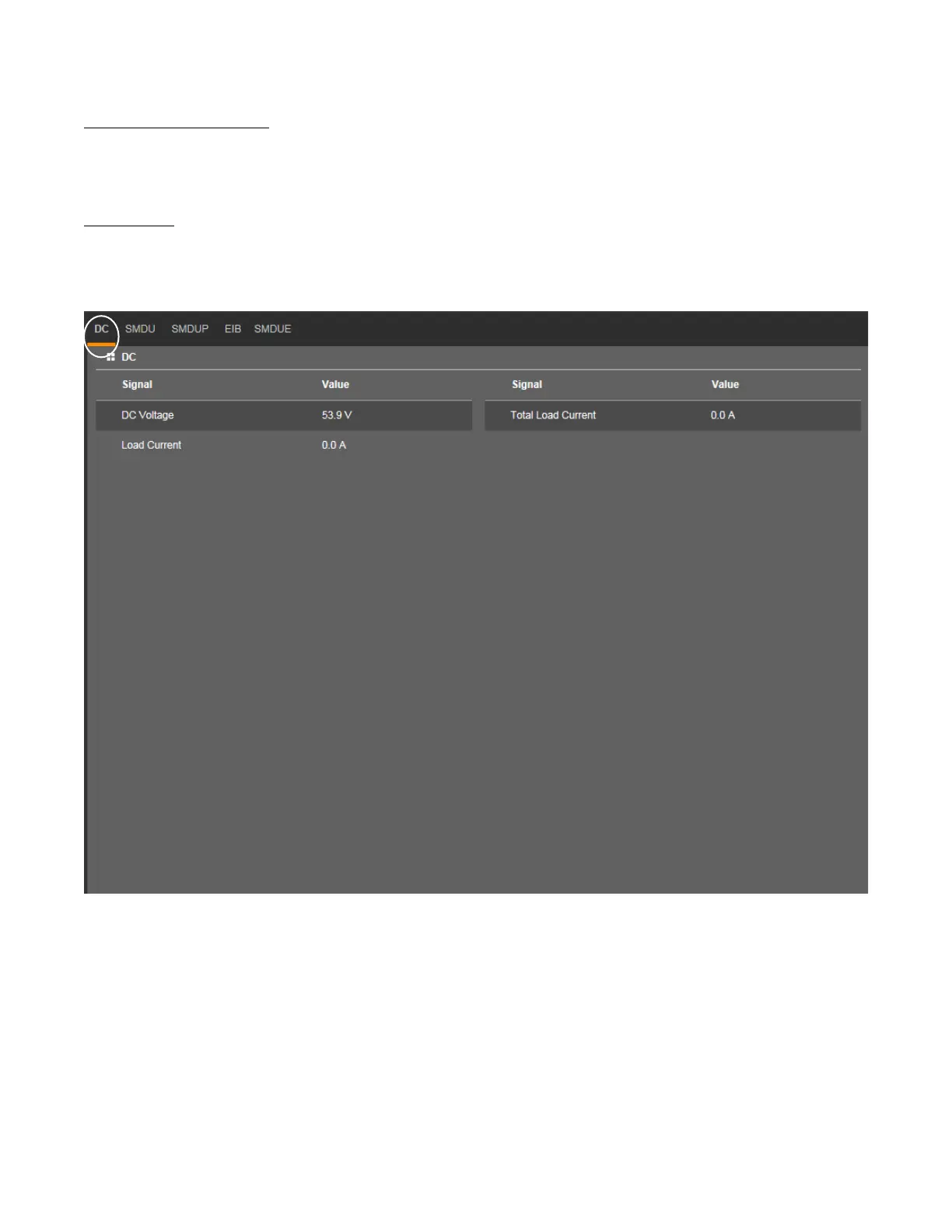

Figure 5.22 DC Device Group Status Tab
