Vertiv™ NetSure™ Control Unit (NCU) User Manual
130
Battery Device Group Status Page
Clicking on the battery icon on the power system status block diagram opens up the status page for the Battery Device Group. The
Battery Device Group status page displays battery status values such as "Battery Management State" and "Battery Temp". The actual
display of the Battery Device Group status page is dependent on the NCU configuration and if SMDU or EIB shunts are programmed
as battery shunts (see Figure 5.23 and Figure 5.24 for samples).

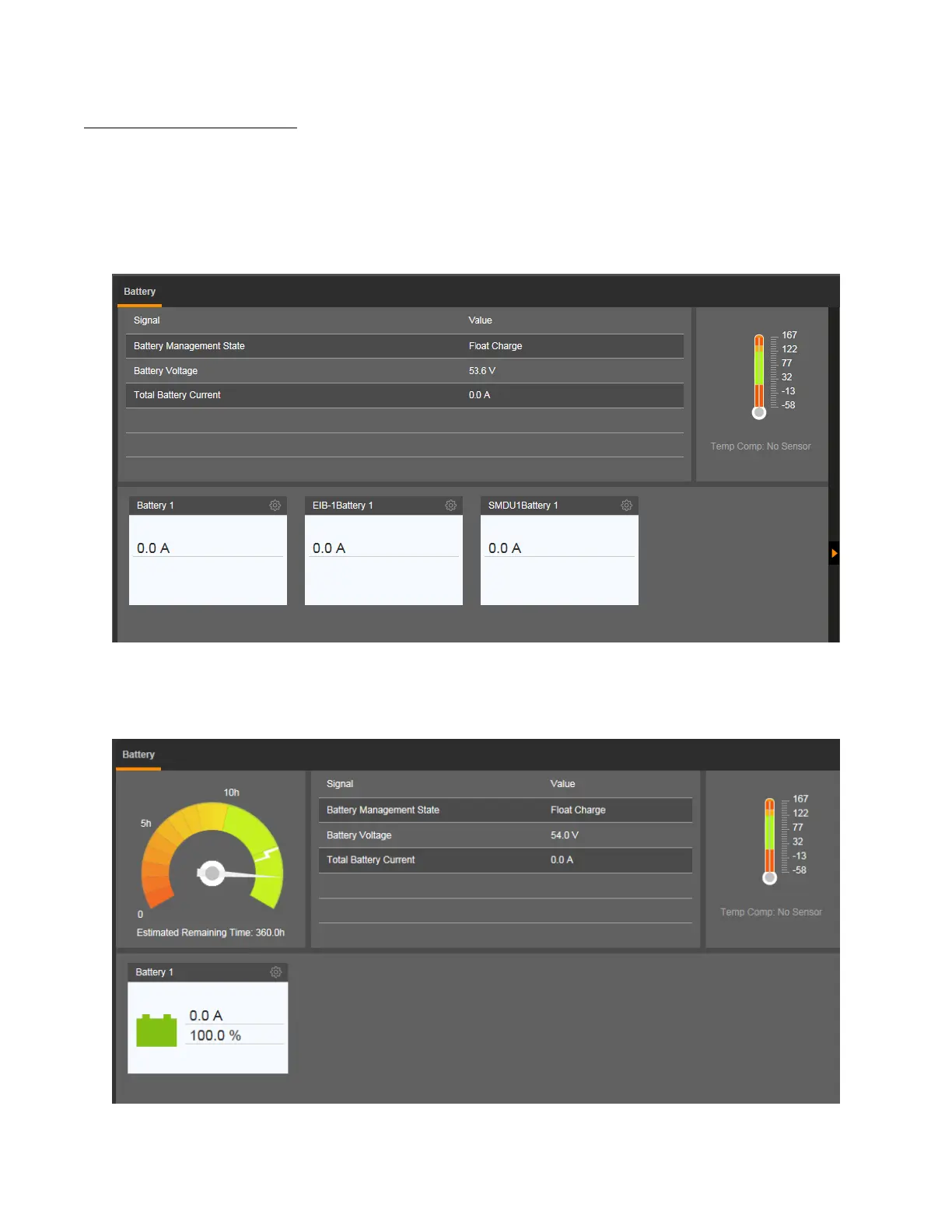

Figure 5.23 Battery Device Group Status Page
Figure 5.24 Battery Device Group Status Page
