Vertiv™ NetSure™ Control Unit (NCU) User Manual
Individual Battery Status Page
Displayed on the Battery Device Group status page are the individual batteries installed in the system. Hover the mouse over an
individual battery icon to display its status such as "Battery Rating". The actual display of an Individual Battery status page is
dependent on the NCU configuration and if SMDU or EIB shunts are programmed as battery shunts (see Figure 5.25 and Figure 5.26
for samples).

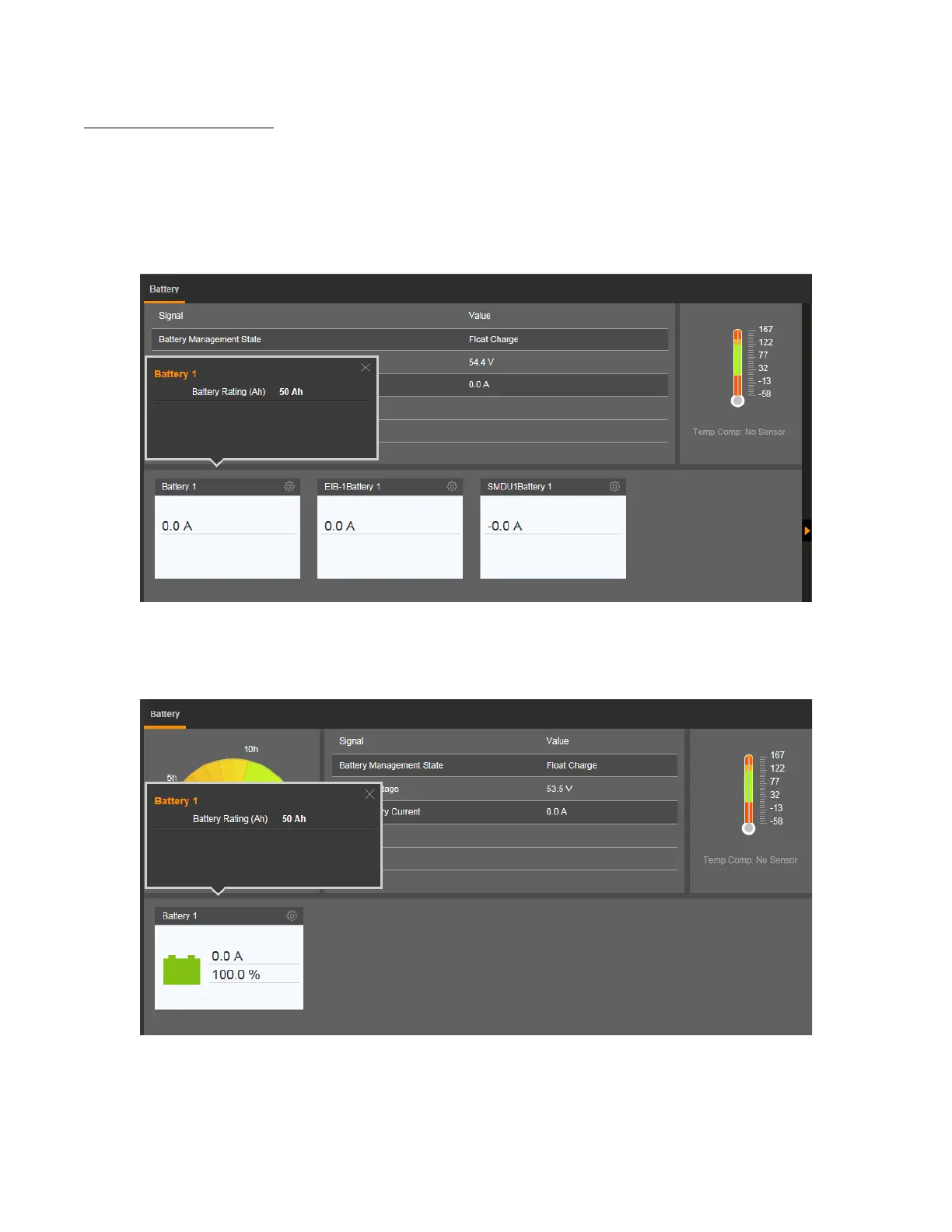

Figure 5.25 Individual Battery Status Page
Figure 5.26 Individual Battery Status Page
To Next Page
