Vertiv™ NetSure™ Control Unit (NCU) User Manual
Custom Inputs Tab
• Allows you to configure the inputs for any installed SMDUE module.

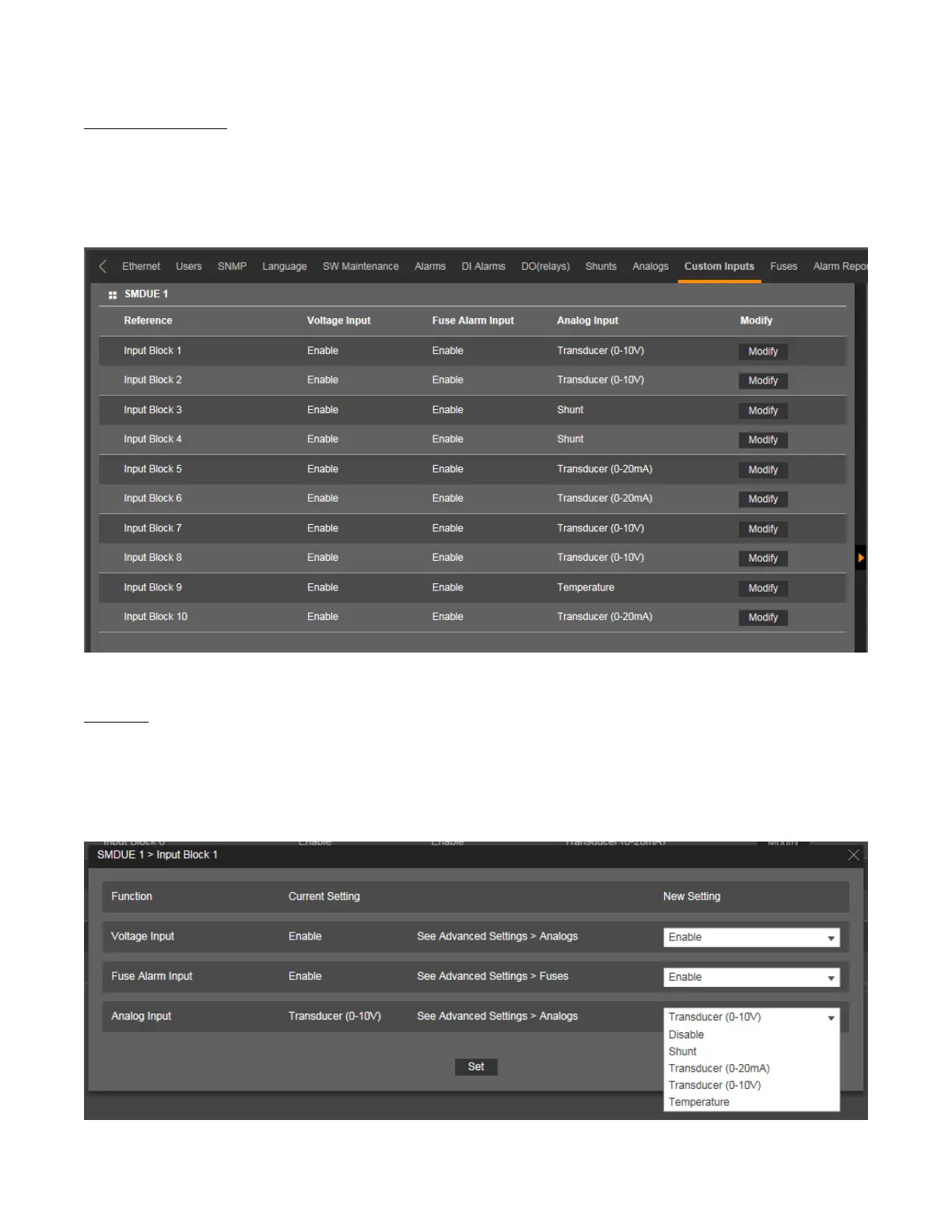

Figure 5.81 Custom Inputs Tab
Procedure
1. To configure the inputs for any installed SMDUE module, click on the “Modify” button for that input.
2. The following window opens.
Figure 5.82 Input Block Parameters
To Next Page
