Turbine Station Conguration Guide
A100K11194
2.2.2 Network Connection
There are two RJ-45 ports located on the Turbine Industrial station, either of which can be used for a
single PoE/LAN Ethernet connection.
2.2.3 Input/Output Connections
There are 6 I/O connection options for the Turbine Industrial Station.
These connections are used as digital input (eg. form a closing contact), digital output (5V), or LED
driving (20mA max) for connecting sensors, indicators or integration to other systems. See Appendix
B: Extended Board Connectors for further information.
2.3 Connectors on Turbine Ex

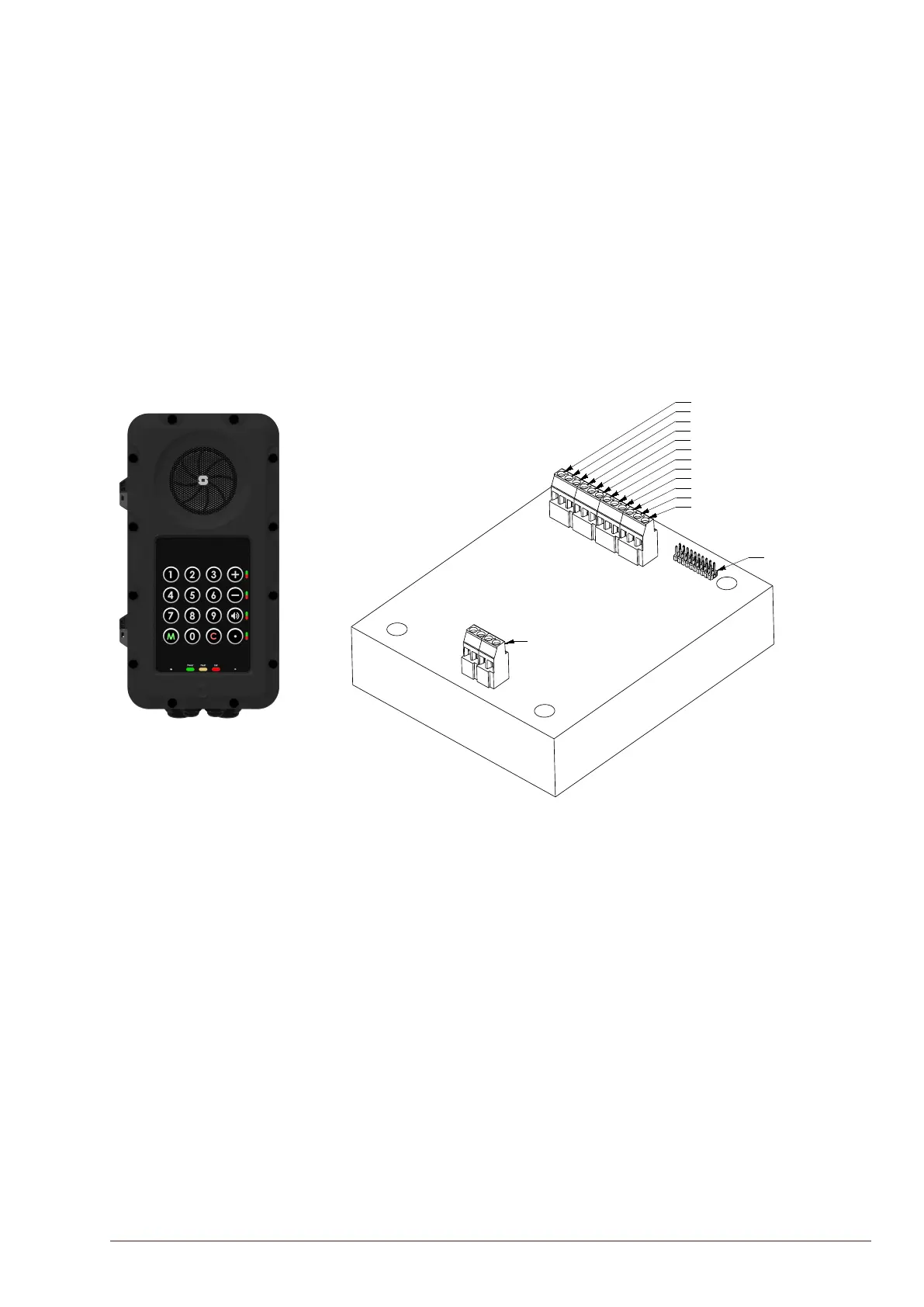

Figure 11 Connectors on Turbine Ex Station
L All connections are made on the main board inside the enclosure of the Turbine Ex station.
Procedures for connecting power supply, LAN network and Inputs/Outputs are described in the
manual A100K11499 Ex Turbine Intercoms & Exigo Access Panels Installation & Maintenance
Procedures.
+
-
+
-
+ Integrated Mic +
- Integrated Mic -
S Integrated Mic shield
1 Audio accessory speaker +
2 Audio accessory speaker -
3 Audio accessory microphone +
4 Audio accessory microphone -
5 Audio accessory Push To Talk (PTT)
6 Audio accessory Hook
7 Audio accessory Ground
8 Integrated loudspeaker +
9 Integrated loudspeaker -
Connectors
for Flowire
24V DC
Connector for
Front board
