Vingtor Stentofon TKIS-2 - Appendix A: Compact Board Connectors

74
A100K11194
Turbine Station Conguration Guide

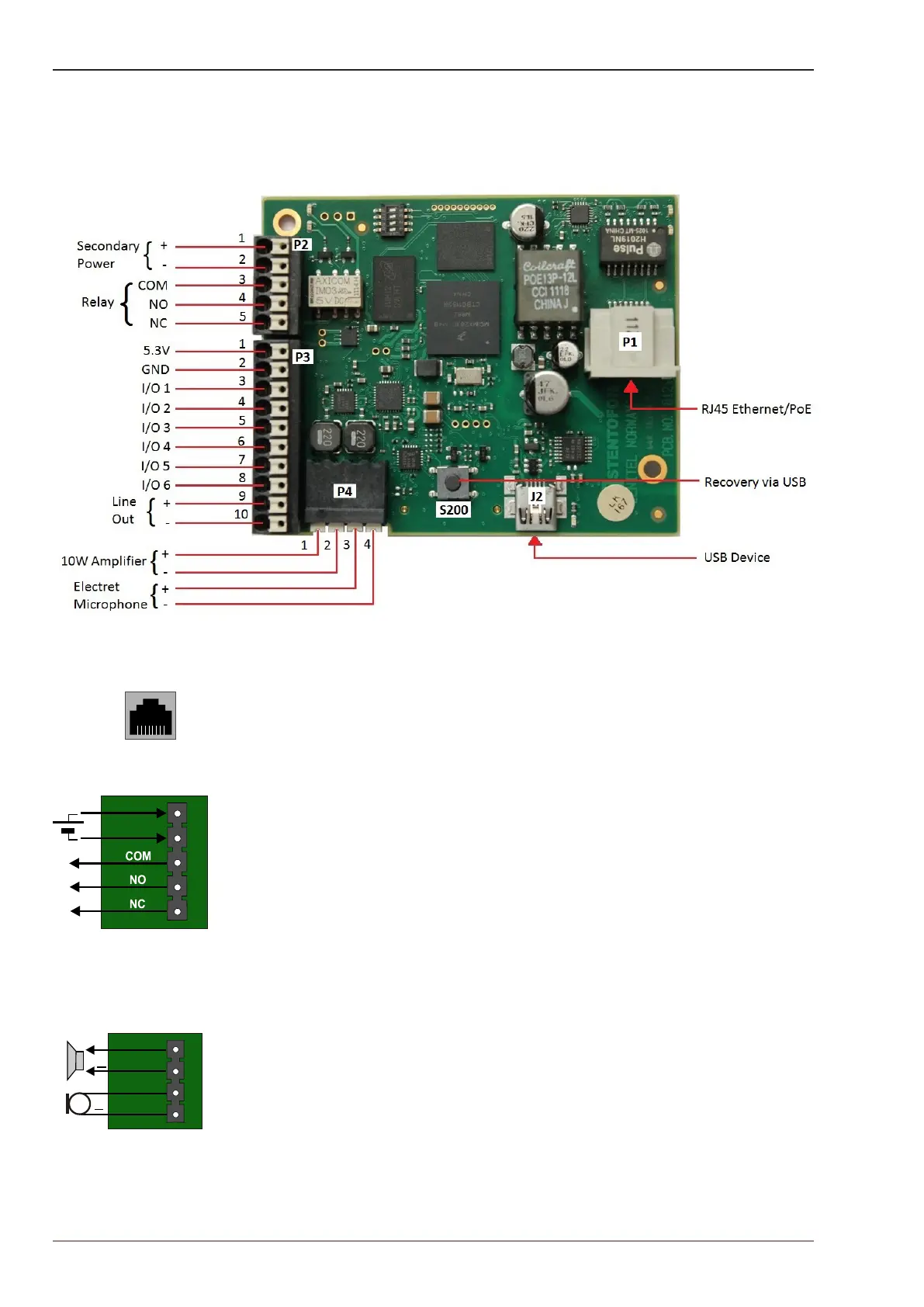

A: Compact Board Connectors
A.1 PCB - Front
P1 RJ45 PoE port for 10/100 Mbit Ethernet connection.
The station can be powered from this port if the line supports Power over
Ethernet (PoE).
P2 5-pin plug-on terminal for external connections.
Pin 1/2 24 VDC for external secondary power if PoE
is not used. Pin 1 is positive.
Pin 3 COM relay
Pin 4 NO relay
Pin 5 NC relay
P4 Loudspeaker & Electret microphone
Pin 1 10W Speaker amplier +
Pin 2 10W Speaker amplier -
Pin 3 Electret Microphone +
Pin 4 Electret Microphone -
L To enable the electret microphone input when using a TKIS-2, the Frontboard must be set to Kit under
Station Main Settings.
1
5
4
3
2
0V EXT
24V EXT
+
1
4
3
2
Speaker
Microphone
+
+
