Turbine Station Conguration Guide
B: Extended Board Connectors

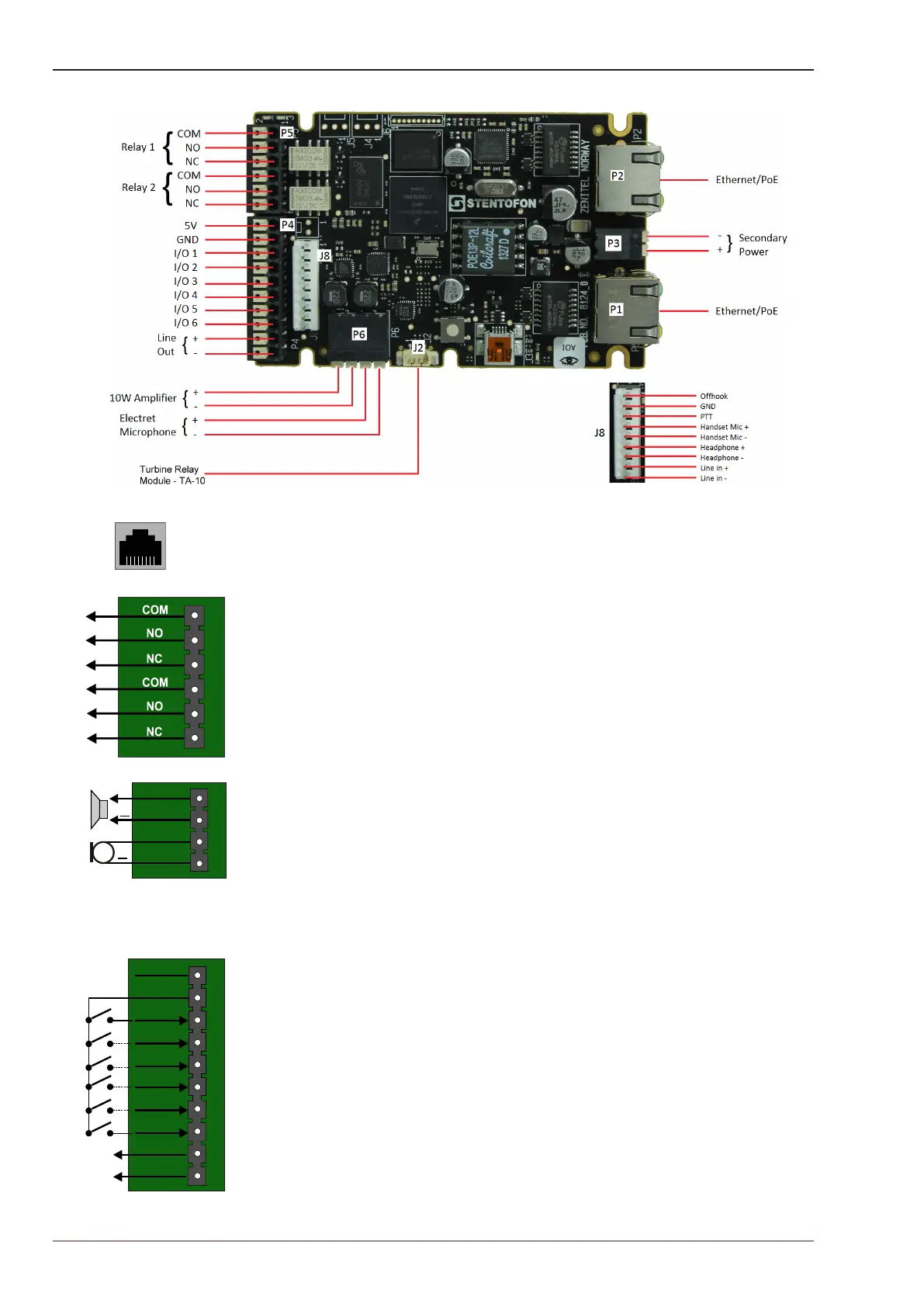

B.1 PCB - Front
P1/P2 RJ45 PoE ports for 10/100 Mbit Ethernet connection.
The station can be powered from these ports if the line supports
Power over Ethernet (PoE).
P5 6-pin plug-on terminal for external relay connections.
Pin 1 COM relay
Pin 2 NO relay
Pin 3 NC relay
Pin 4 COM relay
Pin 5 NO relay
Pin 6 NC relay
P6 Loudspeaker & Electret microphone
Pin 1 10W Speaker amplier +
Pin 2 10W Speaker amplier -
Pin 3 Electret Microphone +
Pin 4 Electret Microphone -
B.2 Input Connectors
P4 10-pin plug-on terminal for external connections.
Pin 1 5.3V
Pin 2 GND
Pin 3 Button Input or LED Driver
Pin 4 Button Input or LED Driver
Pin 5 Button Input or LED Driver
Pin 6 Button Input or LED Driver
Pin 7 Button Input or LED Driver
Pin 8 Button Input or LED Driver
Pin 9 600 ohm balanced line out +
Pin 10 600 ohm balanced line out -
1
5
4
3
2
6
1
4
3
2
Speaker
Microphone
+
+
5.3V
GND
1
6
10
I/O 1
I/O 2
I/O 3
I/O 4
I/O 5
I/O 6
GND
Line Out +
Line Out -
5
4
3
2
9
8
7
