Turbine Station Conguration Guide
A100K11194

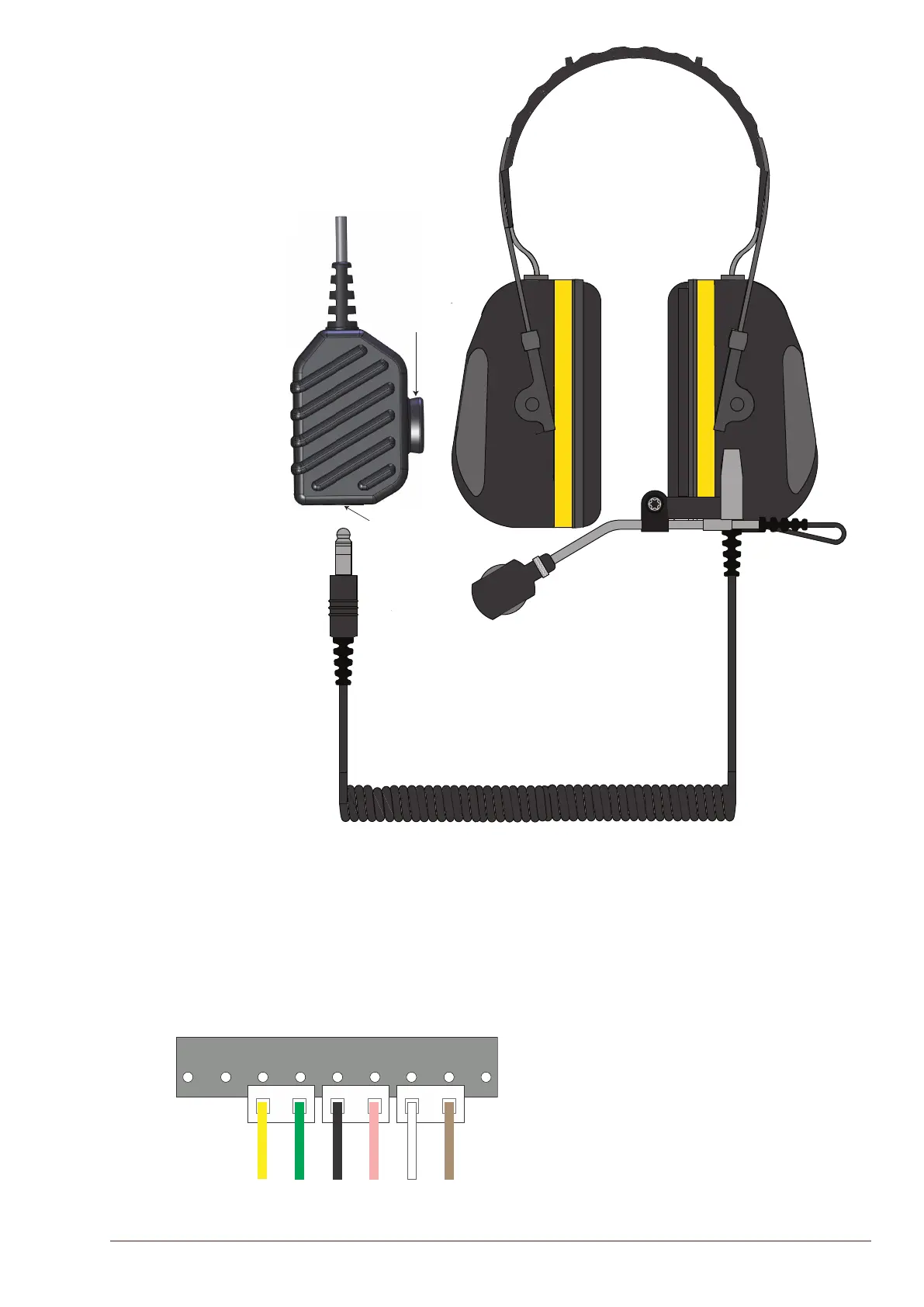

Figure 13 AK5850HS Headset with TA-22b/TAX-2b Plugbox
3.3.1 Connecting TA-22b Plugbox to TFIE-x Industrial Intercoms
Plug the IDC connectors on the Plugbox cable into the J8 terminal block according to the pin
conguration below.
1
6
5
4
3
2
9
8
7
Yellow
Green Pink WhiteBlack
TA-22b Plugbox Connection
on 9-Pin Terminal J8
Brown
PTT-
PTT+ Mic+
Mic-
LS+
LS-
AK5850HS
TA-22b / TAX-2b
PTT Button
Nexus Plug
Jack
