A.4 Output Connectors + MRBD Relay Board

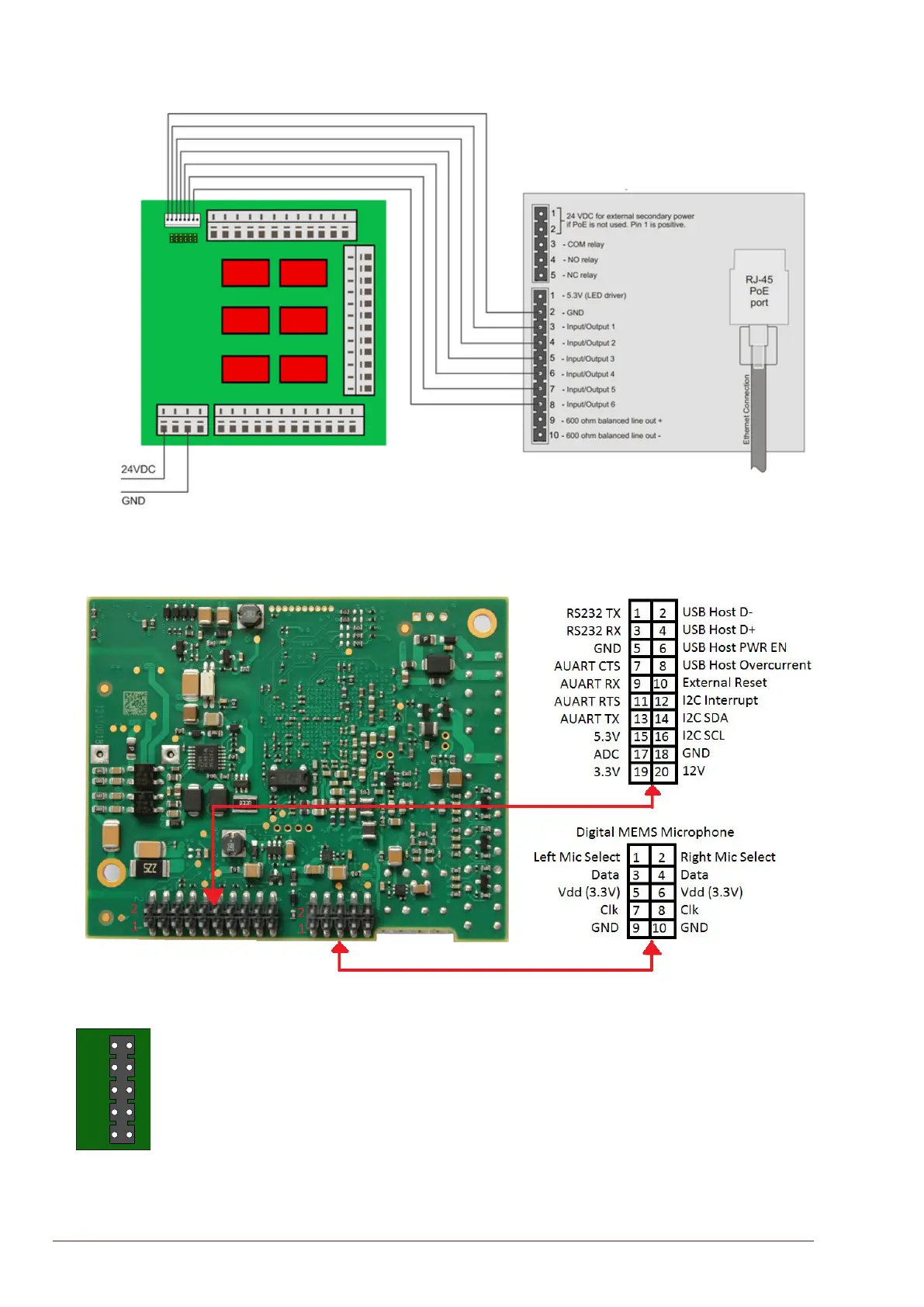

Outputs can be used together with the Multi Relay Board (MRBD) to provide up to 6 additional relay
contacts.
A.5 PCB - Rear
J6 10-pin terminal for digital MEMS Microphone
Pin 1 Left mic select (Vdd)
Pin 2 Right mic select (GND)
Pin 3 Data
Pin 4 Data
Pin 5 Vdd 3.3V
Pin 6 Vdd 3.3V
Pin 7 CLK
Pin 8 CLK
Pin 9 GND
Pin 10 GND
1
6
10
5
4
3
2
9
8
7
