Turbine Station Conguration Guide

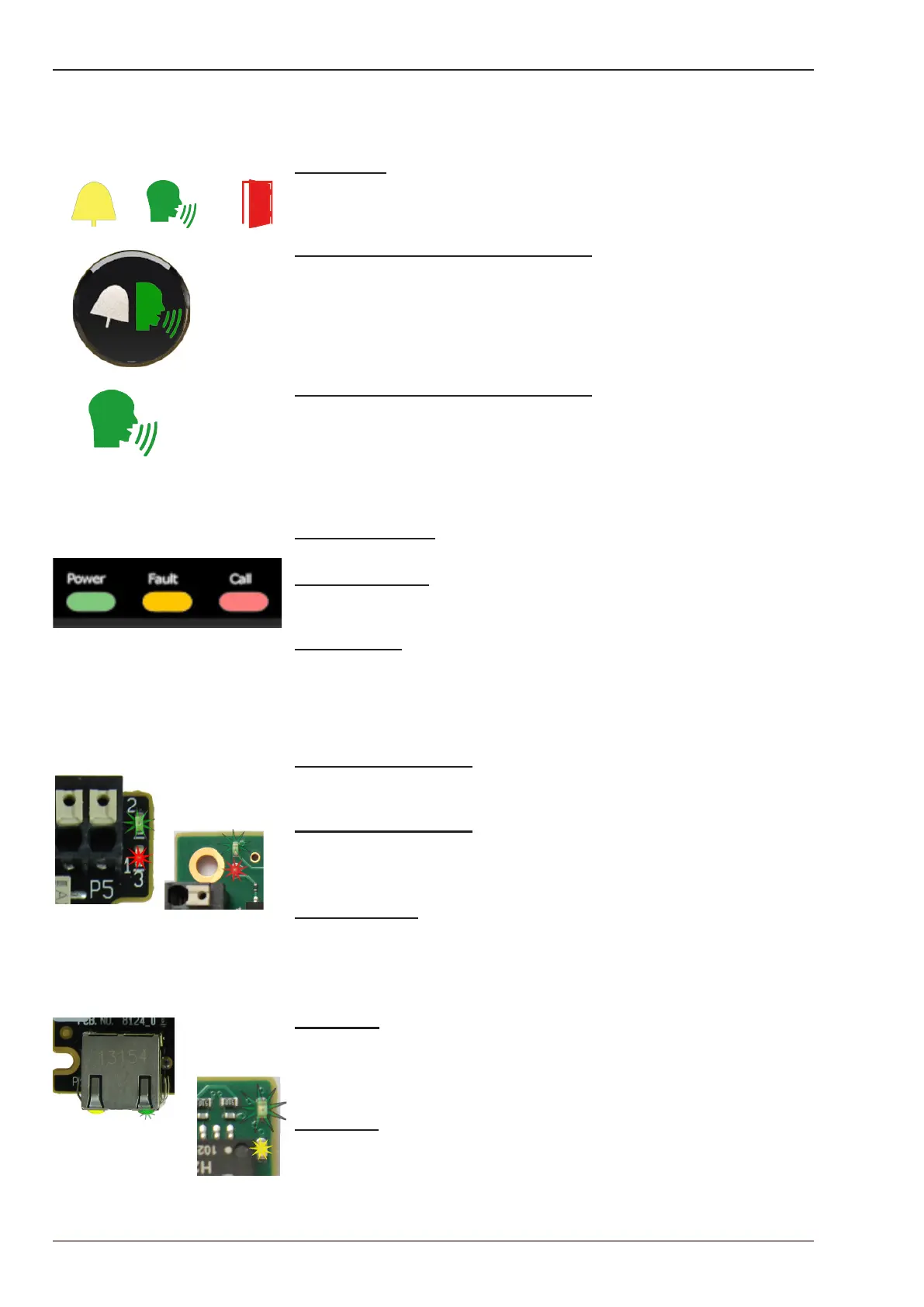

10 Station Indication LEDs
10.1 LEDs on Front Plate
10.1.1 Compact Stations
Status LEDs
- Bell icon lights yellow when a call is placed and ringing
- Talk icon lights green when a call is active and in conversation
- Door icon lights red when the door is unlocked or relay is active
Talk Icon: Flashing at 1 second intervals
- Station has no connection to the AlphaCom server/exchange.
Possible reasons:
- No connection to Ethernet
- Wrong AlphaCom XE IP address congured
- Invalid IP address
- No gateway or wrong gateway to the AlphaCom server/exchange
Talk Icon: Flashing at 5 second intervals
- Station connected but NOT registered in the AlphaCom server/
exchange.
Reason:
- Station has not been programmed in AlphaPro
10.1.2 ECPIR-3P, Industrial & Ex Stations
Power LED - Green
- Steady light: Power is OK
Fault LED - Yellow
- Steady light: Not used
- Flashing: Not registered/no connection to server
Call LED - Red
- Steady light: In a conversation/call
10.2 Status LEDs on PCB
Flashing 2 red + 1 green
- Station has no connection to the AlphaCom server/exchange.
Flashing 1 red + 2 green
- Station connected but NOT registered in the AlphaCom server/
exchange.
Flashing 3 green
- Station connected and registered in the AlphaCom server/exchange.
10.3 Ethernet Activity & Speed LEDs
Green LED
- Steady light: Ethernet connection OK
- Flashing: Ethernet data tra󰀩c
- No light: No Ethernet connection
Yellow LED
- Steady light: 100 Mbit Ethernet connection
- No light: 10 Mbit Ethernet connection
Industrial
Compact
Industrial
Compact
