Chapter 5 Deployment CPU 21x-2BT02 with H1 / TCP/IP Manual VIPA CPU 21x
5-16 HB103E - Rev. 05/45
A connection block contains the remote parameters, i.e. parameters that
are oriented towards the partner on the network, and local parameters, i.e.
parameters that apply to the PLC program of a connection.
Depending on the selected protocol you may configure H1 or TCP/IP con-
nections by selecting the symbol of the station and inserting/configuring the
respective connection.

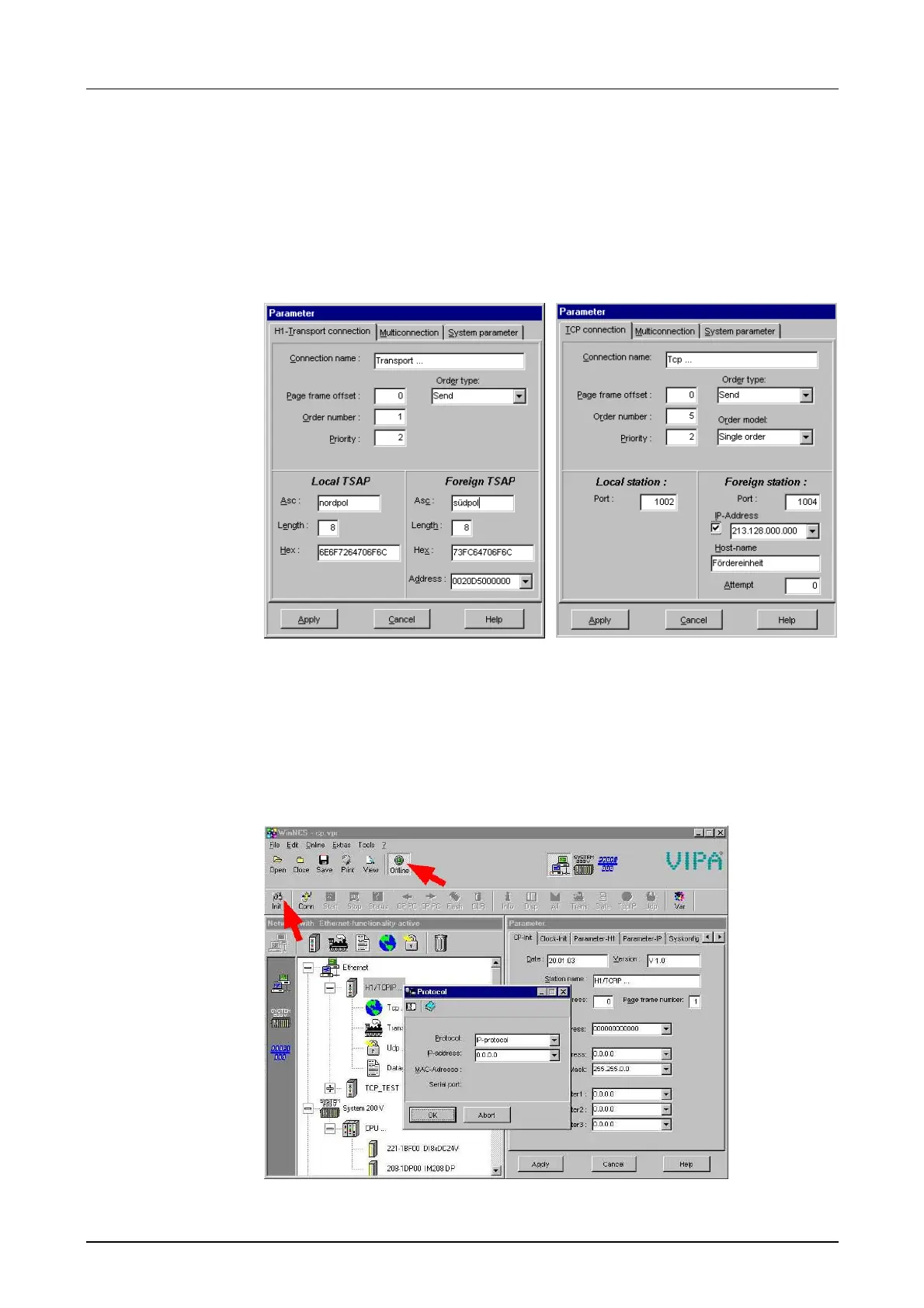

H1-Connection TCP/IP- Connection
When all the required connections have been configured, you have to
transfer the parameters to the CP. This operation is available from the
"Module transfer functions" of WinNCS.
For transferring the configuration data, please activate the „online
functions“ and click on the button INIT:
Configuration of a
connection block
Transferring the
configuration to
the CP
