Chapter 5 Deployment CPU 21x-2BT02 with H1 / TCP/IP Manual VIPA CPU 21x
5-20 HB103E - Rev. 05/45
Here only the usage of the VIPA "Green Cable" together with the
programming tool from Siemens shall be outlined.
The "Green Cable" establishes a serial connection between the COM
interface of the PC and the MP
2
I interface of the CPU.
Attention!
Please regard that you may deploy the "Green Cable" exclusively with the
MP
2
I interfaces of VIPA CPUs!
Approach
• Start the SIMATIC manager from Siemens.
• Choose Options > Set PG/PC Interface.

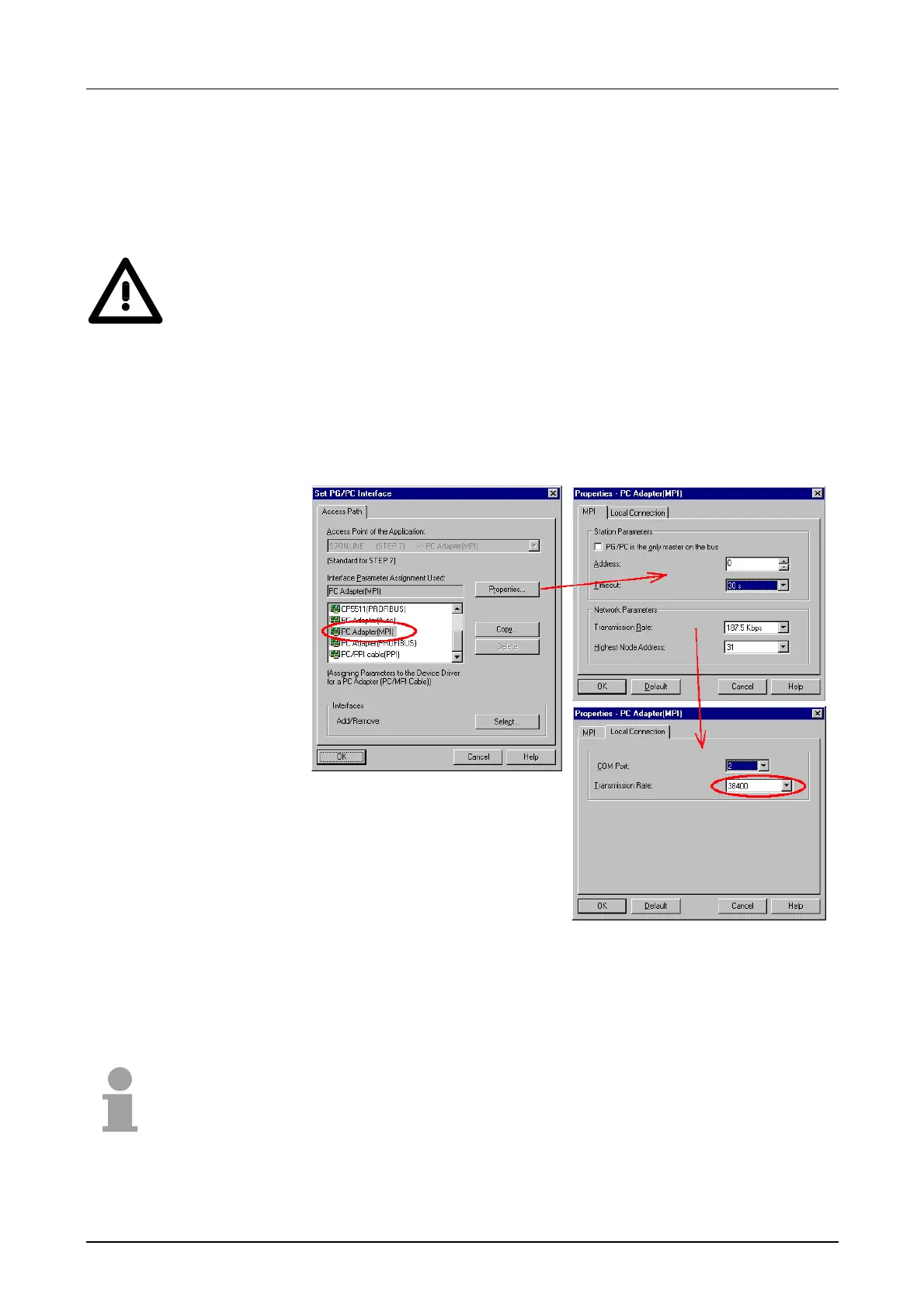

→ The following dialog window appears where you may configure the
MPI interface you want to use:
• Choose the "PC Adapter (MPI)" from the list; possibly you may have to
add it first.
• Click on [Properties].
→ The following two sub dialogs you may configure your PC adapter as
shown in the picture.
Note!
Please set the transfer rate to 38400 Baud when using the Green Cable.
... continue to a)
Transfer via MPI
