17: QoS: type of service
_______________________________________________________________________________________________________
_____________________________________________________________________________________________________
© Virtual Access 2017
GW1000 Series User Manual
Issue: 1.9 Page 131 of 350

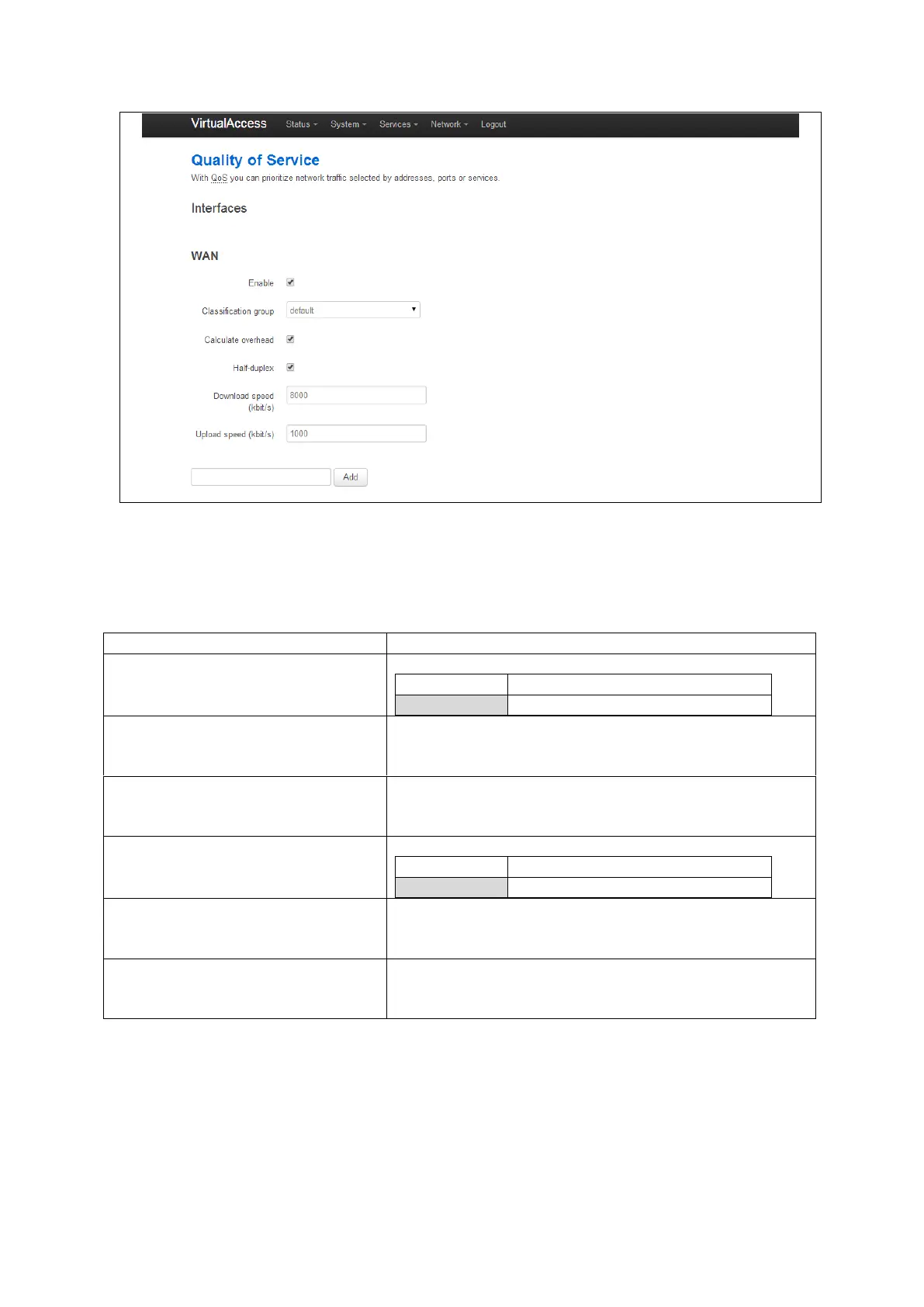

Figure 73: The quality of service page for WAN interface
The following parameters can be configured for theinterface you have chosen. The name
of the interfaces should match with the logical name given to the interface in the
network configuration.
Web Field/UCI/Package Option
Description
Web: Enabled
UCI: qos.[interface].enabled
Opt: enabled
Enables or disables QoS interface.
1
Enabled.
0
Disabled.
Web: Classification group
UCI: qos. [interface].classgroup
Opt: classgroup
Creates a mapping before previously created classgroup and
interface to which it should be assigned to.
Web: Calculate overhead
UCI: qos. [interface].overhead
Opt: overhead
Decreases upload and download ratio to prevent link saturation.
Web: Half-duplex
UCI: qos [interface].halfduplex
Opt: halfduplex
Enables or disables half-duplex operation.
1
Enabled.
0
Disabled.
Web: Download speed
UCI: qos.[interface].download
Opt: download
Download speed limit in kbits/sec.
Web: Upload speed
UCI: qos.[interface].upload=2000
Opt:upload
Upload speed limit in kbits/sec.
Table 42: Information table for QoS page
To add classification rules, click Add. TheClassification Rules section appears.
Configure each classification rule with the following parameters.
