30.6 DMVPN diagnostics
In the top menu, click Status -> IPSec. The IPSec Connections page appears.

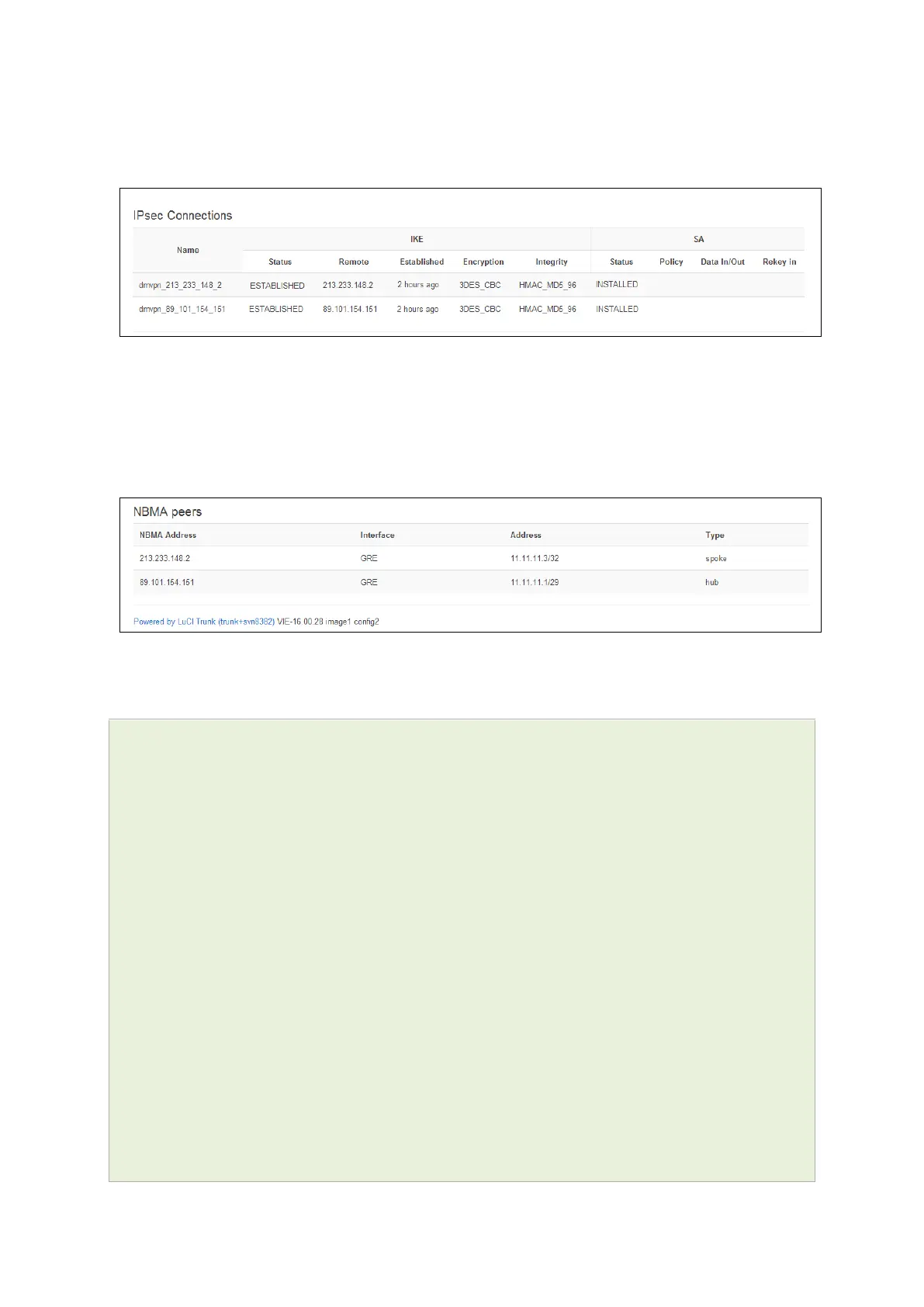

Figure 145: The IPSec connections page
In the Name column, the syntax contains the IPSec name defined in package dmvpn and
the remote IP address of the hub, or the spoke separated by an underscore; for
example, dmvpn_213.233.148.2.
To check the status of DMVPN, in the top menu, click Status -> DMVPN.
Figure 146: The NBMA peers page
To check DMVPN status, enter:
:~# opennhrpctl show
Status: ok
Interface: gre-GRE
Type: local
Protocol-Address: 11.11.11.7/32
Alias-Address: 11.11.11.3
Flags: up
Interface: gre-GRE
Type: local
Protocol-Address: 11.11.11.3/32
Flags: up
Interface: gre-GRE
Type: cached
Protocol-Address: 11.11.11.2/32
NBMA-Address: 178.237.115.129
NBMA-NAT-OA-Address: 172.20.38.129
