virtual access GW1000M Series - 3 GW1000 and GW1000 M Series LED Behaviour; Main LED Behaviour

3: GW1000 and GW1000M Series LED behaviour
_______________________________________________________________________________________________________
_______________________________________________________________________________________________________
© Virtual Access 2017
GW1000 Series User Manual
Issue: 1.9 Page 19 of 350
3 GW1000 and GW1000M Series LED behaviour
3.1 Main LED behaviour
There are five LEDs on the GW1000 and GW1000M Series router

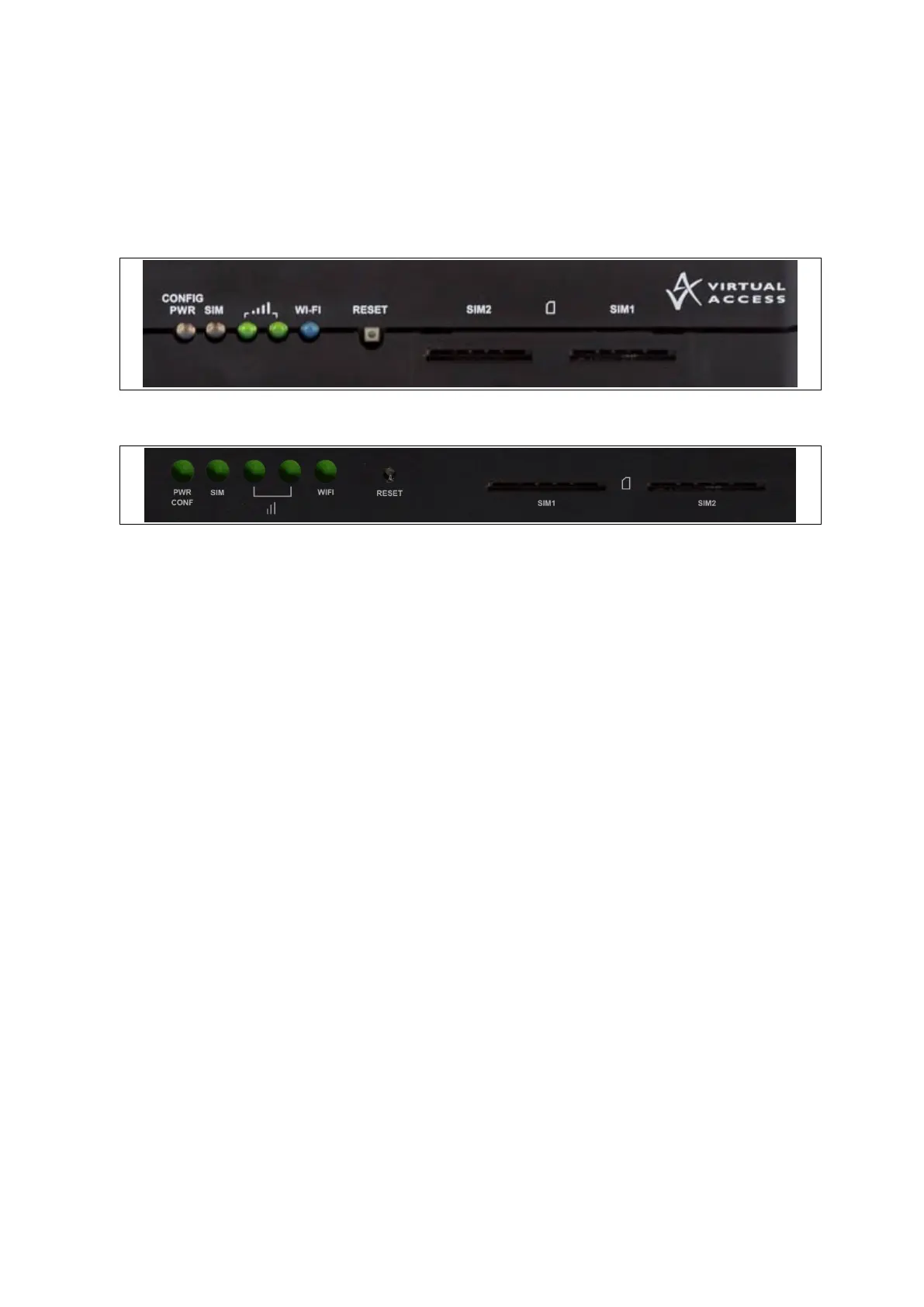

Figure 5: LEDs on the GW1000 Series router
Figure 6: LEDs on the GW1000M Series router
The possible LED states are:
 Off
 Flashing slowing (2 flashes per second)
 Flashing quickly (5 flashes per second)
 Double flash (2 quick flashes then a pause)
 On
