4: Installing a router into a vehicle

_______________________________________________________________________________________________________

GW1000 Series User Manual

Issue: 1.9 Page 21 of 350

4 Installing a router into a vehicle

The type of cable you need depends on your application and vehicle. You will have

received either a fused or non-fused power cable for the installation.

4.1 Installing a router into a vehicle using a non-fused power cable

Install the router using the vehicle installation power cable 840-00076 provided.

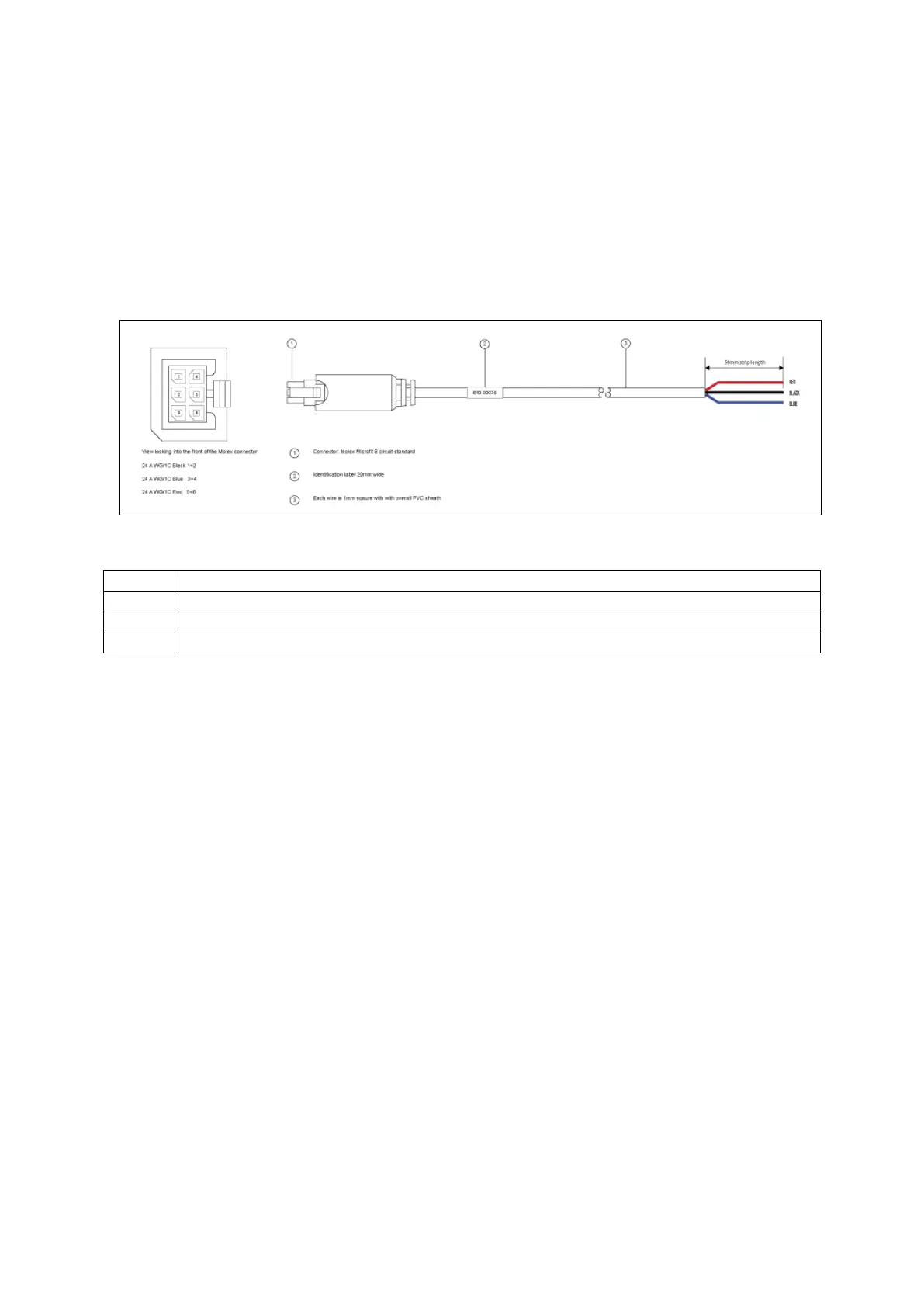

Figure 8: 840-00076 3 core power cable

(1)

Connector: Molex Microfit 6circuit standard

(2)

Label 20mm wide

(3)

Each wire is 1.0mm square, with overall PVC sheath

Note:

Requires 5 amp fuse in series with red and blue wires

Table 7: Power cable descriptions

 Connect the BLACK wire to a ground wire.

 Connect the BLUE wire to a 12V switched vehicle ignition wire.

 Connect the RED wire to a 12V permanent wire.

Plug the 6 pin connector into the router.
