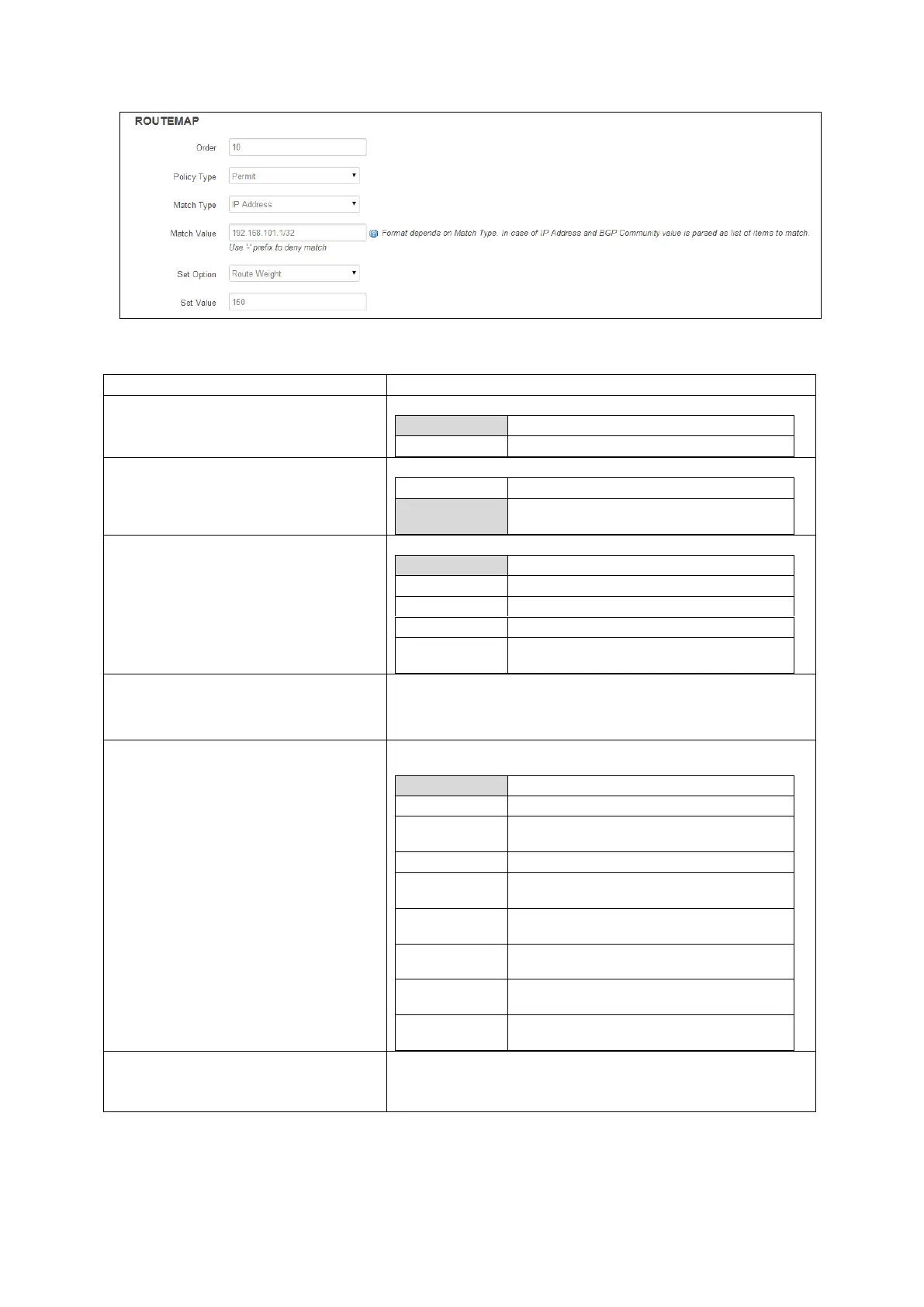

Figure 78: The routemap section
Web Field/UCI/Package Option
Description
Web: Order
UCI: bgpd.ROUTEMAP.order
Opt: order
Defines the Route Map order number.
Blank
Range
1-65535
Web: Policy Type
UCI: bgpd.ROUTEMAP.permit
Opt: permit
Defines the actions taken if the entry is matched.
Deny
Denies the route.
Permit
Permits the route so process the set
actions for this entry.
Web: Match Type
UCI: bgpd.ROUTEMAP.match_type
Opt: match_type
Defines match type. Available options are as follows:
IP address
Matches IP address.
IP Next Hop
Matches next hop IP address.
AS-Path
Matches AS-path.
Route Metric
Matches route metric.
BGP
Community
Matches BGP community.
Web: Match value
UCI: bgpd.ROUTEMAP.match
Opt: match
Defines the value of the match type. Format depends on the
Match Type selected. In the case of IP address and BGP
Community values, the match value is parsed as a list of items to
match.
Web: Set Option
UCI: bgpd.ROUTEMAP.set_type
Opt: set_type
Defines the set option to be processed on a match. Available
options are shown below.
None
IP Next Hop
Setting option for IP next hop.
Local
Preference
Setting option for Local Preference.
Route Weight
Setting option for Route Weight.
BGP MED
Setting option for BGP multi-exit
discriminator (BGP metric).
AS Path to
Prepend
Setting option to prepend AS to AS path.
BGP
Community
Setting option for BGP community.
IPv6 Next Hop
Global
Setting option for IPv6 Next Hop Global.
IPv6 Next Hop
Local
Setting option for IPv6 Next Hop Local.
Web: Value
UCI: bgpd.ROUTEMAP.set
Opt: set
Defines the set value when a match occurs. Value format
depends on the set option you have selected.
Table 47: Information table for routemap
