Cables and cable harnesses,
D9, D12 and D16 engines

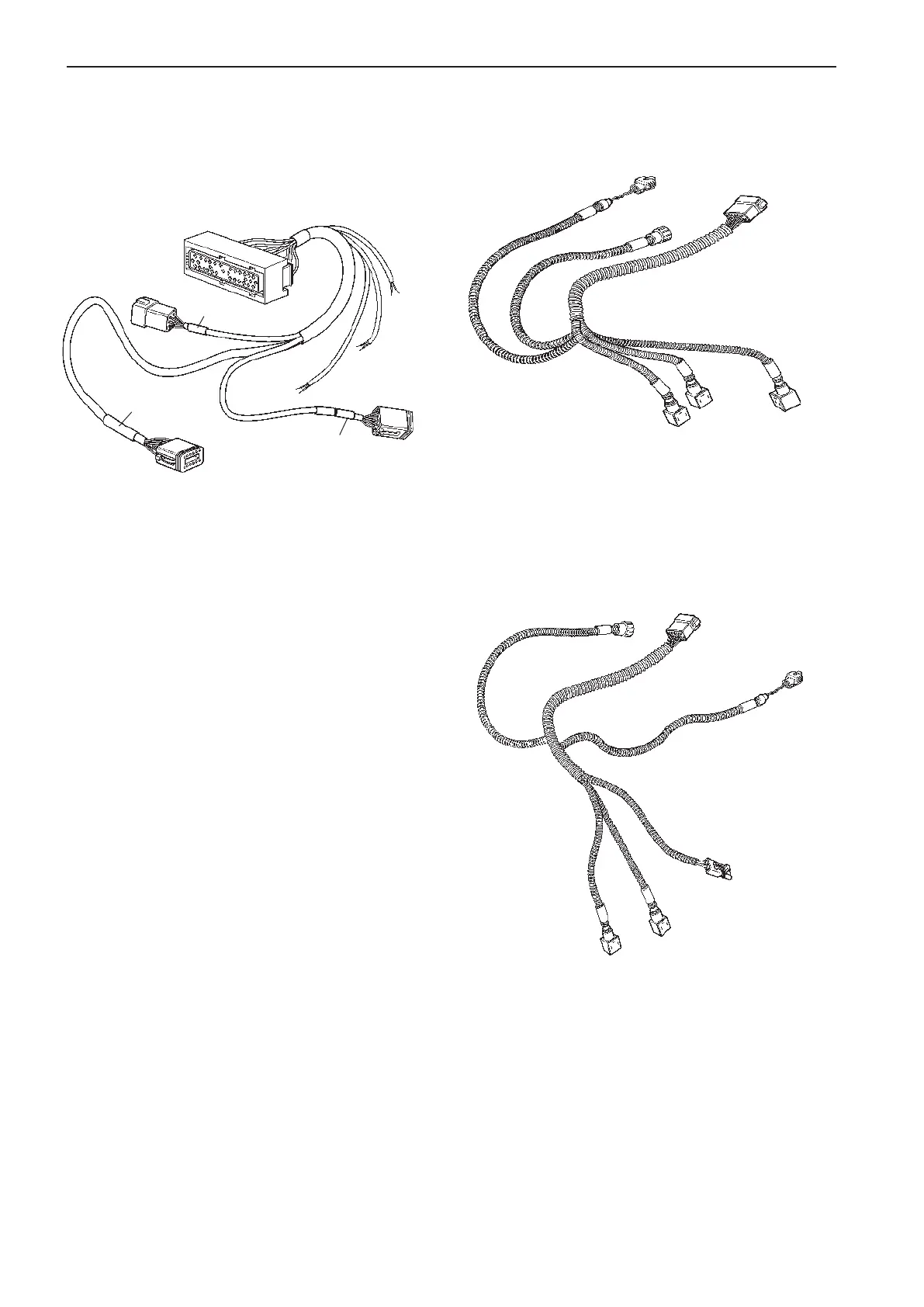

Engine/transmission cable, 29-pin
The cable connects the PCU to the engine, transmis-
sion (reverse gear), fuel level sender (black PVC-
coating), fresh water sender (blue PVC-coating) and
rudder indicator (green PVC-coating). The harness
also has a diagnostic connector to the VODIA diag-
nostic tool.
Length, m (ft): 3 (10), 5 (16)
Transmission cable, 12-pin
Reverse gear type ZF
Transmission cable, 12-pin
Reverse gear type Twin Disc
PRIMARY
SECONDARY
GEARBOX CONN
TROLLING
(Slip valve)
OIL TEMP/
PRESSURE
REV. PICK-UP
The cable harness connects the gear shift solenoids
on the reverse gear to the engine/transmission cable
and the PCU. There is also a reverse gear rpm pick-
up cable and an oil temp and pressure cable. The
cable harness is connected and clamped together
with the reverse gear at the factory.
Length, m (ft): 1.3 (4)
REV. PICK-UP
GEARBOX CONN
OIL TEMP/
PRESSURE
TROLLING
(Slip valve)
SECONDARY
PRIMARY
GEARBOX CONN.
ENGINE CONN
Part No.
DIAGNOSE CONN.
CONN X3
Pink
WATER
LEVEL
SENDER
(blue)
RUDDER
ANGLE
SENDER
(green)
FUEL LEVEL
SENDER (black)
24
Major components EVC-C
