Vitals Diagnostics is
designed to thoroughly check
the data connection between
the control board and the
controller. Noise, incorrect
data packets, etc. will prevent
a connection.
To check for wiring/connec-
tor issues, use the Diagnostic
Control Cable (for the TC-
100, p/n 79-302-40). See
“Using the Diagnostics
Cable” on page 72.
(Vitals Mobile is not particular
in establishing a machine
connection. If Vitals Mobile
connects, but Vitals Diagnos-
tics does not, it indicates a
connection issue.)

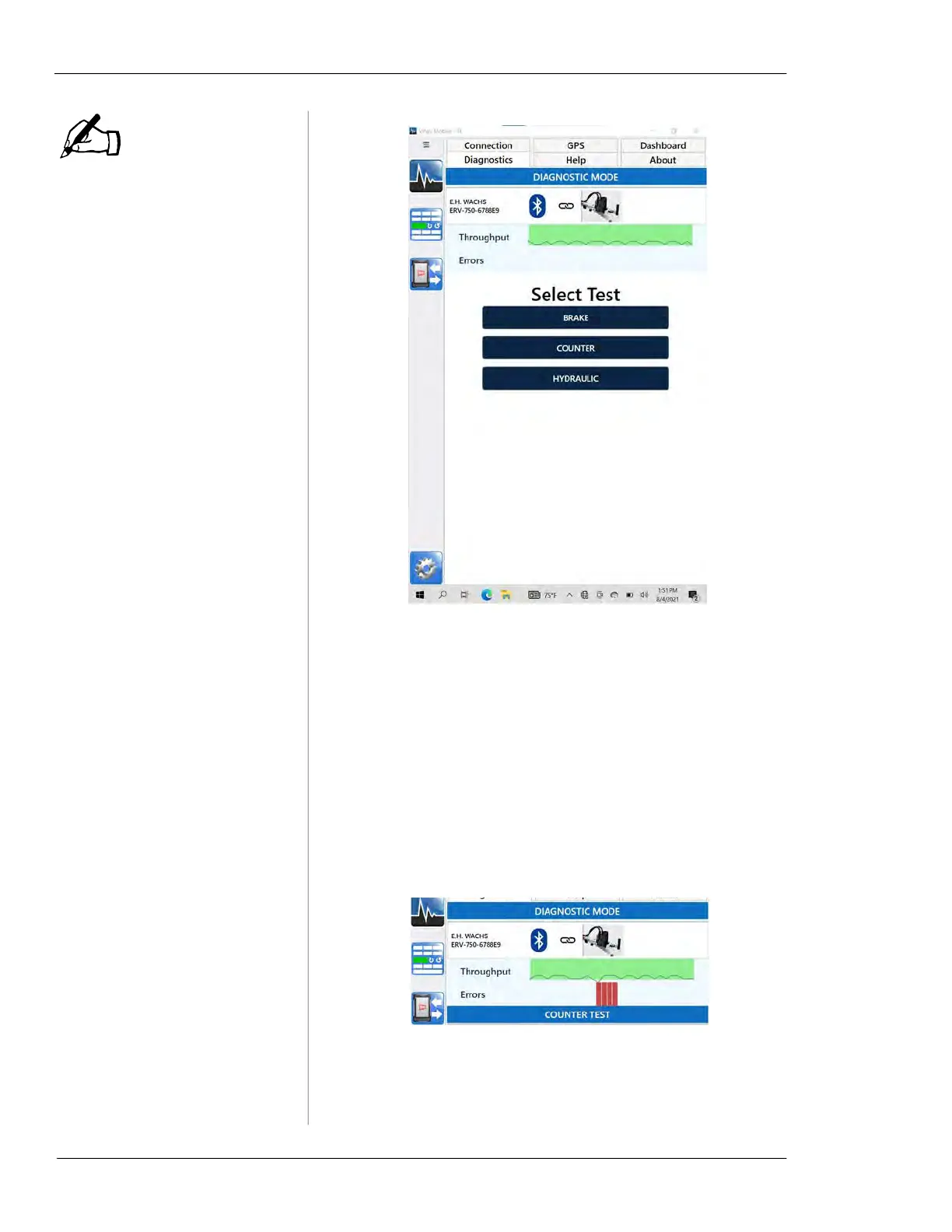

• The BRAKE test checks locking and releasing the
valve operator brake.
• The
COUNTER test checks the operation of the rota-
tion counter.
• The
HYDRAULICS test checks operation of the
hydraulic system and the pressure transducers.
• NOTE: The
Errors line below the Throughput graph dis-
plays the status of the data connection. Red bars in the
graph indicate data connection failures.
• An occasional red error bar is normal, but consistent
or multiple error bars indicate a connection problem:
• Make sure you are using the controller close enough
to the valve operator for a good Bluetooth connec-
tion, or connect the controller using the optional
diagnostics cable.
NOTE
