Vitals Reference Manual
70 Part No. 79-MAN-04, Rev. I E.H. Wachs
3.

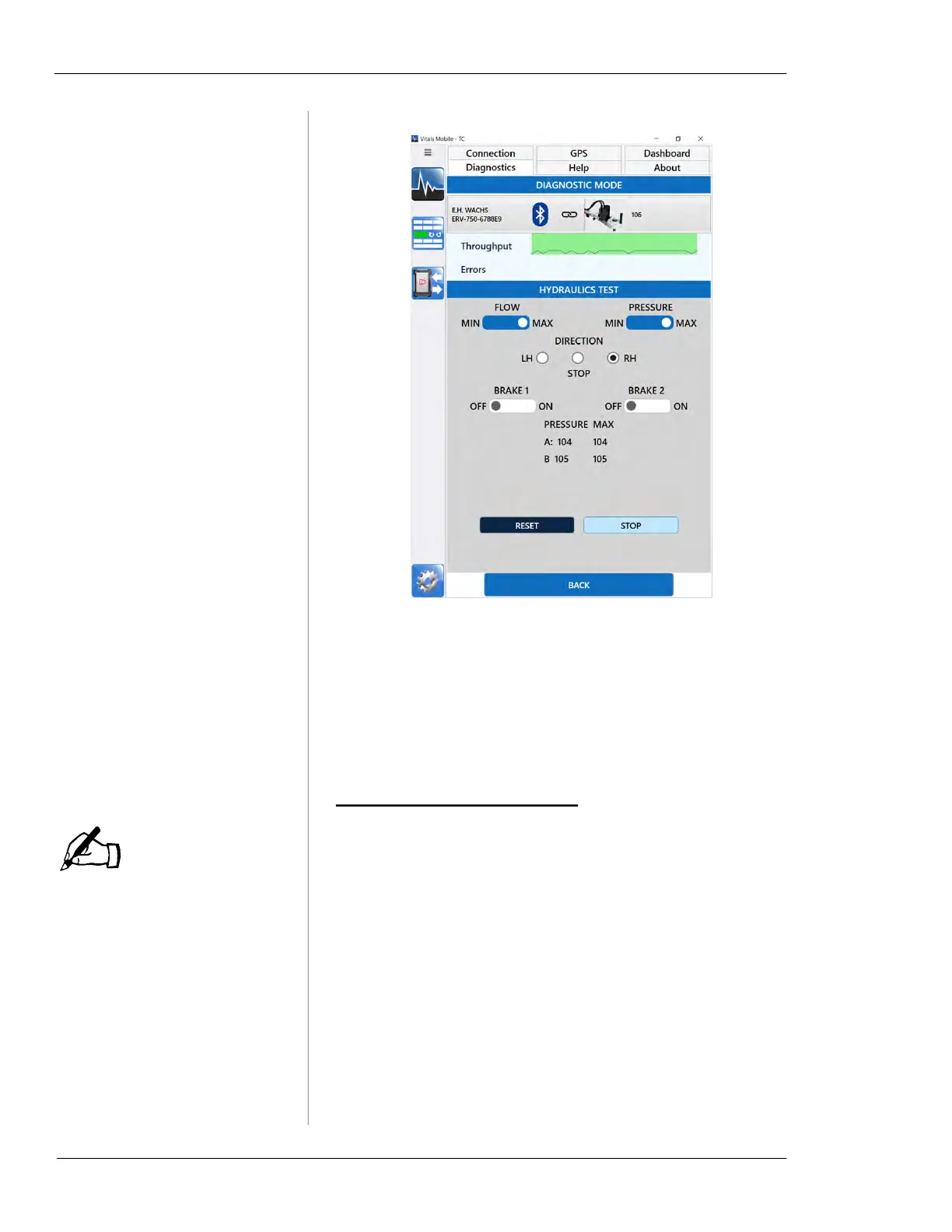

The status changes as the test is conducted. Press the
STOP button to end the test.
4.
If desired, you can change the test parameters and run
additional tests.
5.
To exit the hydraulics test, tap the Back button.
Transducer Zero Torque Error
Do NOT run the Hydraulics
Test while performing this
adjustment. The valve opera-
tor must be in the stopped
condition.
A transducer error may cause a Transducer Zero Torque error
message when you start the Hydraulics Test. To correct the
error, adjust the transducer potentiometer in the valve opera-
tor control box.
1.
Remove the 4 screws in the control box cover, and
take off the cover to access the control board.
NOTE
