CFW700 | 13
Installation and Connection
English

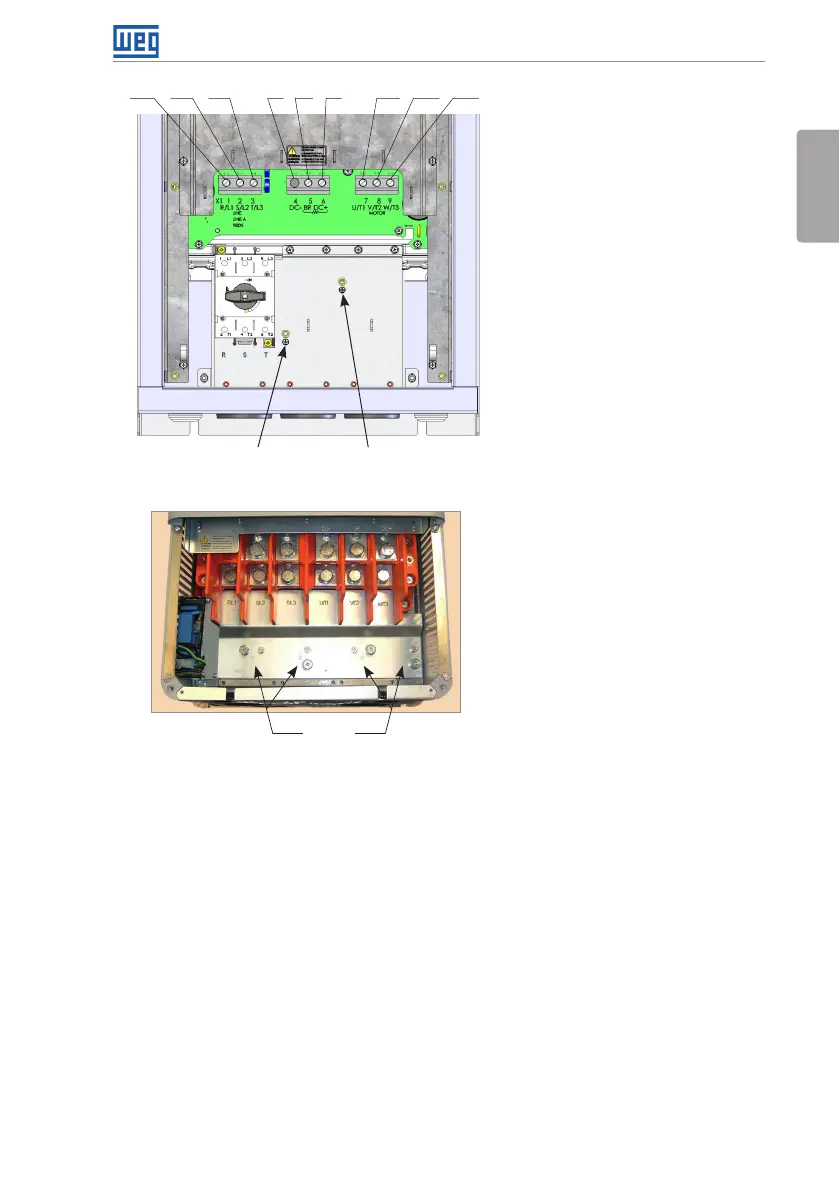

R/L1 S/L2 T/L3 DC- DC+ U/T1 V/T2 W/T3BR
Ground
Ground
(d) Frame size D with degree of protection IP55
R/L1, S/L2, T/L3: AC power supply.
U/T1, V/T2, W/T3: motor
connwwection.
DC+: this is the positive potential
terminal in the DC bus circuit.
BR: braking resistor connection.
DC-: this is the negative potential
terminal in the DC bus circuit.
Ground
(4xM8, 4xM5)
(e) Frame size E
