First Time Power-Up and Start-Up
5.2.2 Basic Application Menu
Step
Action/Display Indication
Step
Action/Display Indication
1
2
 Monitoring mode.
 Press the ENTER/MENU key to get into
the first level of the programming mode.
 The PARAM group is selected, press
the or keys to select the BASIC
group.
3 4
 Press ENTER/MENU when the group is
selected.
 In this moment the Basic Application
routine is initiated. If necessary, change
“P0100 – Acceleration Time” parameter.
 Press the or key to the next
parameter.
5 6
 If necessary, change “P0101 –
Deceleration Time”.
 Press the or key to the next
parameter.
 If necessary, change “P0133 – Minimum
Speed” parameter.
 Press the or key to the next
parameter.
7 8
 If necessary, change “P0134 – Maximum
Speed” parameter.
 Press the or key to the next
parameter.
 If necessary, change “P0135 – Max.
Output Current” parameter.
 Press the or key to the next
parameter.
9 10
 If necessary, change “P0136 – Manual
Torque Boost” parameter.
 Press the or key to the next
parameter.
 Press the BACK/ESC key to end the Basic
Application routine.
 Press the BACK/ESC again to go back to
the monitoring mode.

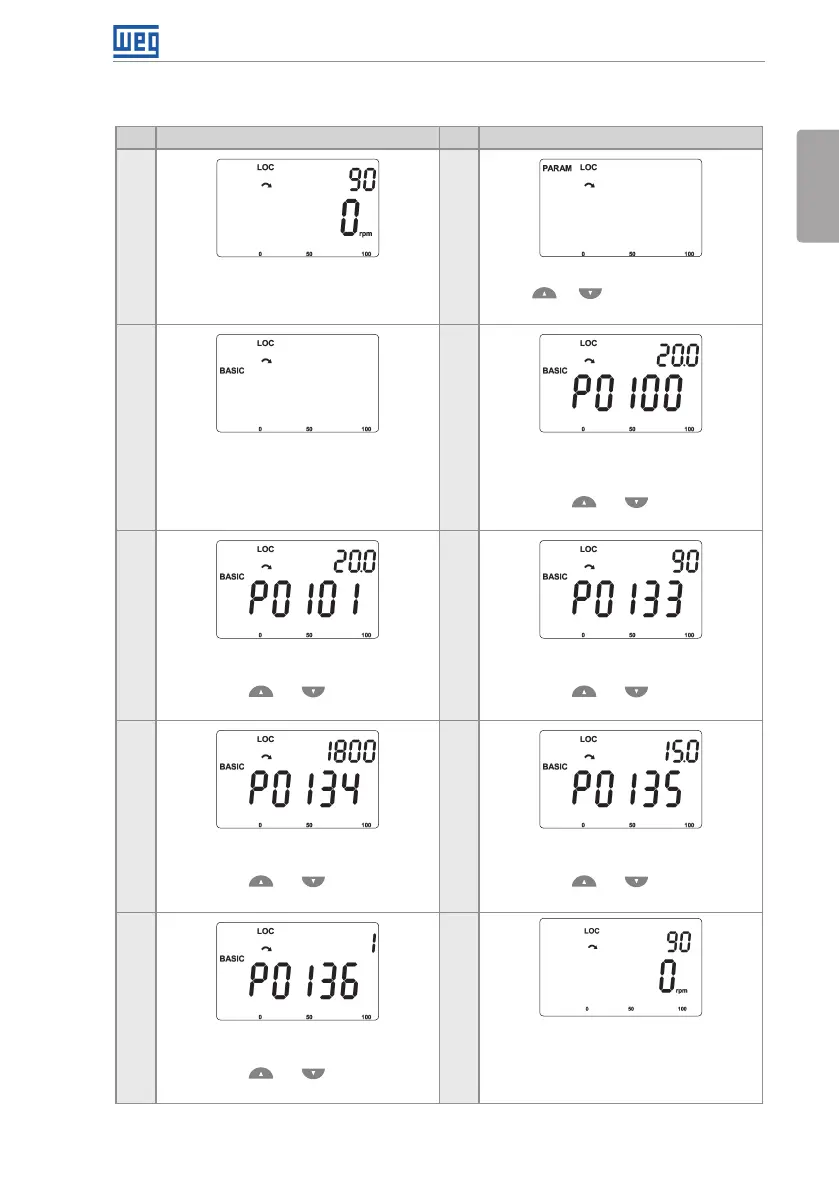

Figure 5.2: Basic application group
