First Time Power-Up and Start-Up
Step Action/Display Indication Step Action/Display Indication
11 12
 If necessary, change “P0398 – Motor
Service Factor” parameter. This change
will affect the current and the time of the
motor overload protection operation.
 Press the key to the next parameter.
 If necessary, change “P0400 – Motor
Rated Voltage” parameter. This change
corrects the output voltage by the factor
“x = P0400/P0296”.
 Press the key to the next parameter.
13 14
 If necessary, change “P0401 – Motor
Rated Current” parameter. This change
will affect P0156, P0157, P0158 and P0410.
 Press the key to the next parameter.
 If necessary, change “P0404 – Motor
Rated Power” parameter. This change
will affect P0410.
 Press the key to the next parameter.
15 16
 If necessary, change “P0403 – Motor
Rated Frequency” parameter. This
change will affect P0402.
 Press the key to the next parameter.
 If necessary, change “P0402 – Motor
Rated Speed”. This change will affect
P0122 to P0131, P0133, P0134, P0135,
P0182, P0208, P0288 and P0289.
 Press the key to the next parameter.
17 18
 If necessary, change “P0405 – Encoder
Pulse Number” according to the encoder
model.
 Press the key to the next parameter.
 If necessary, change “P0406 – Motor
Ventilation” parameter.
 Press the key to the next parameter.
 The parameters to come after selecting
P0406 may vary according to the type of
control set at P0202.
19 20
 If necessary, change “P0408 – Run Self-
Tuning” parameter.
 Press the key to the next parameter.
 Run the self-tuning when running in VVW
and vector modes.
 Press the BACK/ESC key to end the
oriented start-up routine.
 Press the BACK/ESC again to go back to
the monitoring mode.

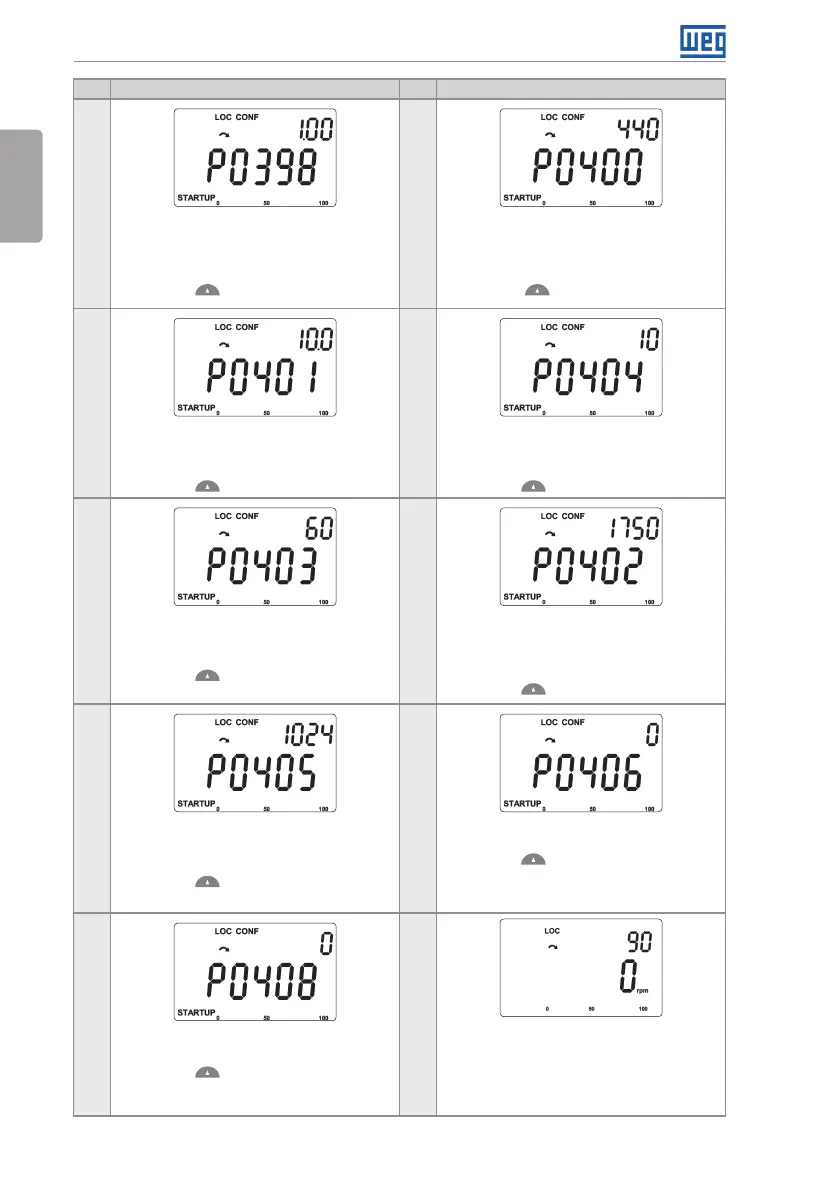

Figure 5.1: Oriented Start-up
