WEG SSW-06 User Manual

CHAPTER 6 - DETAILED PARAMETER DESCRIPTION
122
Range
[Factory Setting]
Parameter Unit Description / Notes
Table 6.38 - Braking methods selection
 There are three braking methods implemented in the Soft-Starter
SSW-06. These braking methods should be used only when fast
stops are necessary.

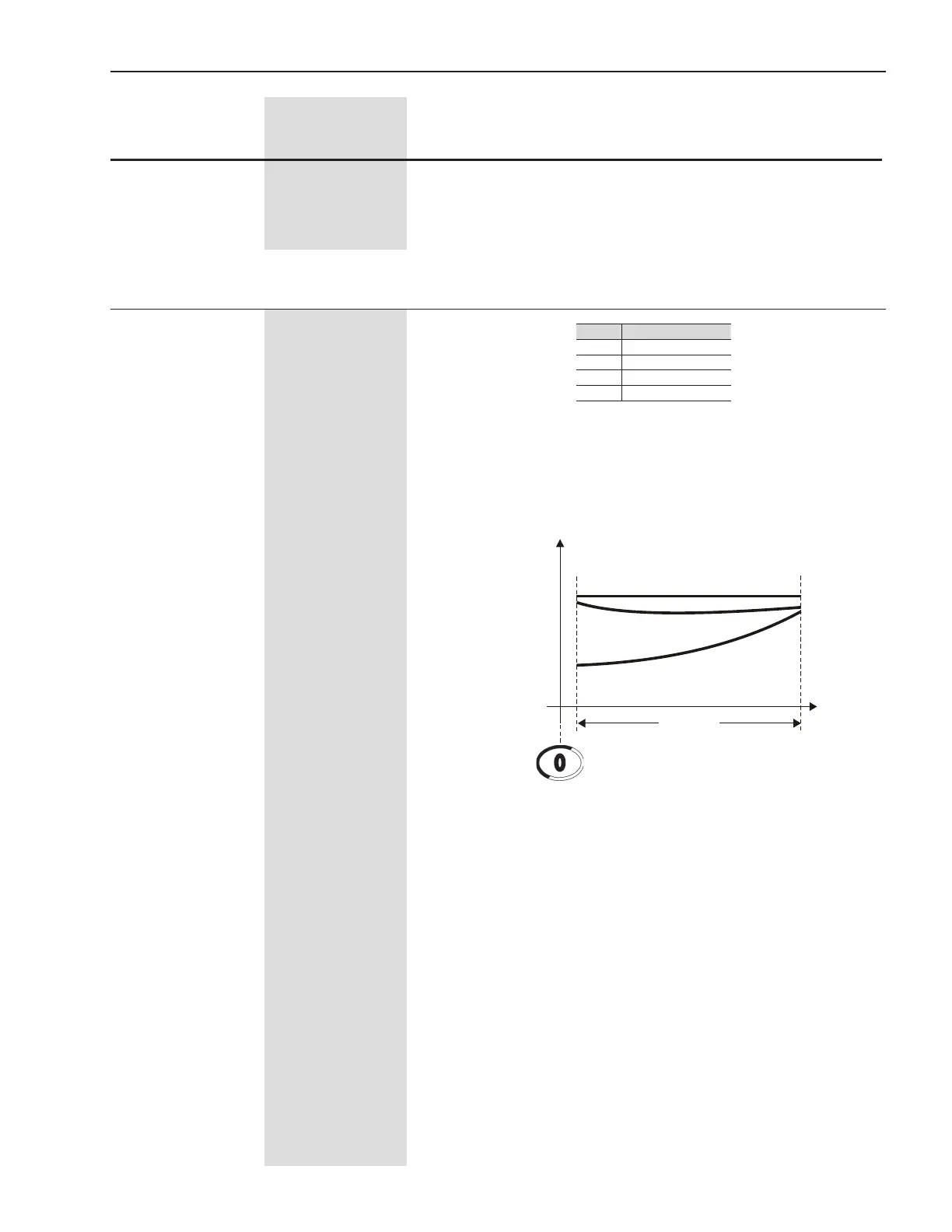

Figure 6.18 - Braking torque
“Reverse Braking”
Thisisane󰀩cientmethodtostopveryhighinertialoads.
 The motor will stop via AC level voltage in reverse direction until
near 20% of the nominal speed when Optimal Braking is applied to
stop the motor.
 The Reverse Braking AC level and Optimal Braking AC level are set
in P502.
 Two contactors are needed.
 It is compatible with the Soft-Starter SSW-06 inside delta motor
connection, except for two and eight pole motors.
P501
Stopped
Disable
Nominal
Speed
Braking
Torque
DC-Braking
Reverse Braking
Optimal Braking
P500
(1)
Braking Methods
0 to 3
[ 0=Inactive ]
-
 Set the Service Factor according to the motor nameplate.
 The current protections are based on the content of this parameter.
P406
(1)
0 to 1.50
Service Factor [ 1.00 ]
0.01
6.6 SPECIALFUNCTIONPARAMETERS-P500toP599
P500 Action
0 Inactive
1 Reverse Braking
2 Optimal Braking
3 DC-Braking
