CHAPTER 3 - INSTALLATION AND CONNECTION
36

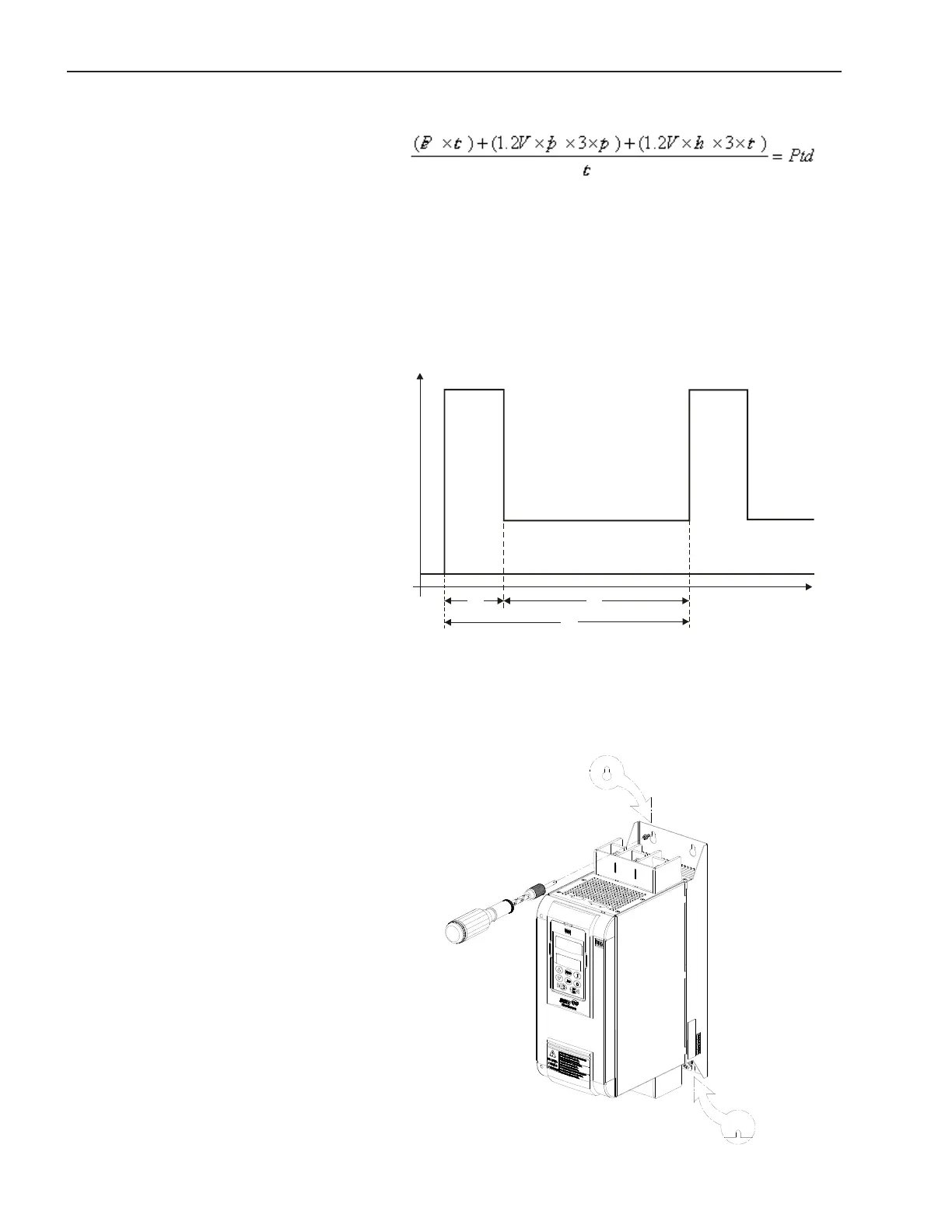

The total power losses can be determined through the equation below:
where:
Pe = power losses at the electronics (W)
tc = working cycle time (s)
Ip = start current (A)
tp = start time (s)
In = current at nominal duty (A), with By-pass In=0
tr = nominal duty time (Full Voltage) (s)
Ptd = total power losses (W)
Figure 3.3 - Soft-Starter SSW-06 working cycle for
power loss determination
Thegure3.4showstheinstallationoftheSoft-StarterSSW-06on
a mounting plate.
3.1.3.2 Mounting on a Surface
Figure 3.4 - Mounting procedures for the SSW-06 on a at surface
P(W)
I(A)
Ip
0
tp
tr
tc
Pe
In
t(s)
