177
CHAPTER 9 - OPTIONS AND ACCESSORIES
WEG Part Number: 10051677.
Converter RS-232 to RS-485 with galvanic isolation.
Module outside the product, connected to the RS-232 interface
of the SSW-06.
For more details, please refer to the MIW-02 Manual.
9.2.2 Optional Module MIW-02

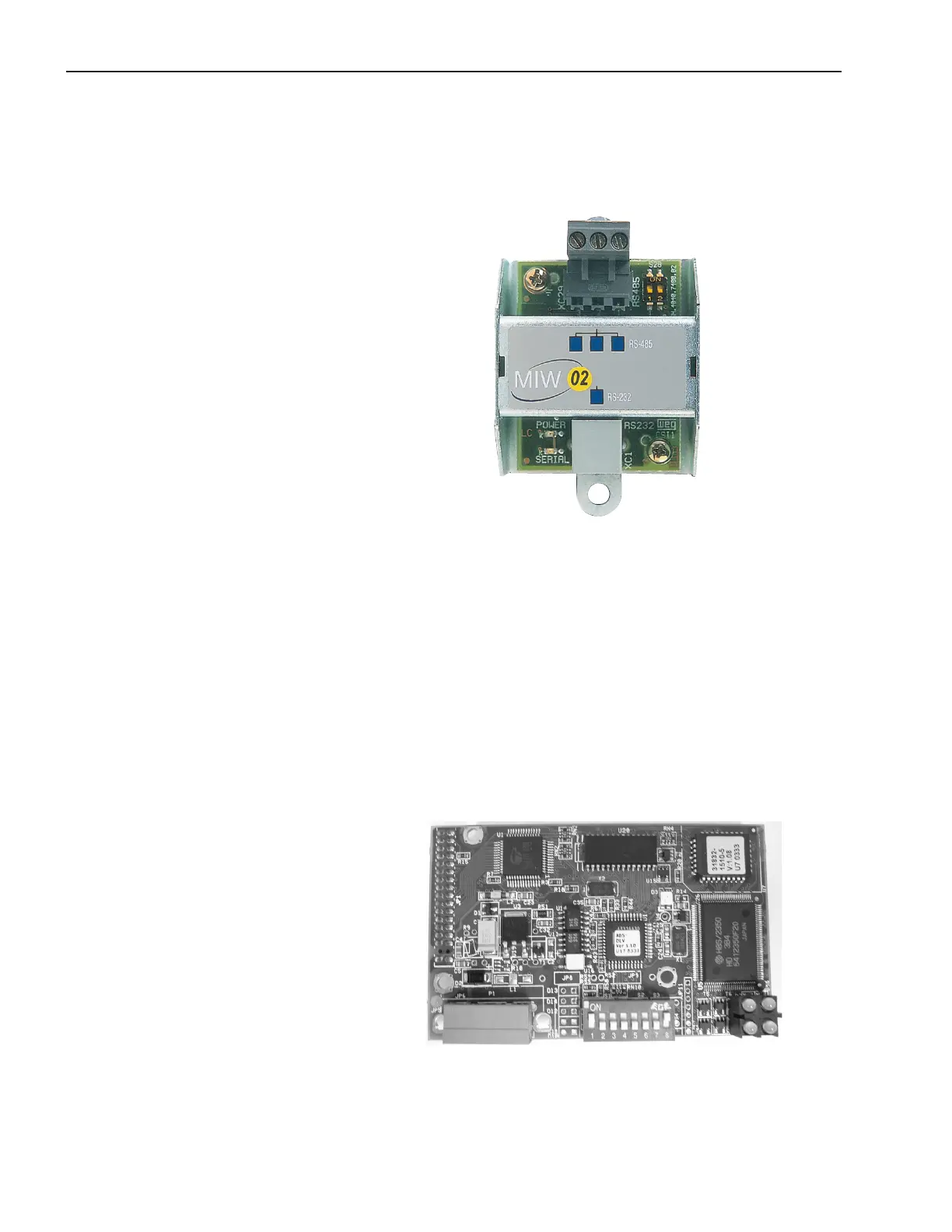

Figure 9.6 - Optional module MIW-02
ToenabletheSoft-StarterSSW-06forProbusDPorDeviceNet
communication, the use of a communication board is required.
This communication board is available as an optional kit.
WEG Part Number: 10935567.
The communication protocol DeviceNet has been developed
with the purpose to provide a fast, cyclic and deterministic
communication between the master and slaves.
For more details, please refer to the Fieldbus Communication
Manual.
9.3 FIELDBUS
COMMUNICATION KITS
9.3.1 Fieldbus DeviceNet
Communication Kit
(KFB-DN)
Figure 9.7 - Board of the optional DeviceNet kit
