WEG SSW-06 User Manual

CHAPTER 3 - INSTALLATION AND CONNECTION
55
EMI – Electromagnetic interference:
The Soft-Starter SSW-06 is developed to be used in industrial systems
(Class A) as per Norm EN60947-4-2.
It’s necessary to have a distance of 0.25m (10in) between the Sof-
t-StarterSSW-06controlcablesandmotorcables.Example:PLC
wiring, temperature controllers, thermocouple cables, etc.
Grounding the motor frame:
Always ground the motor frame. Ground the motor in the panel where
the Soft-Starter SSW-06 is installed. The Soft-Starter SSW-06 output
wiring to the motor must be laid separately from the input wiring, as
well as from the control and signal cables.

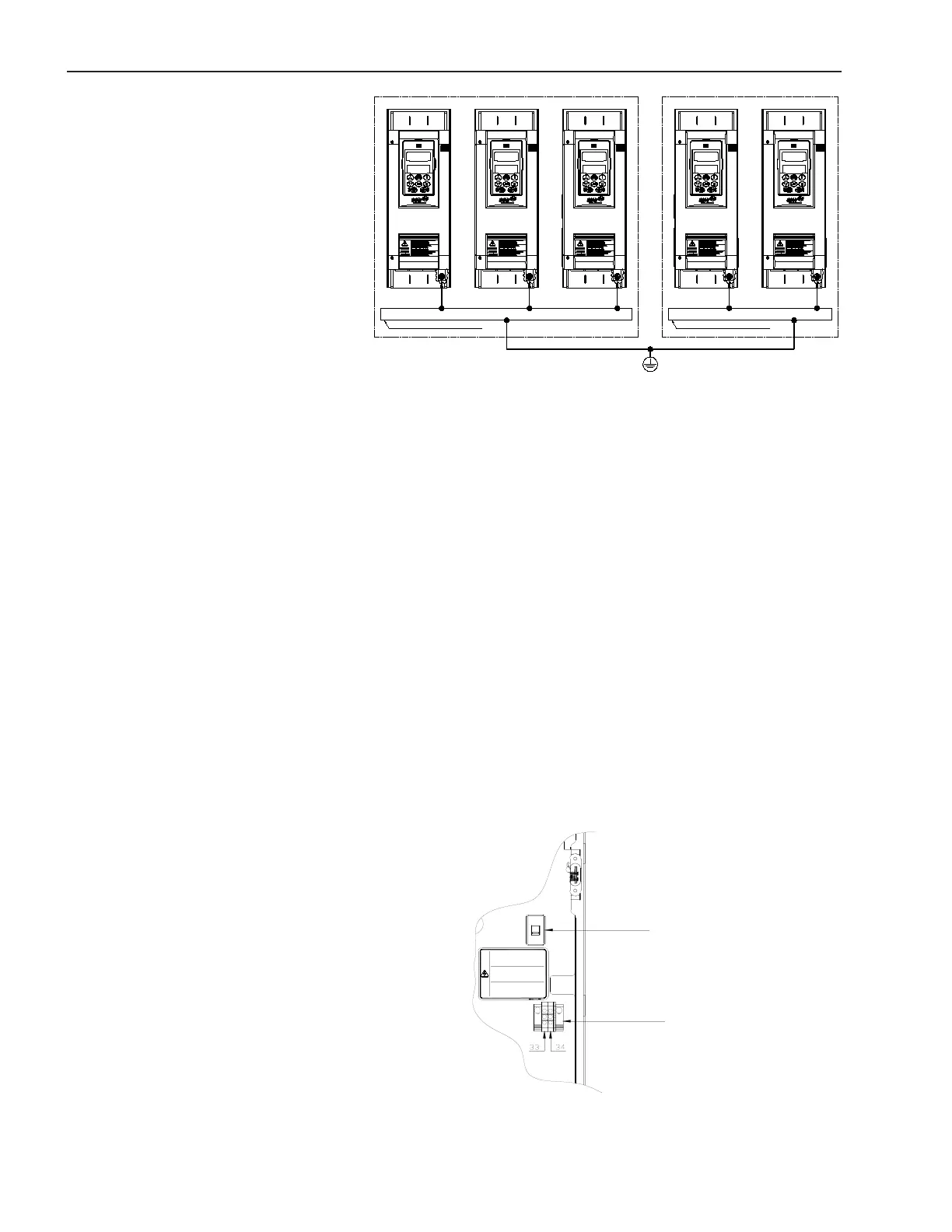

Figure 3.14 - Grounding connections for more than one
Soft-Starter SSW-06
Grounding bar
Internal to the Panel
Grounding bar
Internal to the Panel
3.2.7 Fan Connections
Available in models greater than 255A.
The nominal voltage of the fans can be selected in models from 255A
to 820A.
Formodelsfrom950Ato1400Athevoltageselectionisxed,accor-
dingtotheproductspecication,refertoitem2.4.
Figure 3.15 - Selection of the Fan Voltage
X1E
ALIM EN TAÇ ÃO
VEN TILAD O R
SELEÇ ÃO
DE TEN S ÃO
110/220V
ATENÇÃO!
SELEC I ONE A T ENSÃ O DOS V ENTI L ADORES
DEACORDOCOMA TENSÃOAPLI CADAAOS
BORNES X1:33 E X1:34
ATTENTION!
SELECT THEF AN VOLTAGEI N ACCORDANCE
WITH THE VOLTAGE APPL IED TO THE 
TERMINALSX1:33ANDX1:34
ATENCION!
SELEC CI ONAR LA TENS I ON DE LOS VENTI L AD ORES
DE AC UERDO CON  LA  TENS I ON APL I CA DA A  LOS
BORNES X1:33 Y X1:34
!
Voltage Selection
110/220V
Fan
Fan Power Supply
ConnectorX1Epins33and34.Moredetailsseegure3.16.
