174
CHAPTER 9
9.1 REMOTE KEYPAD
ANDCABLES
OPTIONS AND ACCESSORIES
This chapter describes the options and accessories that can be used
with the Soft-Starter SSW-06. These options and accessories are:
Remote keypad and cables.
The keypad can be assembled either on the Soft-Starter or remo-
tely. If using the remote keypad, the frame KMR-SSW-06 (frame for
remote mounting) can be used. The advantage of using the frame
is the appearance (aesthetic) of the remote keypad. The maximum
cable length is 5m (16.40 ft). To acquire cables from WEG, see the
following models.
CableLength WEG Part N
o
1m (3.28ft) 10050237
2m (6.56ft) 10050235
3m (9.84ft) 10050234
5m (16.40ft) 10050233
Table 9.1 - Connection cables CAB-HMI SSW-06-X
The keypad cable must be installed separately from the power cables,
following the same recommendations as for the CCS6 control board
(Refer to Section 3.2.8).
Forassembling,seedetailsingure9.2and9.3.

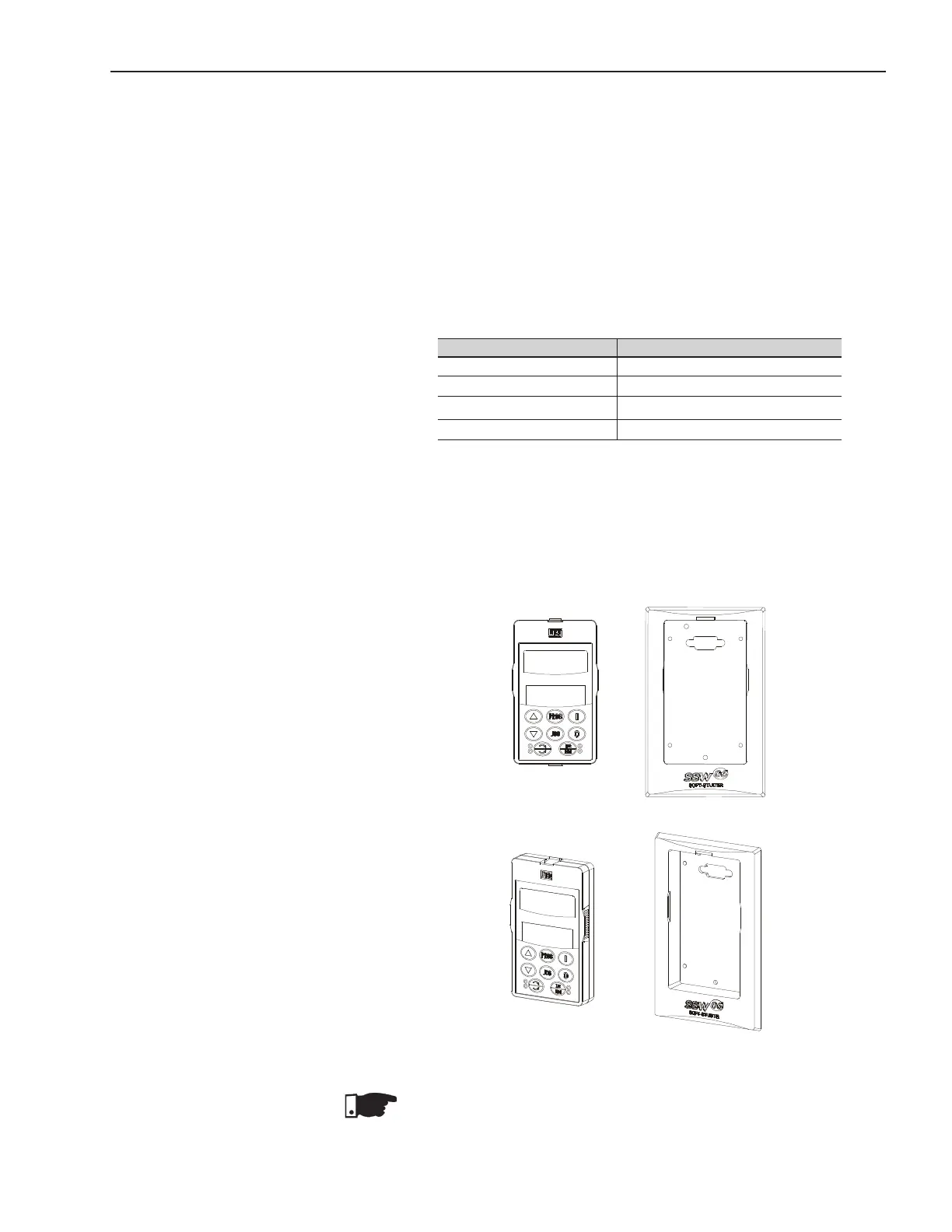

Figure 9.1 - Keypad and remote keypad frame for panel installation
NOTE!
Due to voltage drops in the Keypad cable, do not use cables longer
than 5m (16.40ft).
