WEG SSW-06 User Manual

CHAPTER 3 - INSTALLATION AND CONNECTION
38
Thepowerconnectionterminalscanbeofdi󰀨erentsizesandcon-
gurations, depending on the Soft-Starter SSW-06 model as shown
ingures3.8and3.9.
Terminals:
R/1L1,S/3L2andT/5L3:ACsupplyline
U / 2T1, V / 4T2 and W / 6T3: Motor connection.
3.2.1 Power Terminals

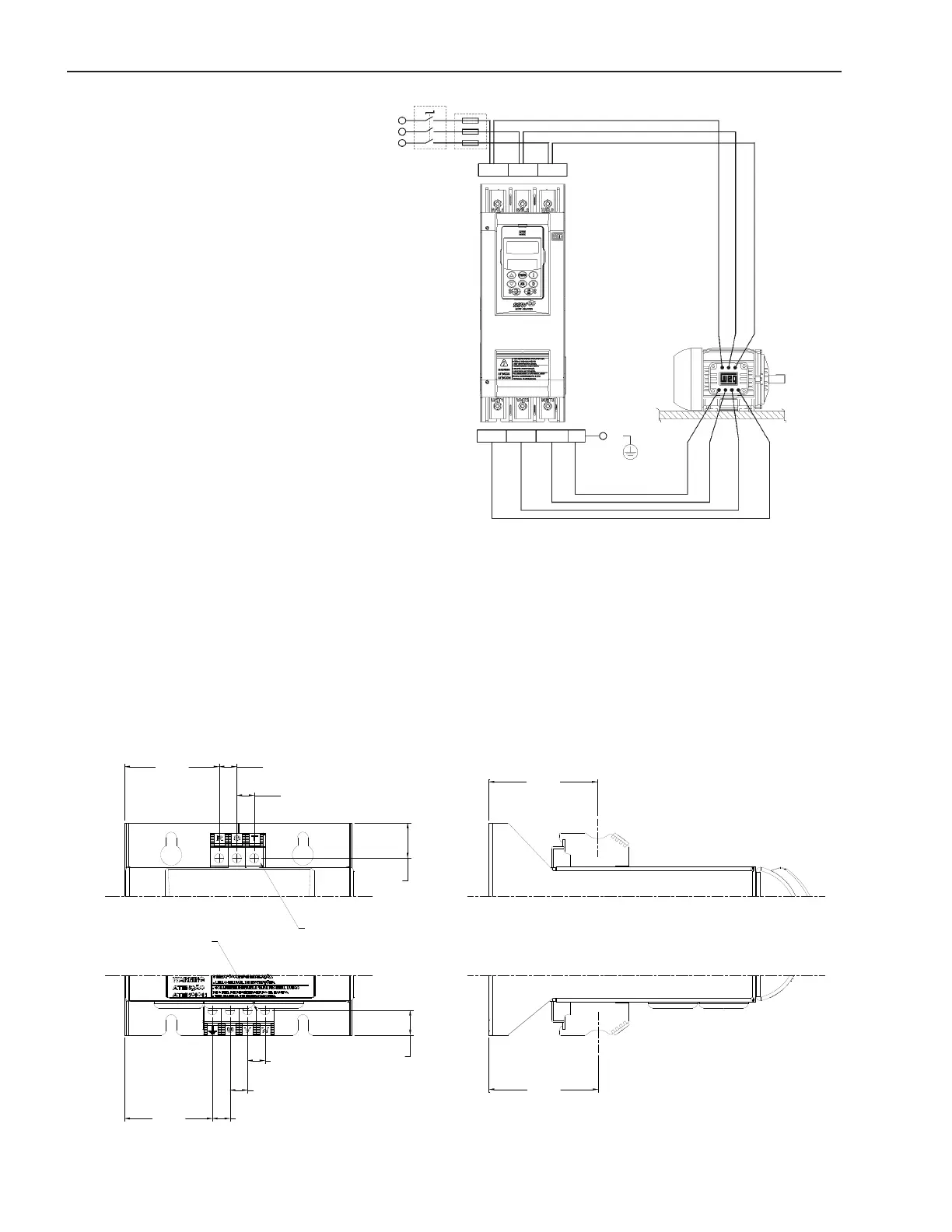

Figure 3.7 - Power/Grounding connections for inside delta motor connection
R/1L1
S/3L2
T/5L3
Circuit-breaker
Line
Fuses
R
S
T
a) Models: 10A to 30A
62
(2.44)
54
(2.12)
10(0.39)
20
(0.79)
50
(1.96)
10(0.39)
10(0.39)
10(0.39)
10(0.39)
14
(0.55)
62
(2.44)
INPUT TERMINAL
POWER
OUTPUT TERMINAL
POWER
Figure 3.8 a) - Power Terminals
U/2T1 W/6T3
PE
V/4T2
PE
