NOTES!
1) If it uses this digital inputs and outputs expansion card it cannot
beusedtheeldbuscommunicationboards(kitsKFB).
2) This expansion board needs an external power supply to digital
inputs and outputs (24Vdc/150mA).
9.5.2 PT100 Inputs Kit
(K-PT100)
 WEG Part Number: 11479651.
 Optionalboard,withvePT100inputs,galvanicallyisolated,tobe
used in the measurement of the motor temperature.
 Connected internally in the product (connector XC6 of the control
board CCS6).

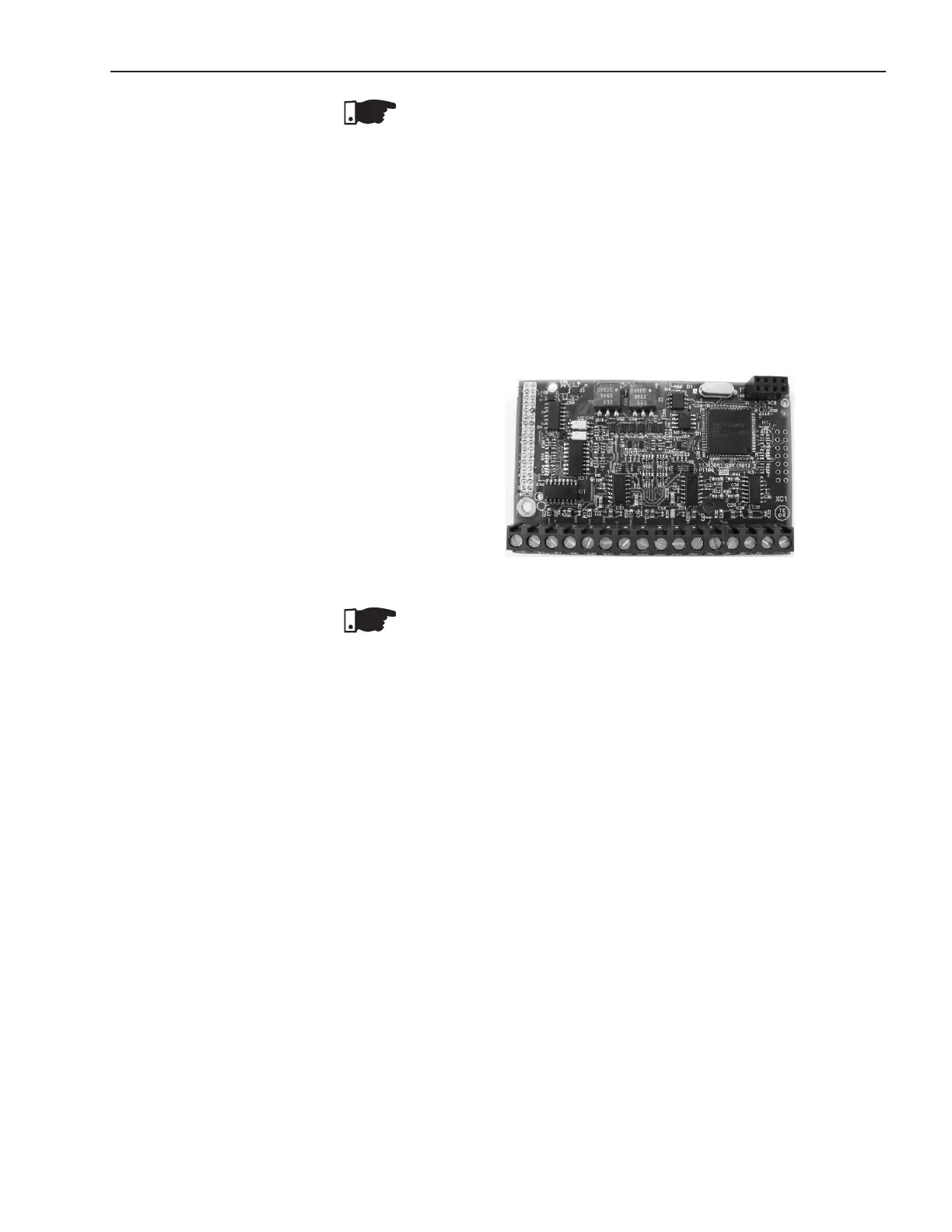

Figure 9.14 - PT100 inputs optional board
NOTE!
If it uses this motor temperature inputs board, than cannot be used
theeldbus communication board (kits KFB) ordigital inputs and
outputs expansion board (K-IOE).
 The Soft-Starter SSW-06 has three current transforms to reading,
indication and protection of the motor, internally in the product.
 If it use, an external by-pass contactor, has necessity of placing
the current transforms for external Soft-Starter SSW-06 side, to
keep the same functions.
9.6 EXTERNAL
CURRENT
ACQUISITION
