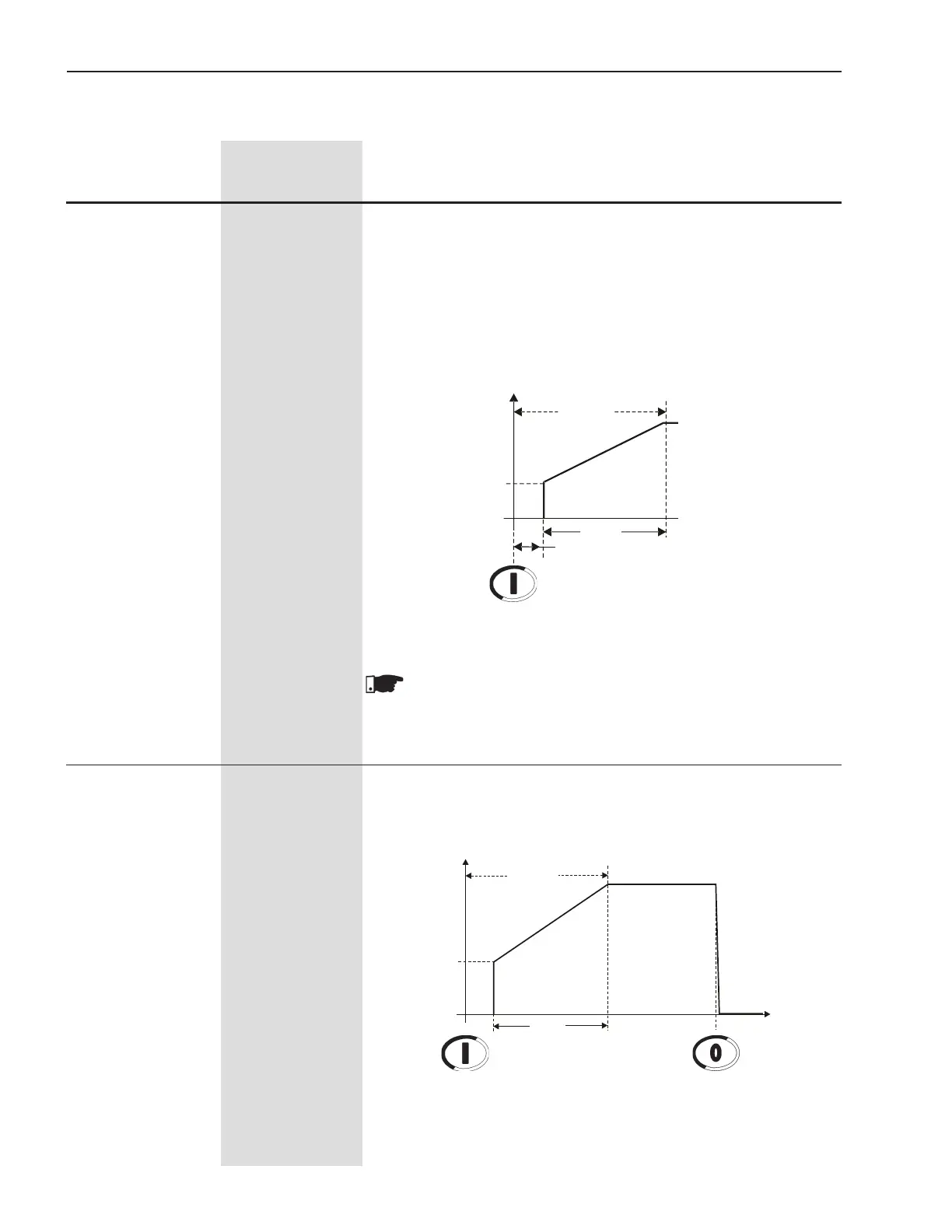

WEG SSW-06 User Manual

CHAPTER 6 - DETAILED PARAMETER DESCRIPTION
97
Range
[Factory Setting]
Parameter Unit Description / Notes
6.2 REGULATIONPARAMETERS-P100toP199
 Used in the control by Voltage Ramp and Pump Controls, P202=0
or 2.
 Sets the initial value of the nominal voltage (%Un) that will be applied
tothemotoraccordingtogure6.1.
 For more details about the programming and use, see Voltage Ramp
and Pump Control in P202.
 The initial voltage is 0.5s after the Soft-Starter SSW-06 receives the
command to start the motor. This is the waiting time for the network
isolation contactor to start the power supply.
P101
Initial Voltage
25 to 90
[ 30 ]
1% Un of the Motor
Start
P102
0.5s
0
P101
U(V)
Enable
Figure 6.1 - Initial time for motor start
NOTE!
When another control type is selected, not the Voltage Ramp or
Pump Control, the initial voltage will be attenuated due to the
limit imposed by the control.
P102 1 to 999
Acceleration [ 20 ]
Ramp Time 1s
 When the Soft-Starter SSW-06 has been programmed to Voltage
Ramp Control or Pump Control, this will be the ramp time of the
voltageincrementasshowningure6.2.
Figure 6.2 - Acceleration ramp by Voltage Ramp
Start
P102
0
P101
U(V)
100%Un
t(s)
DisableEnable Voltage Ramp
