CHAPTER 4 - KEYPAD OPERATION
72
SoftStarter
Ready
Soft-Starter Status:
Soft-Starter is "ready" to be enabled
Soft-Starter with fault
ParametersP001toP099areReadOnlyParameters.Therstpa-
rameter to be displayed when the Soft-Starter is powered-up, can be
programmed at P205.
The user is able to visualize some Read Only Parameters by pressing
the key.

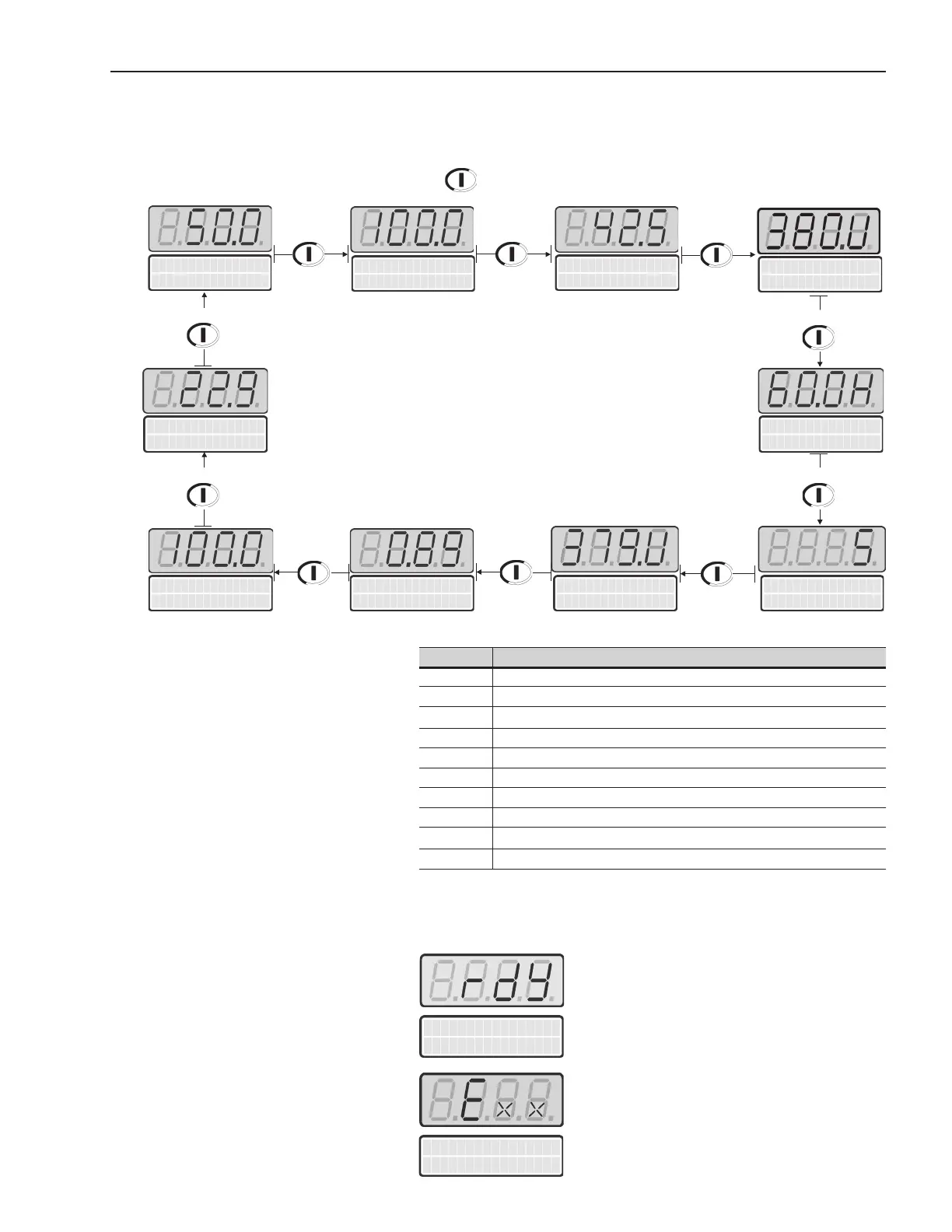

4.2.2 Keypad Display - Signalling
Indications
 P205 Parametertobedisplayedrst
0 P001 (Soft-Starter current %In of the Soft-Starter)
1 P002 (Motor current %In of the Motor)
2 P003 (Motor current)
 3 P004(Linevoltage)
 4 P005(LineFrequency)
5 P006 (Soft-Starter Status)
6 P007 (Output Voltage)
7 P008 (Power Factor)
8 P009 (Motor Torque % Tn of the Motor)
9 P010 (Output Power)
Table 4.1 - Parameter initially shown on the displays
Motor Current
P002= 100.0%
Motor Current
P003= 42.5A
Power Factor
P008= 0.89
Motor Torque
P009= 100.0%
Output Voltage
P007= 379V
Press
Press Press
Line Voltage
P004= 380V
Press
Press
Press
SSW Current
P001= 50.0%
SSW Status
P006= Bypass
Line Frequency
P005= 60.0Hz
Press
Press
Output Power
P010= 22.9kW
Press
Press
Fault description
